Model
Tappan 95-1967-57-04
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1967-57-04Refrigerator, Top Mount
6 diagrams159 parts
Parts Sections (6)
Diagram

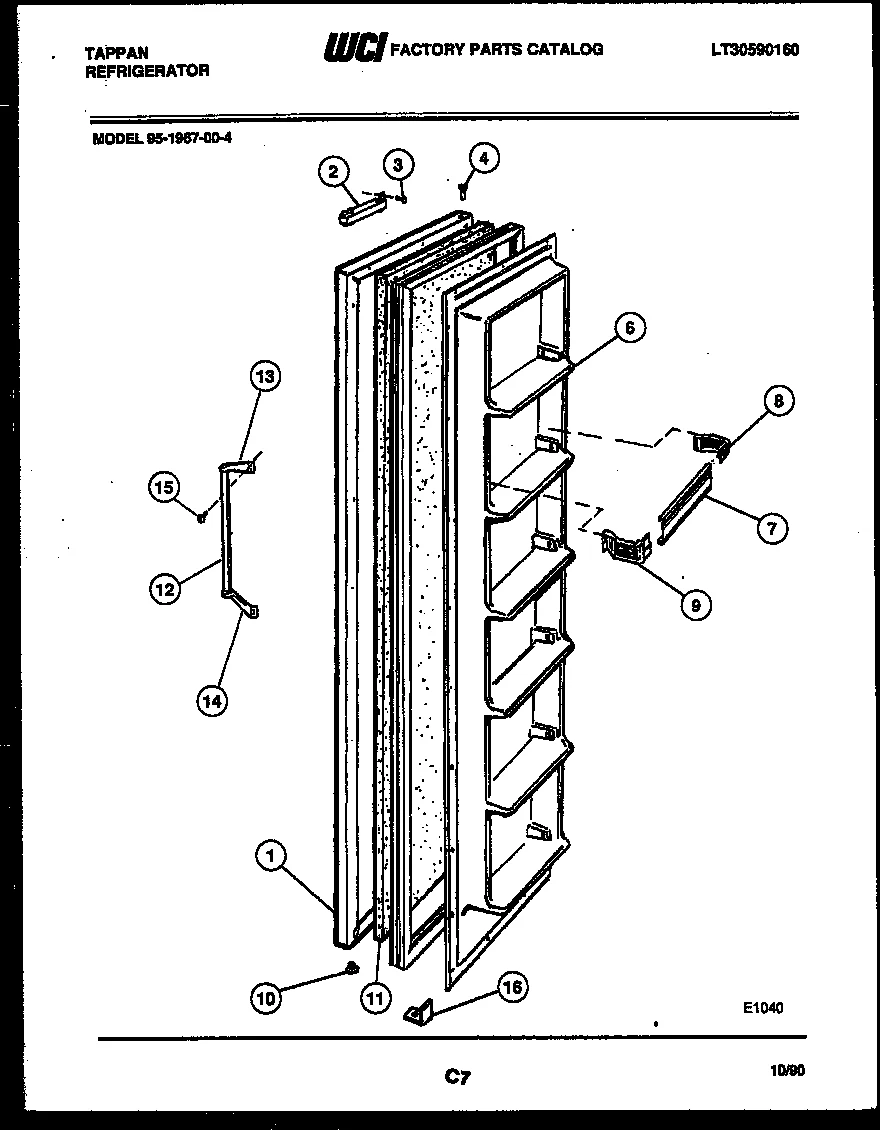

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3001718 FREEZER DOOR - AVOCADO | - |
| 2 |  | 5303200272NLA DOOR CLOSER | Discontinued |
| 3 |  | 5303001020replaces 3001020 SCREW-DOOR CLOSER (NON-ILLUSTRATED) | - |
| 4 | | BEARING-HINGE UPPER (2) | - |
| 4A | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 5 | – | 5303200474 GASKET-FRZR DOOR, MAGNETIC | - |
| 6 | – | 5303016719 DOOR PANEL-INNER | - |
| 6A |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 7 | | RACK-REFRIGERATOR DOOR (2) | - |
| 8 | | SUPPORT RS (6) | - |
| 9 | | SUPPORT LS (6) | - |
| 10 | – | 5315230801 PLUG - DOOR BOTTOM (NON-ILLUSTRATED) | - |
| 11 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
| 12 | – | G175666-20 GRIP-HANDLE | - |
| 13 | | END - HANDLE TOP | - |
| 14 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 15 | | SCREW | - |
| 16 | | BUMPER-LIGHT SWITCH (NON-ILLUSTRATED) | $1.83 RepairClinic |
| *40326 | | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
