Model
Tappan 95-1970-45-00
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1970-45-00Refrigerator, Top Mount
4 diagrams159 parts
Parts Sections (4)
Diagram

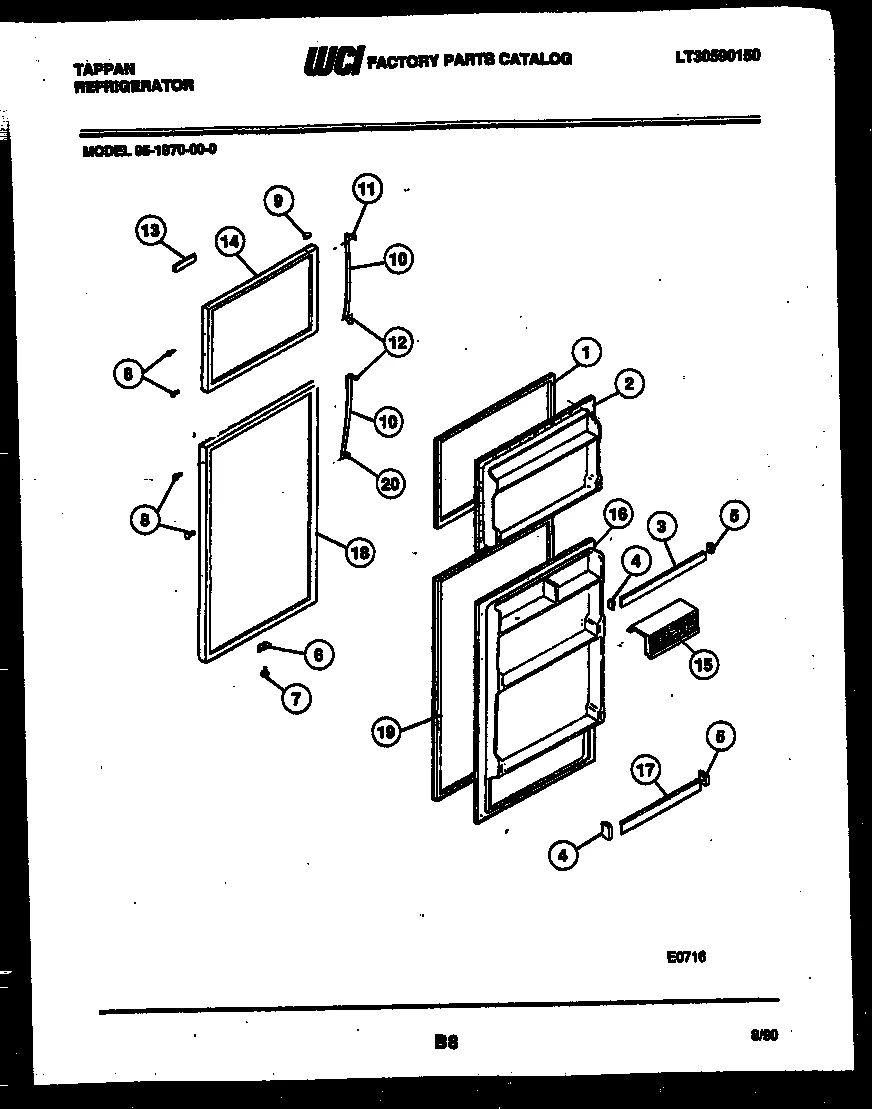

DOOR PARTS
Parts in DOOR PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FREEZER DOOR, MAGNETIC | Discontinued |
| 2 | – | 3001485 PANEL-INNER DOOR, FRZR | - |
| 2A |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 3 | – | 5303001484 RACK-DOOR (2) | - |
| 4 |  | 5303007297replaces 5303001411 SUPPORT-DOOR RACK, LH, (4) | $24.36 RepairClinic |
| 5 | – | 5303001410 SUPPORT-DOOR RACK, RH, (4) | - |
| 6 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 7 | | SCREW | - |
| 8 | – | 5308000178 PLUG-BUTTON, COFFEE, HANDLE/DR STOP | - |
| 9 | – | 5303001657 PLUG-BUTTON, COFFEE, HINGE BRG HOLE | - |
| 10 | – | 3206063 HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 11 |  | HANDLE END TOP | - |
| 12 |  | END-HANDLE BOTTOM | - |
| 12A | | SCREW | - |
| 13 | – | 5317116101 FRAME-NAMEPLATE | - |
| 13A | – | 3001024 LABEL-NAMEPLATE (NON-ILLUSTRATED) | - |
| 13B | | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM / NAMEPLATE, DOUBLE FACED (NON-ILLUSTRATED) | - |
| 14 | – | G178690-10 PANEL-OUTER FRZR (COFFEE) | - |
| 14A | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 15 | – | 5303001415 DOOR COMPARTMENT (2) | - |
| 16 | – | 5318539701 PANEL-INNER DOOR, REFR | - |
| 16A | | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 17 | – | 5303001418 RACK-REFR DOOR-TOP | - |
| 18 | – | G178694-10 PANEL REFRIGERATOR-COFFEE | - |
| 18A | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 19 | | 5308015544NLA GASKET-REFR DOOR, BEIGE, MAGNETIC | Discontinued |
| 20 | – | 5300179801 HANDLE-END BOTTOM | - |
| *38496 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
