Model
Tappan 95-1971-00-00
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1971-00-00Refrigerator, Top Mount
6 diagrams156 parts
Parts Sections (6)

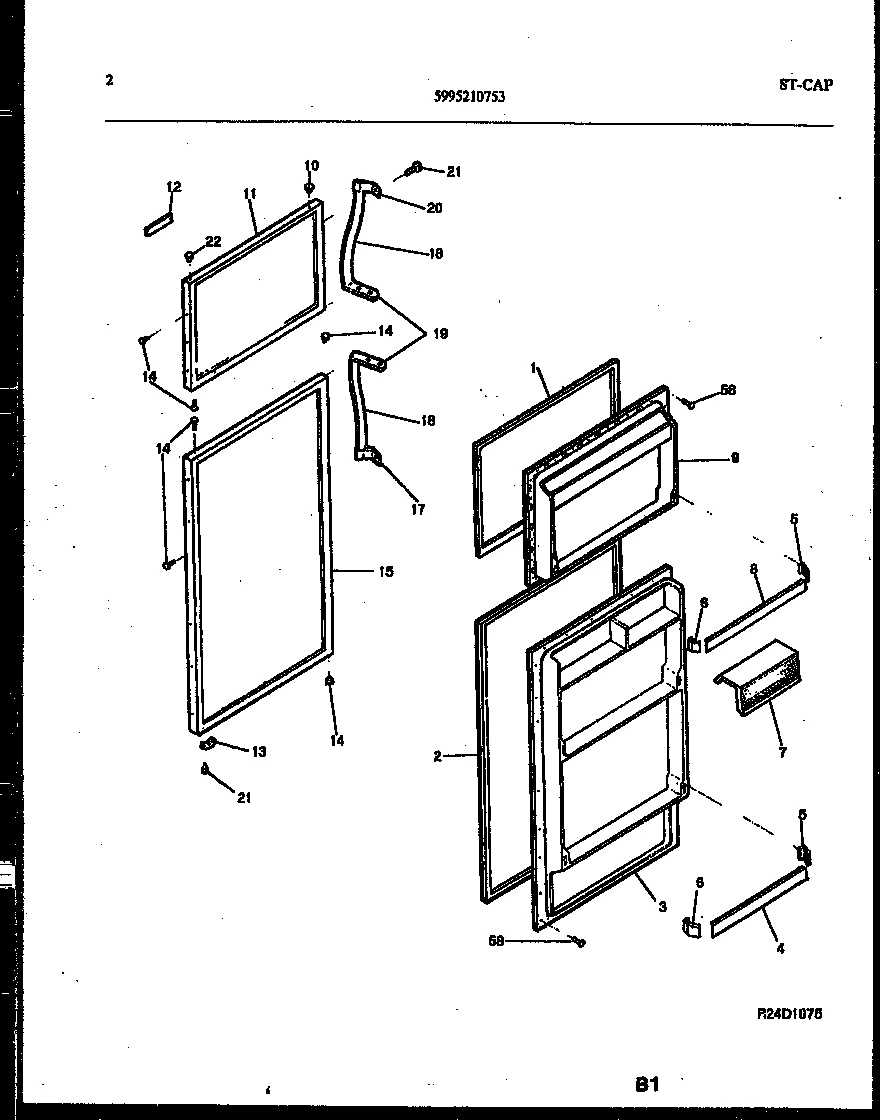

Diagram
DOOR PARTS
Parts in DOOR PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FREEZER DOOR, MAGNETIC | Discontinued |
| 2 | | 5308015544NLA GASKET-REFR DOOR, BEIGE, MAGNETIC | Discontinued |
| 3 | – | 5318539701 PANEL-INNER DOOR, REFR | - |
| 4 | – | 5303001418 RACK-REFR DOOR-TOP | - |
| 5 | – | 5303001410 SUPPORT-DOOR RACK, RH, (4) | - |
| 6 |  | 5303007297replaces 5303001411 SUPPORT-DOOR RACK, LH, (4) | $24.36 RepairClinic |
| 7 | – | 5303001415 DOOR COMPARTMENT (2) | - |
| 8 | – | 5303001484 RACK-DOOR (2) | - |
| 9 | – | 3001485 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 5300178690 PANEL-OUTER FRZR (WHITE) | - |
| 12 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 12A | – | 3001024 LABEL-NAMEPLATE (NON-ILLUSTRATED) | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | | REFRIGERATOR PANEL - WHITE | - |
| 17 |  | HANDLE END TOP | - |
| 18 | – | 3206063 HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 19 |  | END-HANDLE BOTTOM | - |
| 20 |  | BOTTOM HANDLE END CAP | - |
| 21 | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *56367 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
