Model
Tappan 95-1982-23-00
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1982-23-00Refrigerator, Top Mount
6 diagrams173 parts
Parts Sections (6)
Diagram

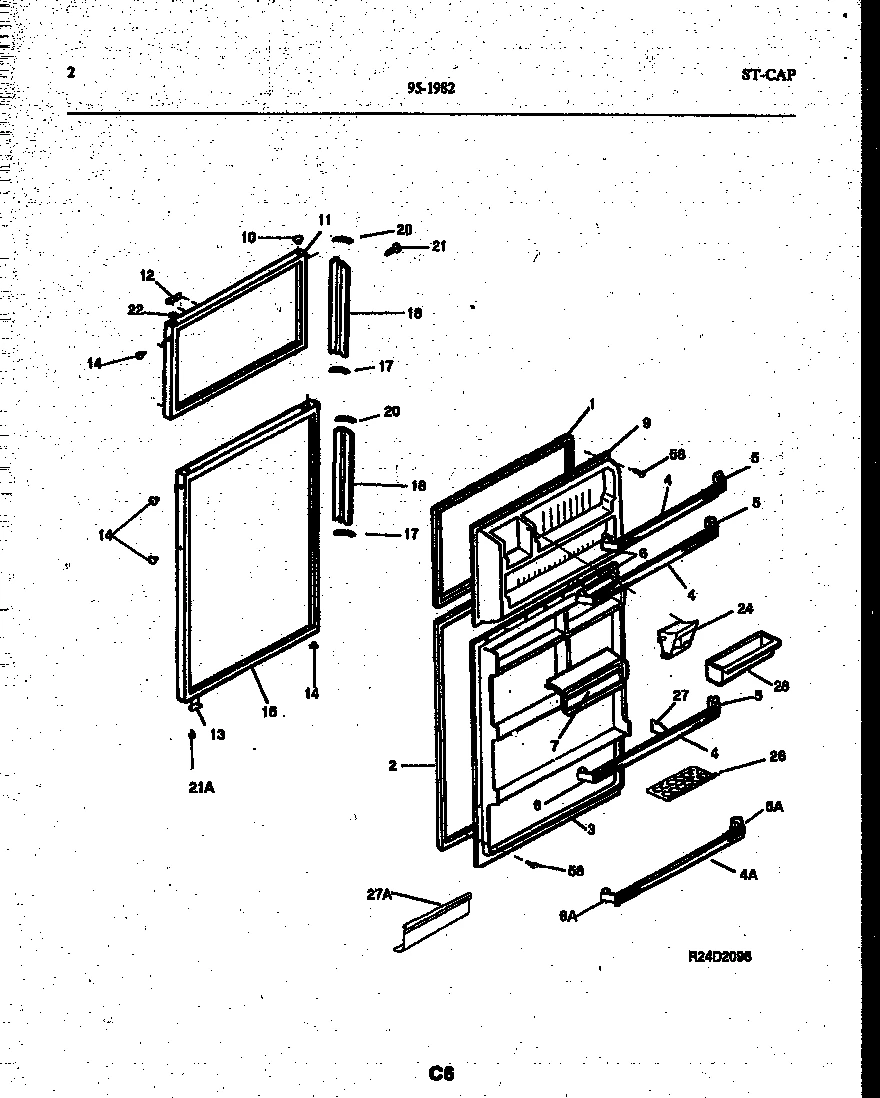

DOOR PARTS
Parts in DOOR PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303018791NLA GASKET-FRZR DOOR, MAGNETIC, WHITE | Discontinued |
| 2 |  | 218730609replaces 5303018792 GASKET-REFR DOOR, MAGNETIC, WHITE | - |
| 3 | – | 5303286017 PANEL-INNER DOOR, REFR | - |
| 4 |  | RACK-DOOR, NARROW, (3) | - |
| 4A |  | 215366002replaces 5303286103 RACK-DOOR, WIDE | $30.97 Part Advantage |
| 5 |  | 5317828701NLA SUPPORT-DOOR RACK, RH, (3) | Discontinued |
| 5A |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 6 |  | SUPPORT-DOOR RACK, LH, (3) | - |
| 6A | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 7 | – | 5303285973 DOOR-DAIRY, (2) | - |
| 9 | – | 3202033 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5308009933 PANEL-FRZR DOOR, ALMOND | - |
| 12 | – | 215134402 LABEL-NAMEPLATE, ALMD/GRAY LTRS | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 3916036 PANEL-REFR DOOR, ALMOND | - |
| 17 | | 5308010238NLA END CAP-BOTTOM (2) | Discontinued |
| 18 | – | 215081811 HANDLE-DOOR, 16.69`` LONG, ALMOND, W/ TRIM, END CAPS | - |
| 20 | | CAP-HANDLE END (2) | - |
| 21 | | SCREW, HANDLE MOUNTING, 8 CR TRUSS HEAD, 10(D) X 1/2 | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 24 | – | 3203047 DISPENSER-JUICE CAN,WHITE | - |
| 26 |  | 215817806replaces 5303284457 TRAY-EGG, WATER CLEAR | $10.02 Parts Dr |
| 27 | – | 5303211819 SNUGGER-DOOR RACK, ``PADDLE TYPE``, WATER CLEAR | - |
| 27A | – | 3206307 RETAINER-BOTTLE (NON-ILLUSTRATED) | - |
| 28 | | BIN-UTILITY, WHITE | - |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *70187 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
