Model
Tappan 95-1991-00-00
Refrigerator, Top Mount
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-1991-00-00Refrigerator, Top Mount
8 diagrams181 parts
Parts Sections (8)
Diagram

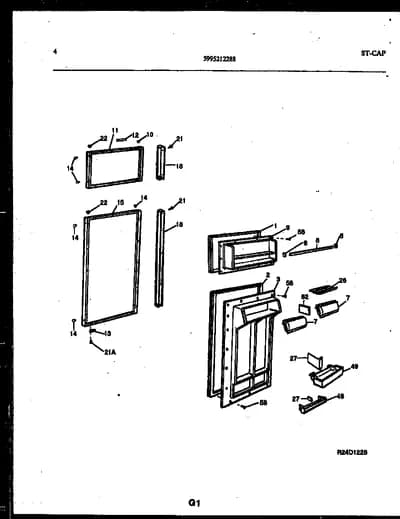

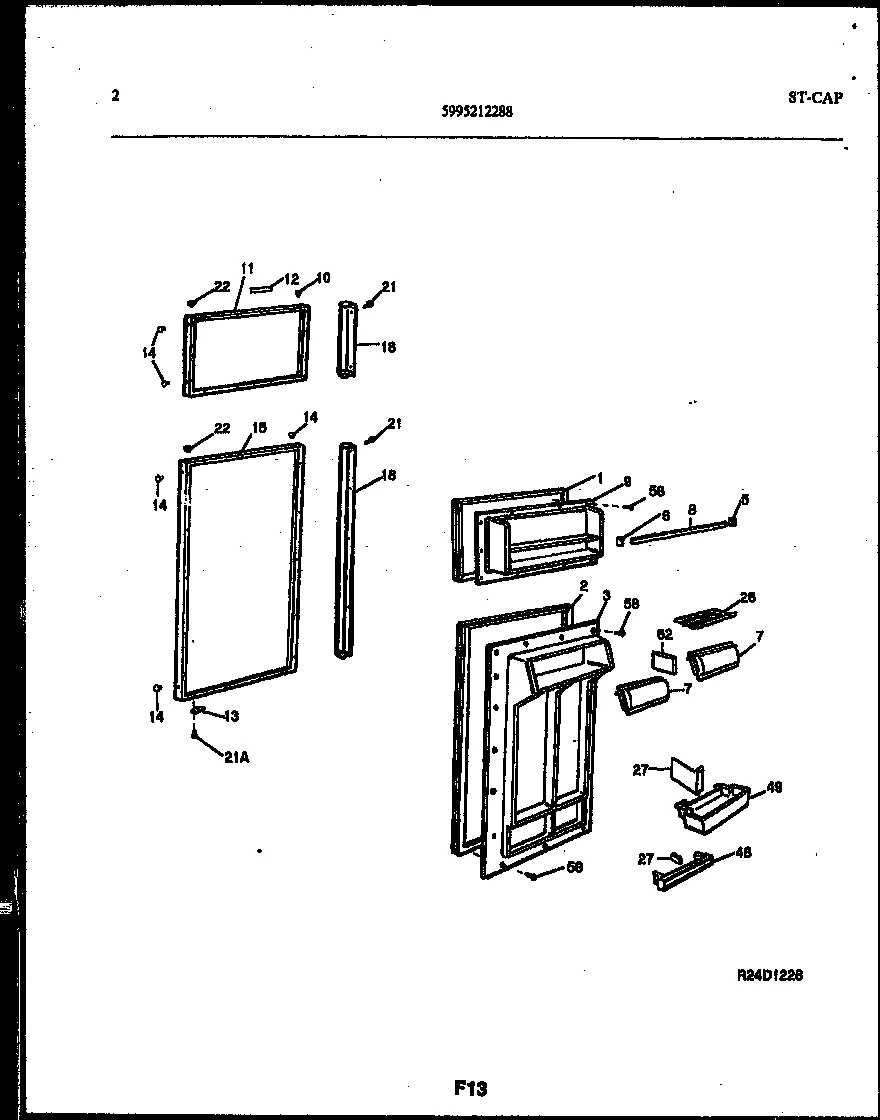

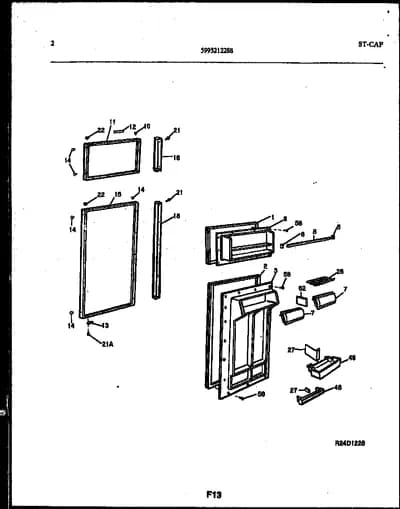

DOOR PARTS
Parts in DOOR PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, MAGNETIC, WHITE | Discontinued |
| 2 |  | 218730609replaces 5303275771 GASKET-REFR DOOR, MAGNETIC, WHITE | - |
| 3 |  | PANEL-INNER DOOR, REFR | - |
| 5 |  | 5303323480replaces 5303017377 SUPPORT-DOOR RACK, RH, (2) (NON-ILLUSTRATED) | $10.27 ApplianceParts Pro |
| 6 |  | 5303323481replaces 5303017380 SUPPORT-DOOR RACK, LH, (2) | $8.19 Part Advantage |
| 7 | – | 5303280855 DOOR-DAIRY, (2) | - |
| 7A | – | 5308017047 NUT, SHELF THREADING, 1/8, (4) (NON-ILLUSTRATED) | - |
| 8 |  | RACK-DOOR, (2) | Discontinued |
| 9 | – | 5303276748 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 5303916052 PANEL-FRZR DOOR, WHITE, W/ INSULATION | - |
| 12 | – | 5303280988 NAMEPLATE ASSY, WHITE | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 5303916952 PANEL, REFR DOOR, WHITE | - |
| 15A | – | 5303275660 BRACE, CROSS (NON ILLUSTRATED) | - |
| 18 | – | 5303280985 HANDLE-DOOR, WHITE, REFR | - |
| 18 | – | 5303280983 HANDLE-DOOR, WHITE, FRZR | - |
| 21 | | SCREW-HANDLE MTG,OVAL HEAD ,10-24D X 5/8,WHITE ,CROSS RE | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 26 | – | 5303272408 CONTAINER-EGG | - |
