Model
Tappan 95-2187-45-04
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2187-45-04Refrigerator, Top Mount
4 diagrams152 parts
Parts Sections (4)
Diagram

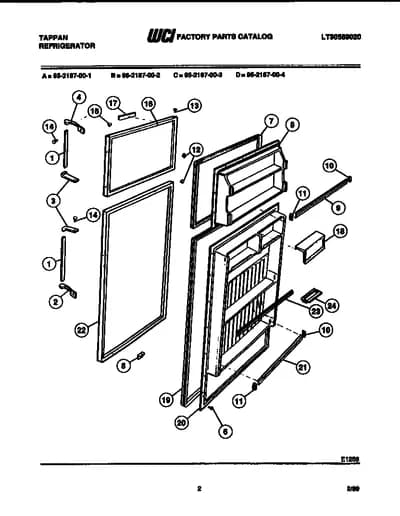

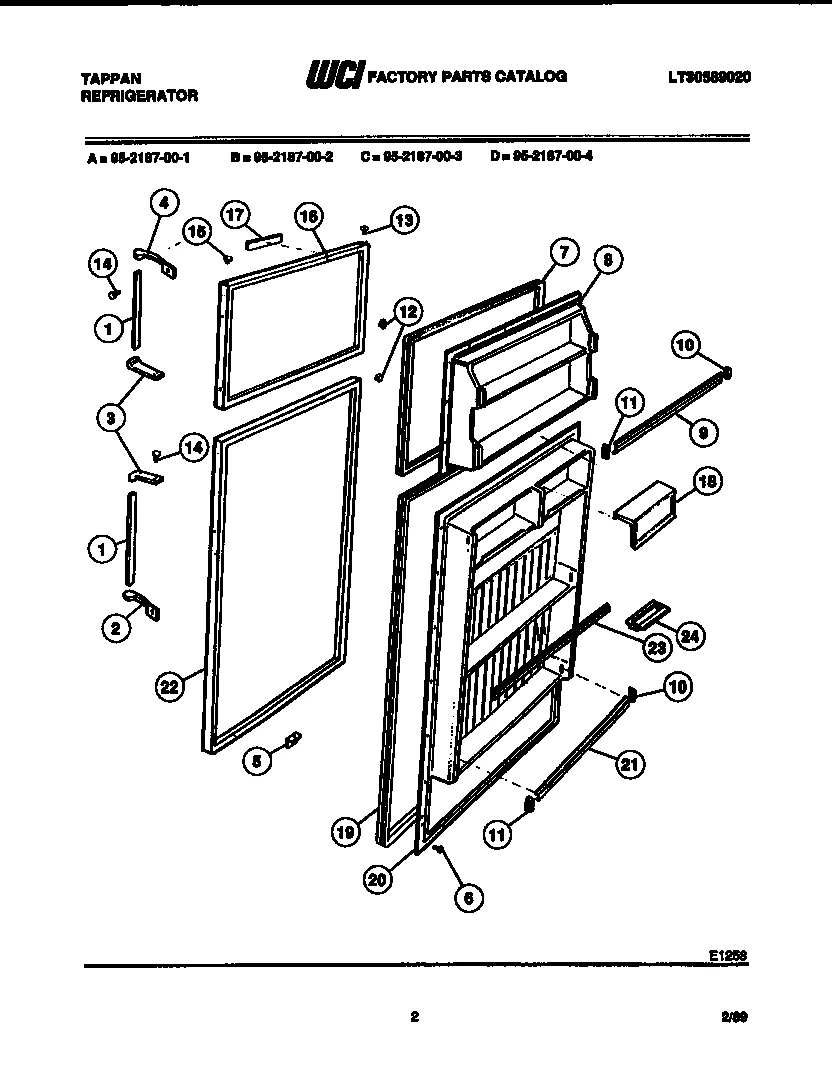

DOOR PARTS
Parts in DOOR PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3001294 GRIP-HANDLE (2) | - |
| 2 | – | 3001295 END-HANDLE BOTTOM | - |
| 3 |  | END-HANDLE (2) | - |
| 4 | – | 3001297 END-HANDLE TOP | - |
| 5 |  | 5308000255replaces 3001405 STOP-DOOR (2) | - |
| 6 |  | 5304455651replaces 3001340 SCREW-BRACKET MOUNTING (NON-ILLUSTRATED) | $7.77 Part Advantage |
| 7 | – | 3001407 GASKET-FRZR DOOR | - |
| 8 | – | 3001408 PANEL-INNER DOOR, REFR | - |
| 9 | – | 3001409 RACK-FREEZER DOOR (2) | - |
| 10 | – | 3001410 SUPPORT DOOR RACK RH (4) | - |
| 11 |  | 5303007297replaces 3001411 SUPPORT DOOR RACK LH (4) | $24.36 RepairClinic |
| 12 | – | G162977-10 BUTTON PLUG-COFFEE | - |
| 13 | – | G169332-10 BUTTON-PLUG, COFFEE | - |
| 14 | | 5308011745replaces 3001040 SCREW-HANDLE MOUNTING (8) | - |
| 15 | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 16 | – | G188158-10 FREEZER PANEL-OUTER (COFFEE) | - |
| 17 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 18 | – | 3001415 DOOR-COMPARTMENT (2) | - |
| 19 | | 3001416NLA GASKET REFRIGERATOR DOOR | Discontinued |
| 20 | – | 3001417 PANEL-INNER DOOR, FRZR | - |
| 21 | – | 3001418 DOOR RACK-BOTTOM | - |
| 22 | – | G178694-10 PANEL REFRIGERATOR-COFFEE | - |
| 23 | – | 3001409 RACK-FREEZER DOOR (2) | - |
| 24 |  | 5308000716replaces 3001090 BUTTER DISH | - |
