Model
Tappan 95-2187-45-05
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2187-45-05Refrigerator, Top Mount
4 diagrams162 parts
Parts Sections (4)
Diagram

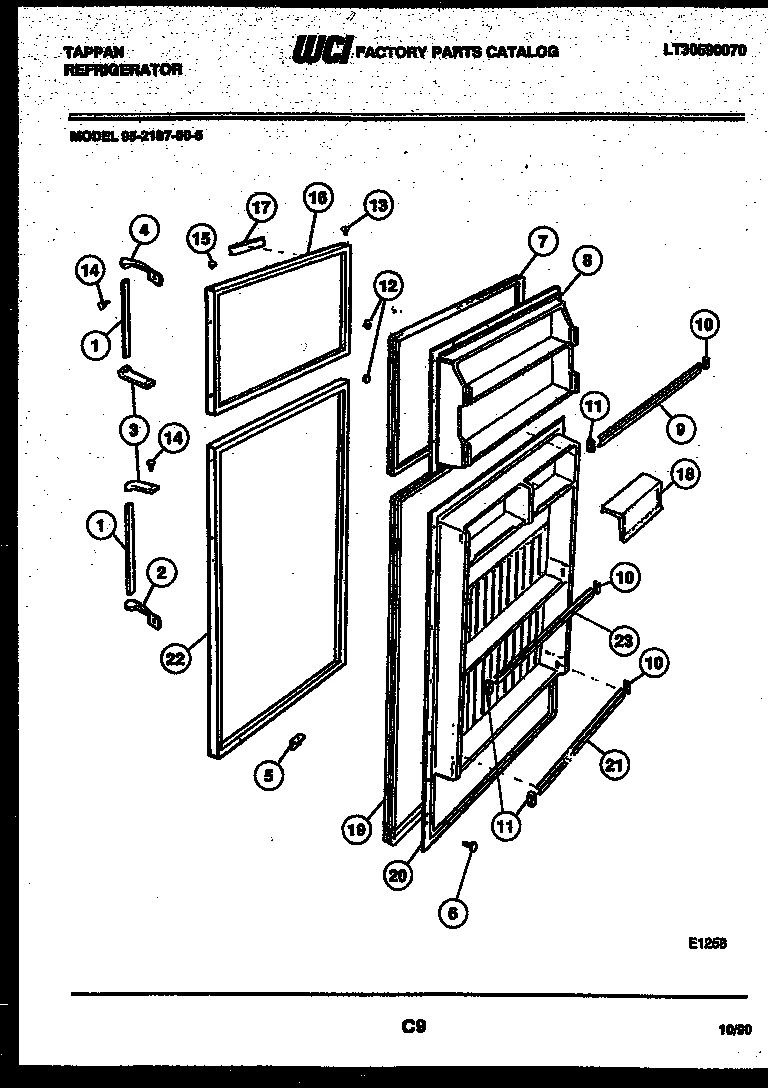

DOOR PARTS
Parts in DOOR PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3206063 HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 2 |  | BOTTOM HANDLE END CAP | - |
| 3 |  | END-HANDLE BOTTOM | - |
| 4 |  | HANDLE END TOP | - |
| 5 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 6 |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 7 | – | 5308016617 GASKET-FRZR DOOR, BEIGE, MAGNETIC | - |
| 8 | – | 3001408 PANEL-INNER DOOR, REFR | - |
| 9 | – | 3001409 RACK-FREEZER DOOR (2) | - |
| 10 | – | 5303001410 SUPPORT-DOOR RACK, RH, (4) | - |
| 11 |  | 5303007297replaces 5303001411 SUPPORT-DOOR RACK, LH, (4) | $24.36 RepairClinic |
| 12 | – | 5308000178 PLUG-BUTTON, COFFEE, HANDLE/DR STOP | - |
| 13 | – | 5303001657 PLUG-BUTTON, COFFEE, HINGE BRG HOLE | - |
| 14 |  | SCREW | - |
| 15 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 16 | – | G188158-10 FREEZER PANEL-OUTER (COFFEE) | - |
| 17 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 18 | – | 5303001415 DOOR COMPARTMENT (2) | - |
| 19 | | 5308015544NLA GASKET-REFR DOOR, BEIGE, MAGNETIC | Discontinued |
| 20 | – | 3001417 PANEL-INNER DOOR, FRZR | - |
| 21 | – | 5303001418 RACK-REFR DOOR-TOP | - |
| 22 | – | 5317869410 REFRIGERATOR PANEL - COFFEE | - |
| 23 | – | 3001409 RACK-FREEZER DOOR (2) | - |
