Model
Tappan 95-2187-57-07
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2187-57-07Refrigerator, Top Mount
4 diagrams164 parts
Parts Sections (4)
Diagram

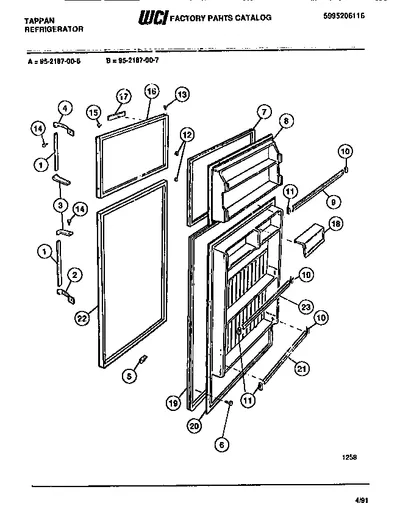

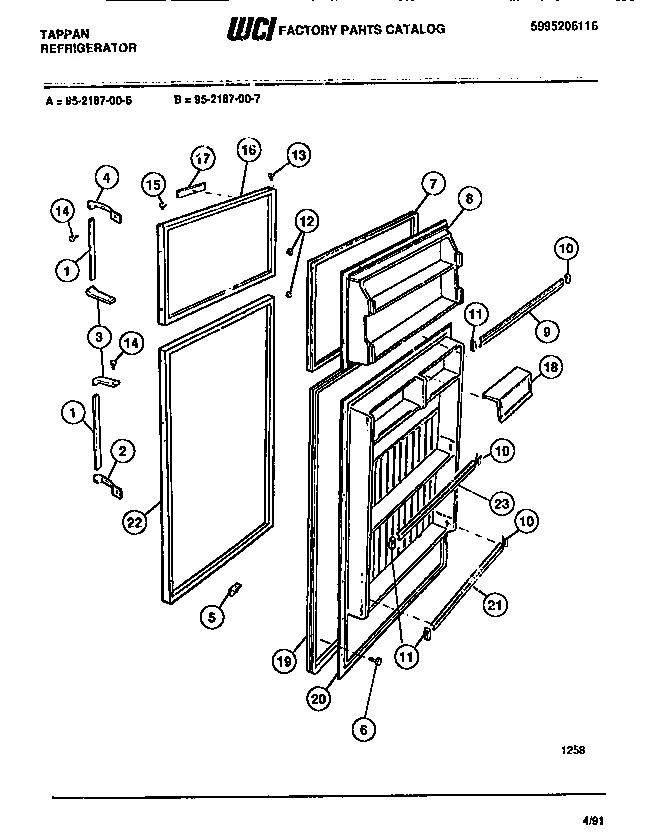

DOOR SECTION
Parts in DOOR SECTION
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3206063 HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2) | - |
| 2 |  | BOTTOM HANDLE END CAP | - |
| 3 |  | END-HANDLE BOTTOM | - |
| 4 |  | HANDLE END TOP | - |
| 5 |  | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 5A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 6 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 7 | – | 5308016617 GASKET-FRZR DOOR, BEIGE, MAGNETIC | - |
| 8 | – | 3001408 PANEL-INNER DOOR, REFR | - |
| 9 | – | 3001409 RACK-FREEZER DOOR (2) | - |
| 10 | – | 5303001410 SUPPORT-DOOR RACK, RH, (4) | - |
| 11 |  | 5303007297replaces 5303001411 SUPPORT-DOOR RACK, LH, (4) | $24.36 RepairClinic |
| 12 | – | 5308000179 BUTTON-PLUG HANDLE HOLE AVOCADO (8) | - |
| 13 | – | 5308000175 BUTTON-PLUG HINGE HOLE-AVOCADO | - |
| 14 | | SCREW | - |
| 15 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 16 | – | 5318815808 FREEZER PANEL-OUTER (AVOCADO) | - |
| 16 | – | G188158-09 FREEZER PANEL-OUTER (WHEAT) | - |
| 17 | – | 3001312 NAMEPLATE ASSEMBLY | - |
| 18 | – | 5303001415 DOOR COMPARTMENT (2) | - |
| 19 | | 5308015544NLA GASKET-REFR DOOR, BEIGE, MAGNETIC | Discontinued |
| 20 | – | 3001417 PANEL-INNER DOOR, FRZR | - |
| 21 | – | 5303001418 RACK-REFR DOOR-TOP | - |
| 22 | – | 5317869408 REFRIGERATOR PANEL - AVOCADO | - |
| 23 | – | 3001409 RACK-FREEZER DOOR (2) | - |
