Model
Tappan 95-2191-32-00
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2191-32-00Refrigerator, Top Mount
6 diagrams190 parts
Parts Sections (6)
Diagram

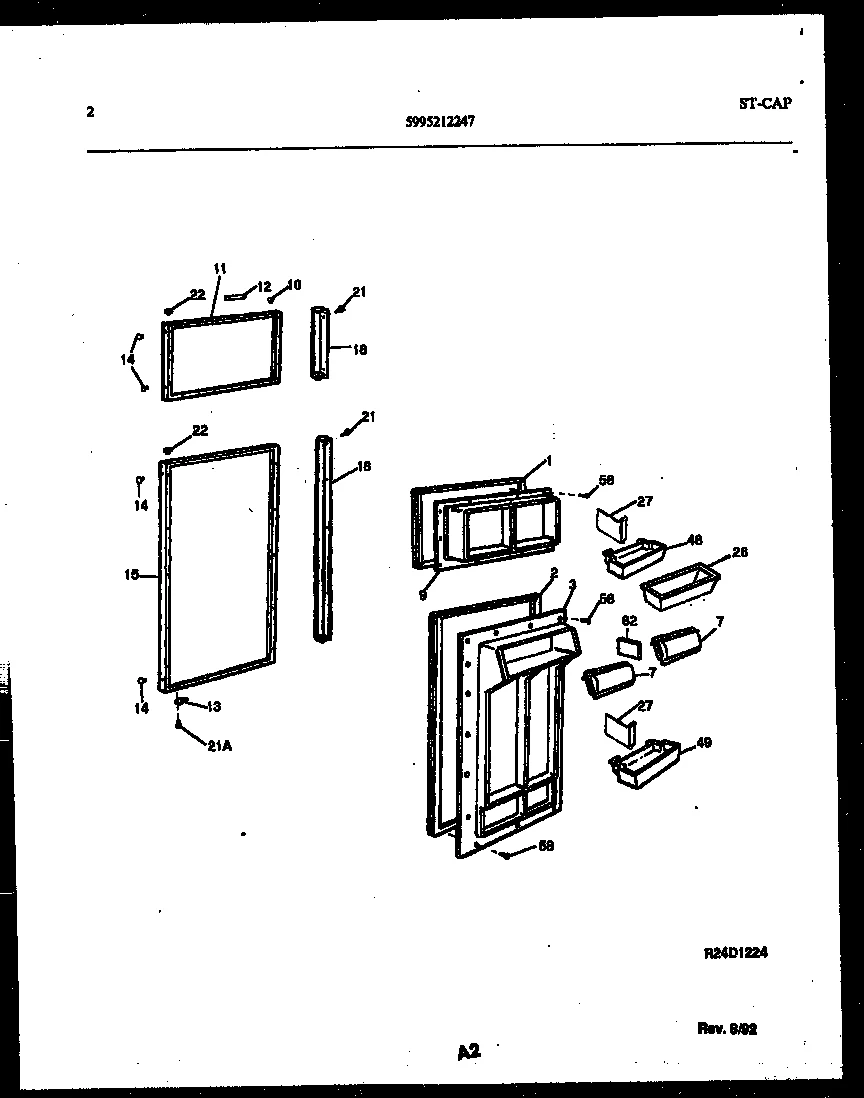

DOOR PARTS
Parts in DOOR PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, MAGNETIC | - |
| 2 | – | 5303272403 GASKET-REFR DOOR, MAGNETIC | - |
| 3 | – | 5303275674 PANEL-INNER DOOR, REFR | - |
| 7 | – | 5303280855 DOOR-DAIRY, (2) | - |
| 7A | – | 5308017047 NUT, SHELF THREADING, 1/8, (4) (NON-ILLUSTRATED) | - |
| 9 | – | 5303275724 PANEL-INNER DOOR, FRZR | - |
| 10 | – | 5303272397 PLUG-BUTTON, BLACK, HINGE BRG HOLE | - |
| 11 | – | 5303269855 PANEL-FRZR DOOR, BLACK | - |
| 12 | – | 5303272398 NAMEPLATE ASSY | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13 | – | 5303272399 DOOR STOP, FRZR (NON-ILLUSTRATED) | - |
| 14 |  | 240494003replaces 5303272396 PLUG-BUTTON, BLACK, HANDLE/DR STOP | $9.83 Part Advantage |
| 15 | – | 5303279404 PANEL-REFR DOOR, BLACK | - |
| 15A | – | 5303275660 BRACE, CROSS (NON ILLUSTRATED) | - |
| 18 | – | 5303272404 HANDLE-DOOR, 43.94`` LONG, BLACK SATIN | - |
| 18 | – | 5303272400 HANDLE-DOOR, 19.25`` LONG, BLACK SATIN | - |
| 21 | | 5308011745replaces 5303276869 SCREW-HANDLE MTG, CR OVAL HD, 10-24(D) X 5/8, BLACK, (6 | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 26 | – | 5303272408 CONTAINER-EGG | - |
| 27 | | SNUGGER-DOOR BIN, ``PADDLE TYPE``, LARGE | - |
| 27 | – | 5303279906 SNUGGER-DOOR BIN, ``PADDLE TYPE``, SMALL (NON-ILLUSTRATED) | - |
| 48 | – | 5303280853 BIN-DOOR, 2-LITER, WHITE, (6) | - |
| 49 | – | 5303280842 BIN-DOOR, GALLON, WHITE, (2) | - |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 62 | – | 5303275673 DIVIDER-DAIRY COMPT | - |
| *60768 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
