Model
Tappan 95-2487-00-01
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2487-00-01Refrigerator, Side-By-Side, W/Dispenser
10 diagrams289 parts

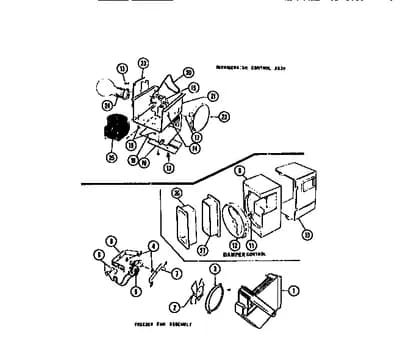

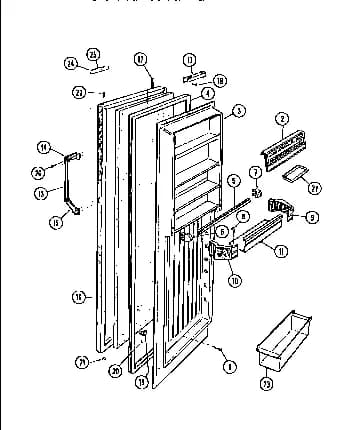

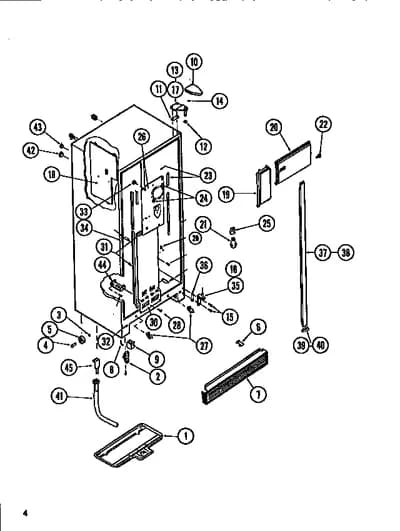

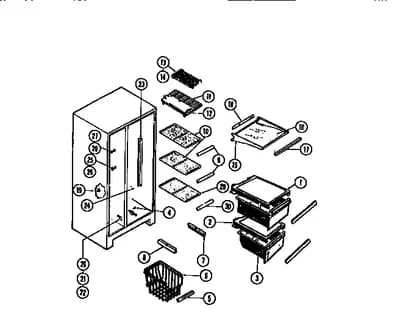

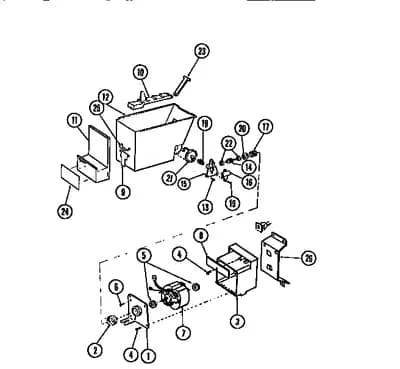

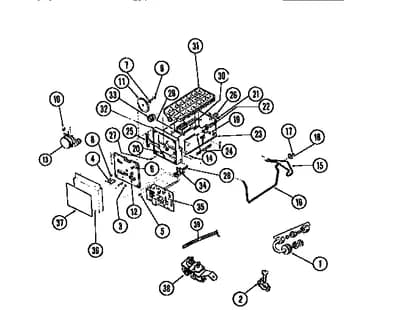

Parts Sections (10)
Diagram

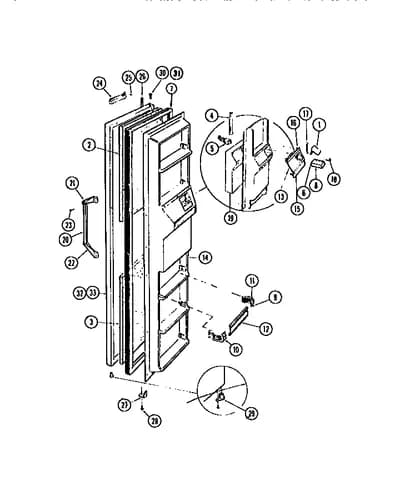

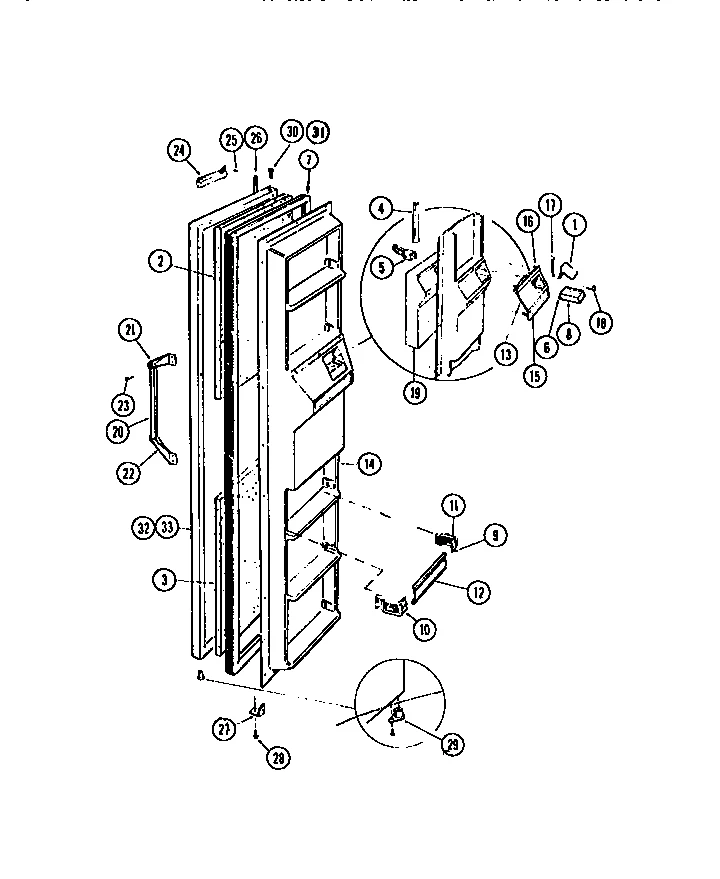

FREEZER DOOR
Parts in FREEZER DOOR
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303017828replaces 3001042 FLIPPER, ICE DOOR | - |
| 2 | – | 3001044 INSUL., UPPER | - |
| 3 | – | 3001045 INSUL., LOWER | - |
| 4 | – | 3001046 SHIELD, WIRE | - |
| 5 | – | 3001047 MOLEX PLUG, HSNG | - |
| 6 | – | 3001048 PIN, ICE DOOR | - |
| 7 | – | 3001049 GASKET-FREEZER DOOR | - |
| 8 |  | 5303916745replaces 3001050 ICE DOOR | - |
| 9 | – | 3001051 RIVET | - |
| 10 |  | 5303206223replaces 3001052 SUPPORT, SHELF, L.H. | - |
| 11 |  | 5303206717replaces 3001053 SUPPORT, SHELF R.H. | $18.95 ApplianceParts Pro |
| 12 | | 5303206708replaces 3001054 RACK, DOOR | - |
| 13 | – | 3001055 COVER, DOOR PNL TRIM | - |
| 14 | – | 3001056 PANEL-INNER DOOR, FRZR | - |
| 15 | – | 3001057 LABEL-DR PNL TRIM COVER (NON-ILLUSTRATED) | - |
| 16 | – | 3001058 NUT 1/8`` (6) | - |
| 17 |  | 5308010300replaces 3001059 SPRING, FLIPPER RET. | - |
| 18 |  | 5304455650replaces 3001060 SCREW-COVER MOUNTING (2) (NON-ILLUSTRATED) | $10.31 Parts Dr |
| 19 | – | 3001061 INSULATION, I X W | - |
| 20 | – | 3001013 HANDLE-FREEZER DOOR | - |
| 21 | – | 3001014 END, HANDLE, TOP | - |
| 22 | – | 3001015 END, HANDLE., BOTTOM | - |
| 23 | | 5308011745replaces 3001040 SCREW-HANDLE MOUNTING (8) | - |
| 24 | – | 3001018 CLOSER, DOOR | - |
| 25 |  | 218843801replaces 3001001 SCREW-PANEL MOUNTING (34) (NON-ILLUSTRATED) | - |
| 26 | – | 3001012 TRIM-REFRIGERATOR DOOR | - |
| 27 | | 5308000790replaces 3001019 SWITCH-BUMPR LITE | $1.83 RepairClinic |
| 28 | | PUSH NUT (NON-ILLUSTRATED) | Discontinued |
| 29 | – | 3001063 BUSHING | - |
| 30 | | 5303001022replaces 3001022 BEARING-HINGE, UPPER | - |
| 31 | | BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 31A | – | 3001064 PANEL, EXT. FRZR, WHITE | - |
