Tappan 95-2491-66-00
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2491-66-00Refrigerator, Side-By-Side, W/Dispenser
13 diagrams301 parts

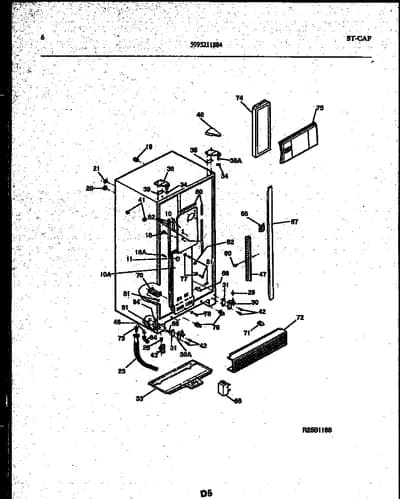

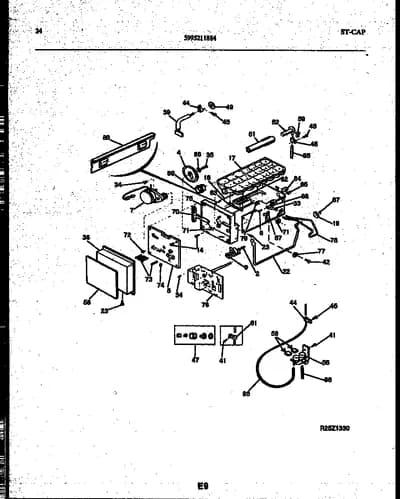

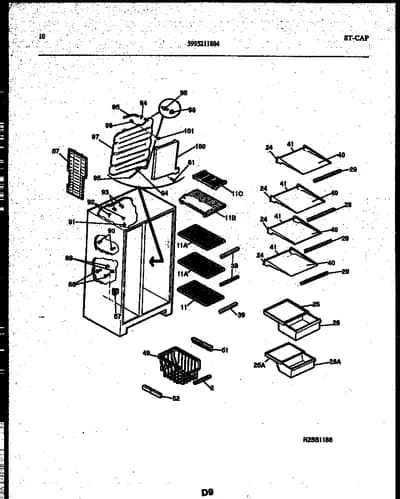

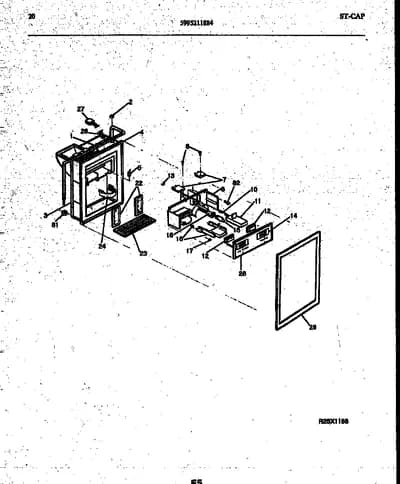

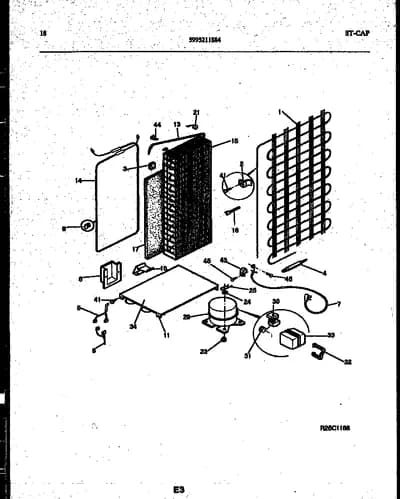

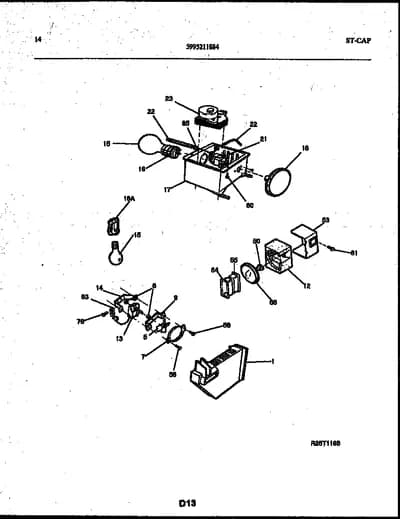

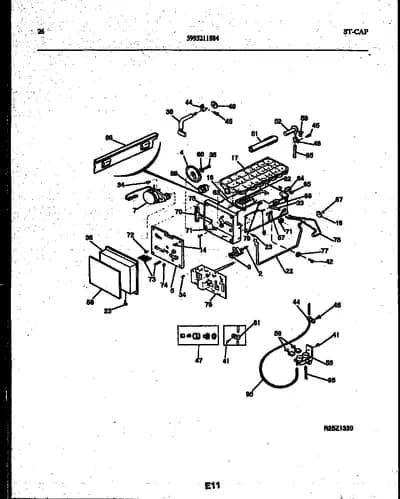

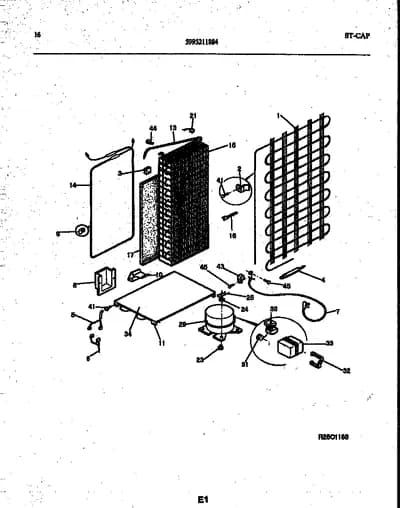

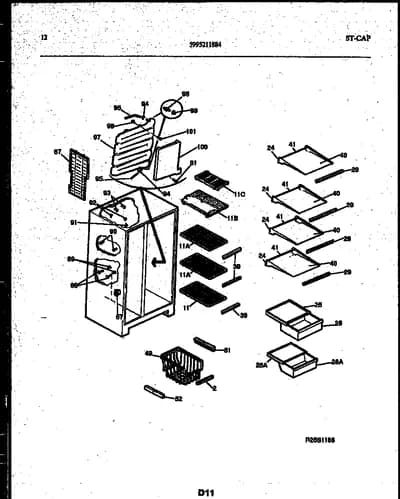

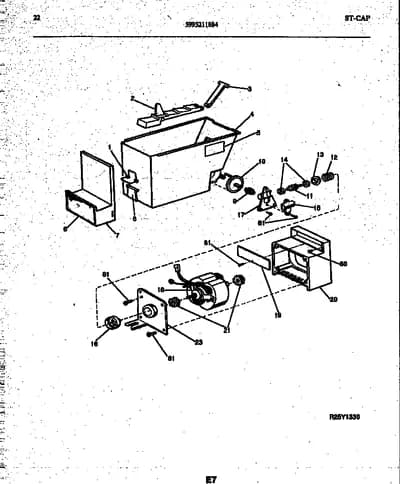

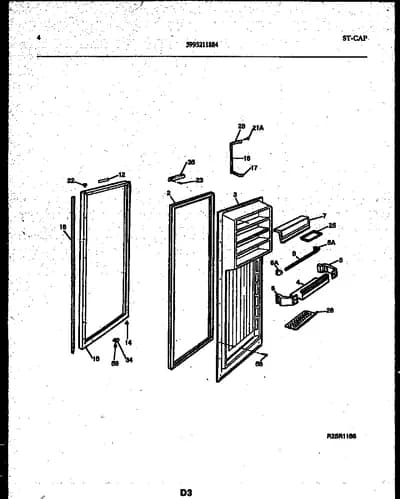

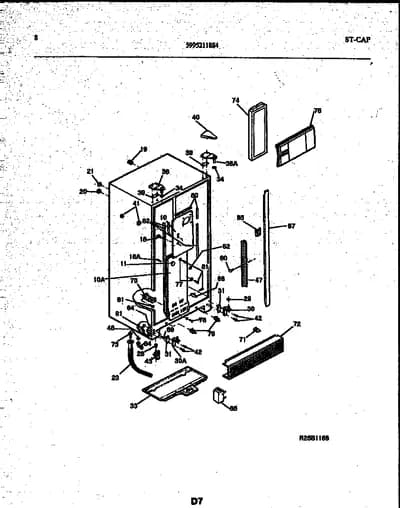

Parts Sections (13)
Diagram

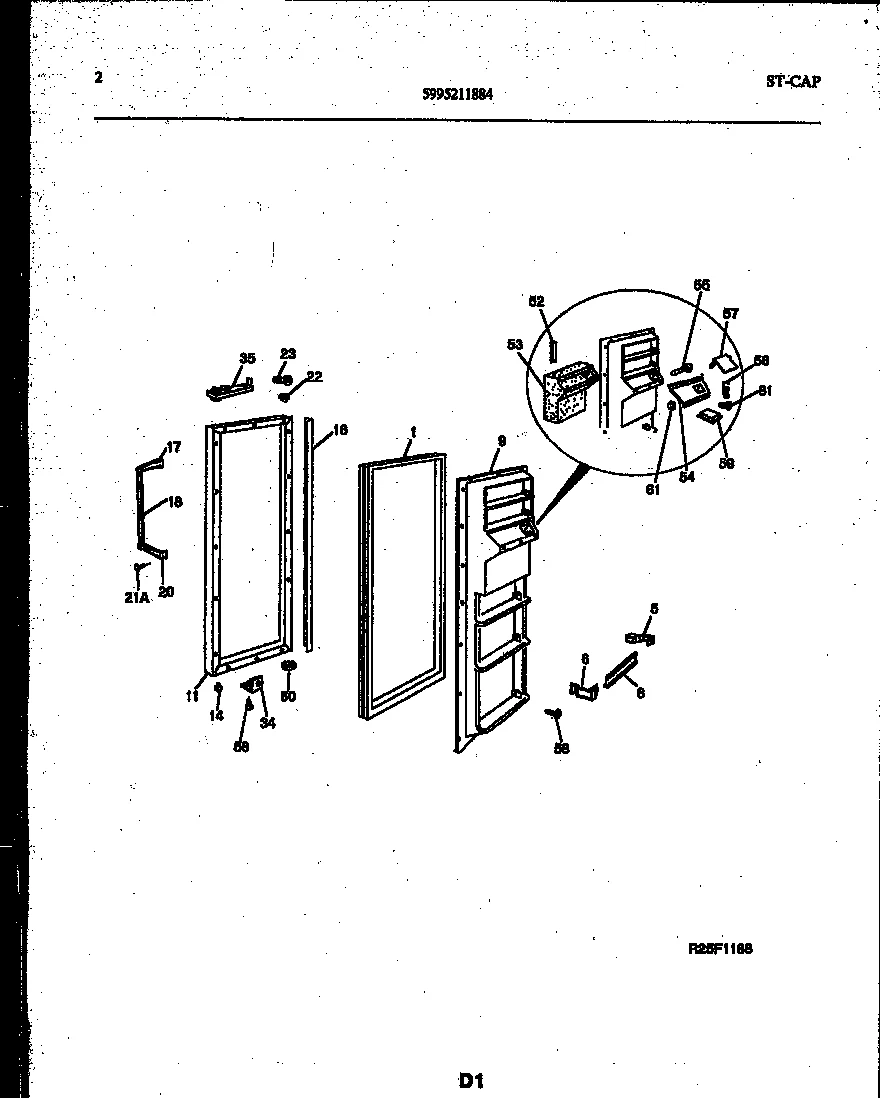

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, MAGNETIC | - |
| 5 | | 5303206717replaces 5303206366 SUPPORT-DOOR RACK, RH, (5) | $18.95 ApplianceParts Pro |
| 6 |  | 5303206223replaces 5303206720 SUPPORT-DOOR RACK, LH, (5) | - |
| 8 | | 5303206708replaces 5303206707 RACK-DOOR, (5) | - |
| 9 | – | 3001056 PANEL-INNER DOOR, FRZR | - |
| 11 | – | 5303917042 PANEL-FRZR DOOR, WHEAT | - |
| 14 | – | 5315230801 PLUG - DOOR BOTTOM (NON-ILLUSTRATED) | - |
| 16 | – | 3001012 TRIM-REFRIGERATOR DOOR | - |
| 17 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 18 | – | 3001013 HANDLE-FREEZER DOOR | - |
| 20 | | END - HANDLE TOP | - |
| 21A | | SCREW | - |
| 22 | | BEARING-HINGE UPPER (2) | - |
| 23 |  | SCREW-DOOR CLOSER MTG, CR FLAT HEAD, 8-32(D) X 1/2 | - |
| 34 | | BUMPER-LIGHT SWITCH (NON-ILLUSTRATED) | $1.83 RepairClinic |
| 35 | | 5303200272NLA DOOR CLOSER | Discontinued |
| 52 | – | 5303001046 SHIELD-WIRING | - |
| 53 | – | 5308017045 INSULATION-HOUSING | - |
| 54 | – | 3001055 COVER, DOOR PNL TRIM | - |
| 54A | – | 3001057 LABEL-DR PNL TRIM COVER (NON-ILLUSTRATED) | - |
| 55 | – | 5303001048 PIN-ICE DOOR HINGE | - |
| 56 |  | SPRING-FLIPPER RETAINER | - |
| 57 |  | 5303017828replaces 5317504003 FLIPPER-ICE DOOR | - |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 59 | | 5303209287replaces 5303211543 ICE DOOR ASSY | $2.74 RepairClinic |
| 60 | – | 5308010308 BUSHING-LOWER HINGE | - |
| 61 | – | 5308017047 NUT, SHELF THREADING, 1/8, (4) (NON-ILLUSTRATED) | - |
| 81 |  | 5304455650replaces 5308016566 SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE | $10.31 Parts Dr |
| *63687 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
