Model
Tappan 95-2497-57-02
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2497-57-02Refrigerator, Side-By-Side, W/Dispenser
9 diagrams307 parts

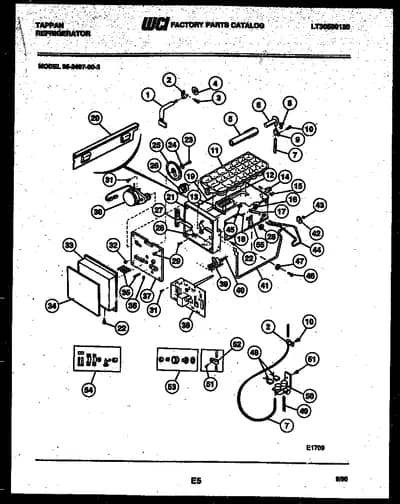

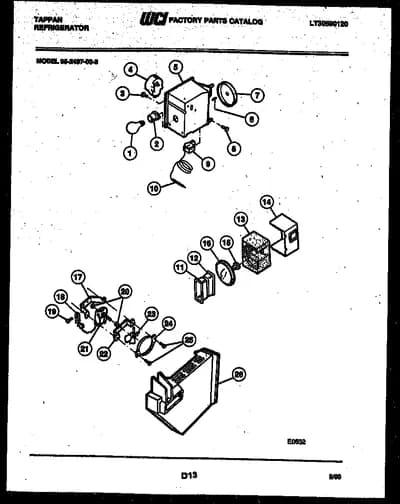

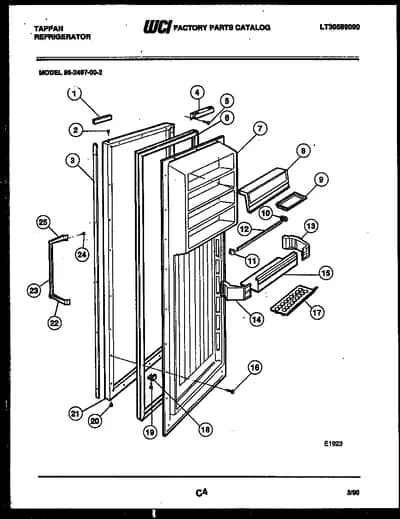

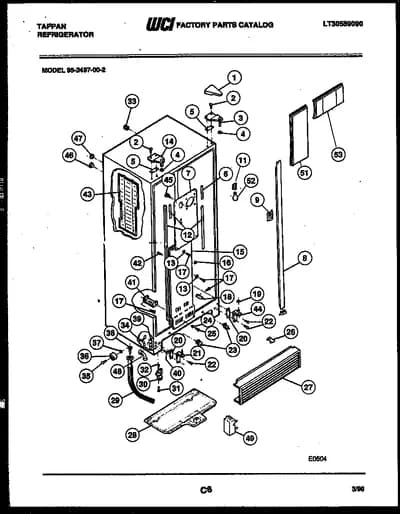

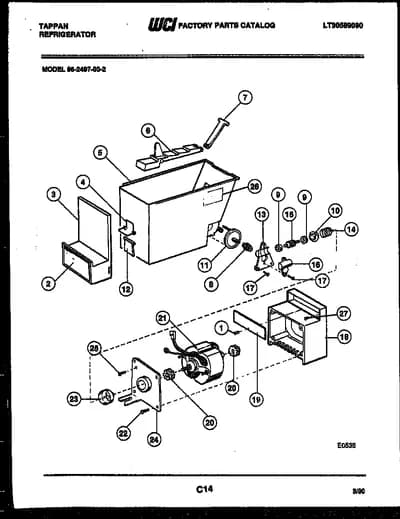

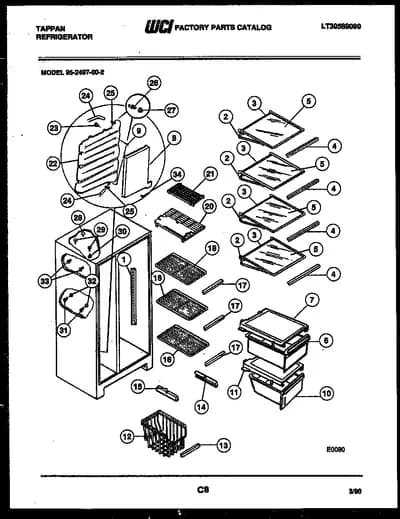

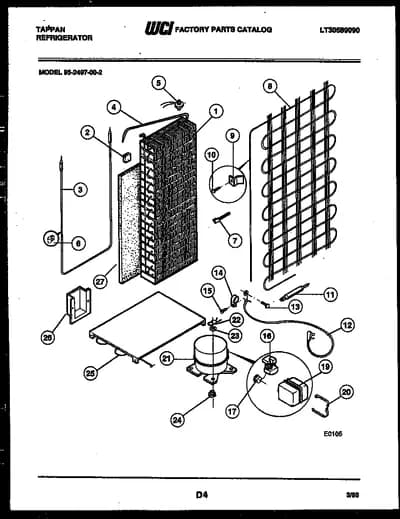

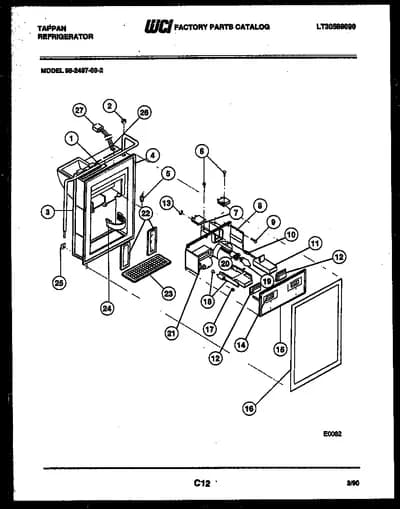

Parts Sections (9)
Diagram

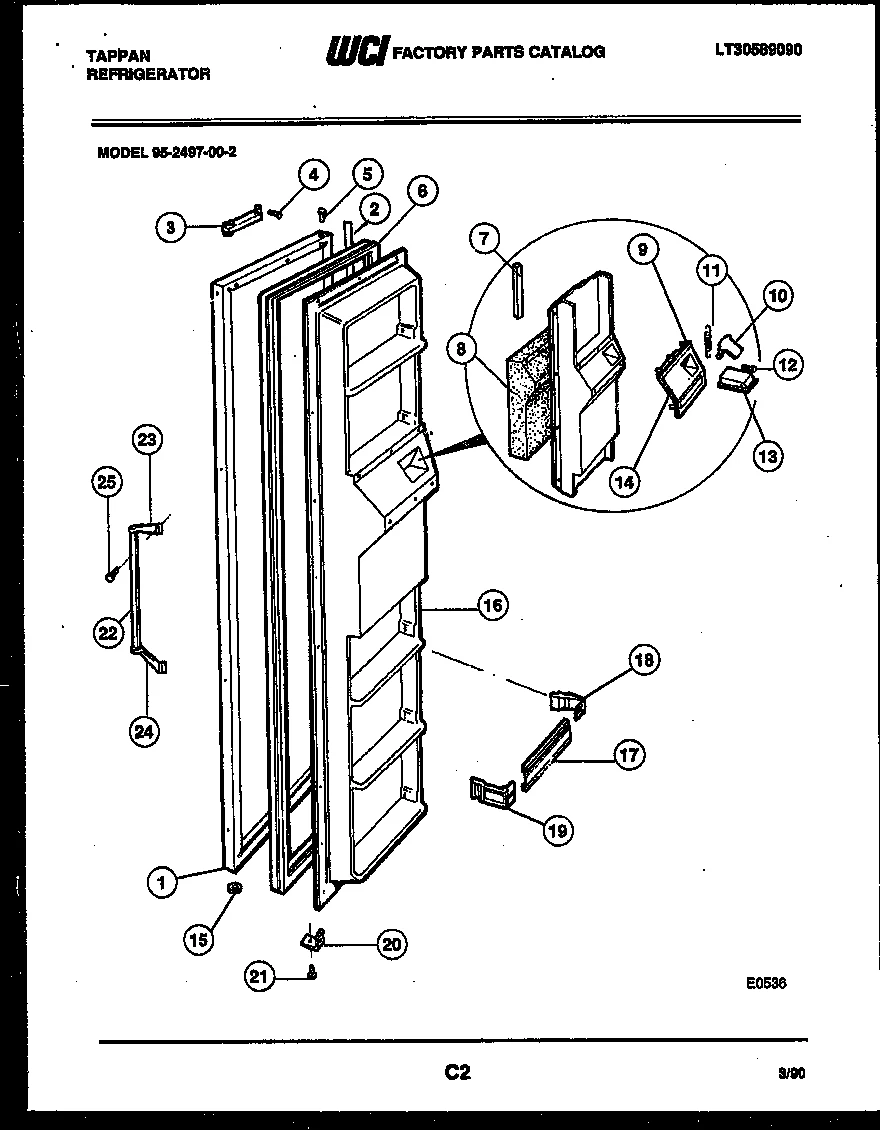

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
30 parts

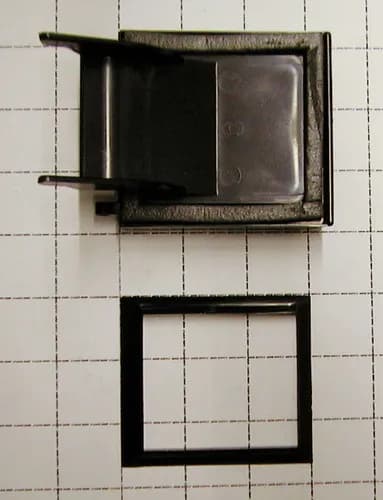

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | G188343-08 FREEZER DOOR-AVOCADO | - |
| 1A | – | G152308-01 PLUG-DOOR BOTTOM (NON-ILLUSTRATED) | - |
| 2 | – | 3001012 TRIM-REFRIGERATOR DOOR | - |
| 3 |  | 5303200272NLA DOOR CLOSER | Discontinued |
| 4 |  | 5303001020replaces G169729 SCREW-CLOSER MTG (NON-ILLUSTRATED) | - |
| 5 | | 5303001022replaces G183139 BEARING, HINGE HOLE, UPPER | - |
| 6 | – | 3001049 GASKET-FREEZER DOOR | - |
| 7 | – | G177720 SHIELD-WIRING | - |
| 8 | – | G187880 INSULATION-HOUSING | - |
| 9 | – | G179017 PIN-ICE DR. (NON-ILLUSTRATED) | - |
| 10 |  | 5303017828replaces 3001042 FLIPPER, ICE DOOR | - |
| 11 |  | 5308010300replaces G184726 SPRING-FLIPPER RETAINER | - |
| 12 |  | 5304455650replaces G187363 SCREW | $10.31 Parts Dr |
| 13 |  | 5303916745replaces 5308017528 ICE DOOR | - |
| 14 | – | 3001055 COVER, DOOR PNL TRIM | - |
| 14A | – | G183058 LABEL-DR PNL TRIM COVER (NON-ILLUSTRATED) | - |
| 14B | – | G188218 NUT-SELF THREADING (6) (NON-ILLUSTRATED) | - |
| 15 | – | G175070 BUSHING-LOWER HINGE | - |
| 16 | – | G179972-01 PANEL-INNER DOOR | - |
| 16A |  | 218843801replaces G162585 SCREW | - |
| 17 | | 5303206708replaces 5303206707 RACK-DOOR, (5) | - |
| 18 | | 5303206717replaces 5303206366 SUPPORT-DOOR RACK, RH, (5) | $18.95 ApplianceParts Pro |
| 19 |  | 5303206223replaces 5303206720 SUPPORT-DOOR RACK, LH, (5) | - |
| 20 | | 5308000790replaces G165376 BUMPER-LIGHT SWITCH (2) | $1.83 RepairClinic |
| 21 | | 218843801replaces G162585 SCREW | - |
| 22 | – | 3001013 HANDLE-FREEZER DOOR | - |
| 23 | – | G175809 END-HANDLE TOP (2) | - |
| 24 | – | G175810 END-HANDLE BOTTOM (2) | - |
| 25 | | 5308011745replaces G185566 SCREW | - |
| *36841 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
