Tappan 95-2497-66-03
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
95-2497-66-03Refrigerator, Side-By-Side, W/Dispenser
9 diagrams300 parts

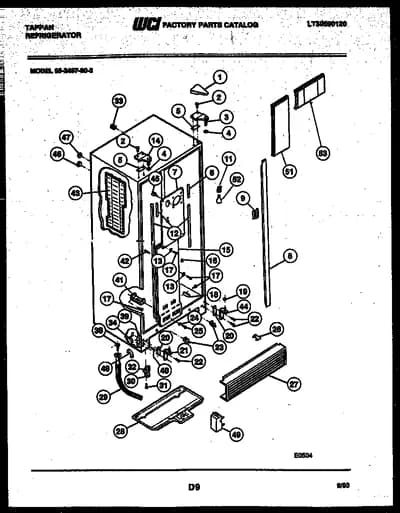

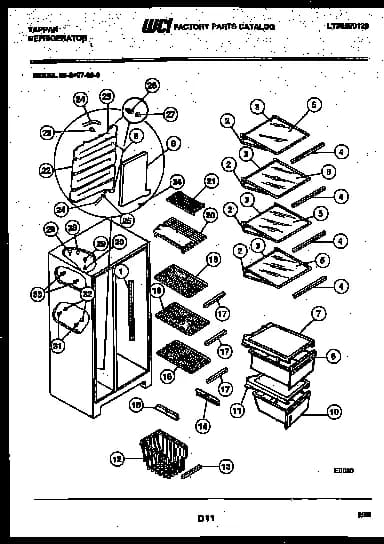

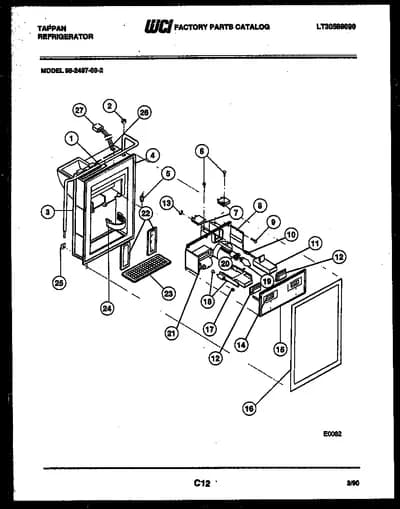

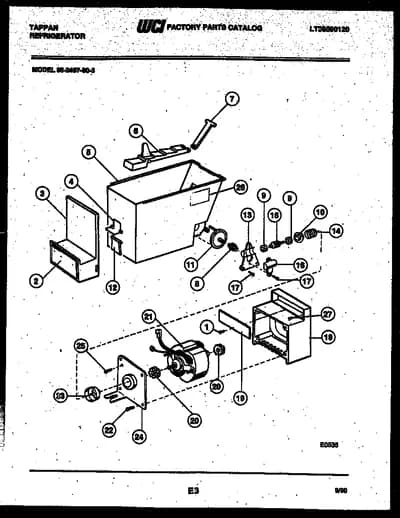

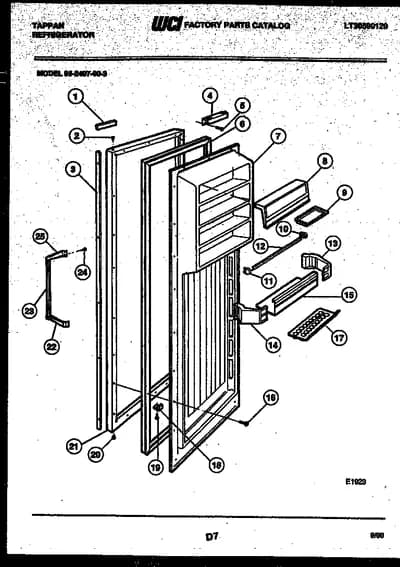

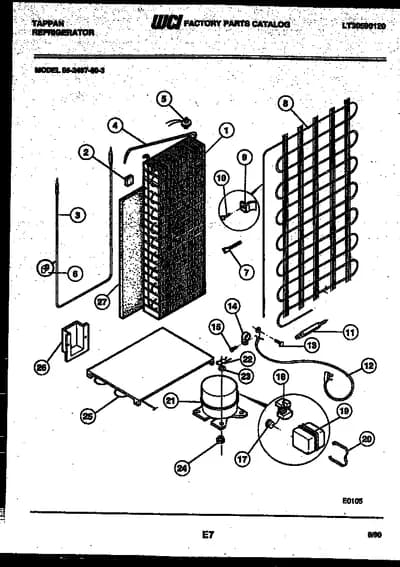

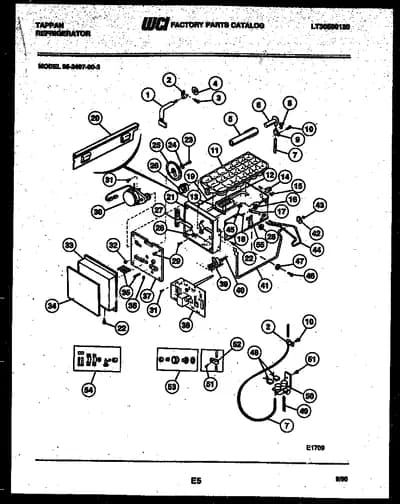

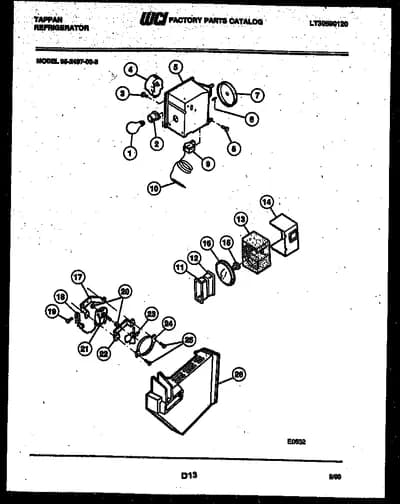

Parts Sections (9)
Diagram

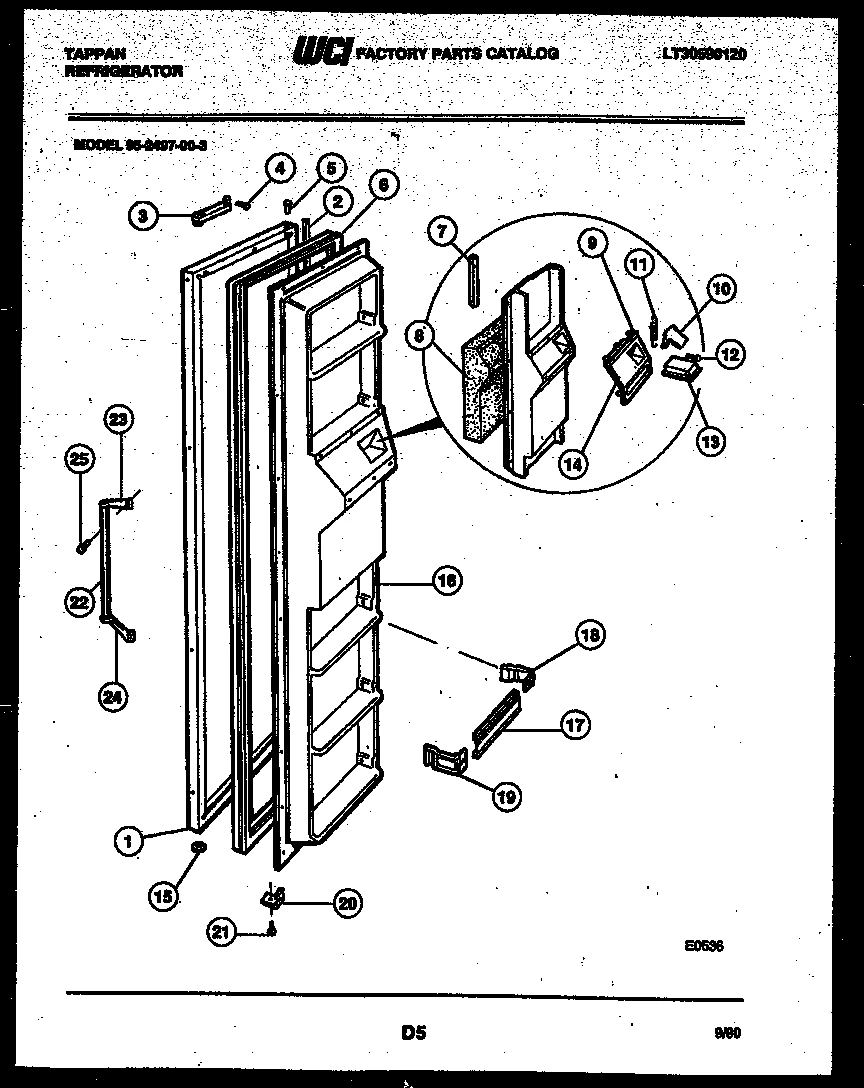

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | G188343-09 FREEZER DOOR-WHEAT | - |
| 1A | – | 5315230801 PLUG - DOOR BOTTOM (NON-ILLUSTRATED) | - |
| 2 | – | 3001012 TRIM-REFRIGERATOR DOOR | - |
| 3 |  | 5303200272NLA DOOR CLOSER | Discontinued |
| 4 |  | 5303001020replaces 3001020 SCREW-DOOR CLOSER (NON-ILLUSTRATED) | - |
| 5 | | BEARING-HINGE UPPER (2) | - |
| 6 | | GASKET-FRZR DOOR, MAGNETIC | - |
| 7 | – | 5303001046 SHIELD-WIRING | - |
| 8 | – | 5308017045 INSULATION-HOUSING | - |
| 9 | – | 5303001048 PIN-ICE DOOR HINGE | - |
| 10 |  | 5303017828replaces 3001042 FLIPPER, ICE DOOR | - |
| 11 |  | SPRING-FLIPPER RETAINER | - |
| 12 |  | 5304455650replaces 5308016566 SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PROFILE | $10.31 Parts Dr |
| 13 | | 5303209287replaces 5303211543 ICE DOOR ASSY | $2.74 RepairClinic |
| 14 | – | 3001055 COVER, DOOR PNL TRIM | - |
| 14A | – | 3001057 LABEL-DR PNL TRIM COVER (NON-ILLUSTRATED) | - |
| 14B | – | 5308017047 NUT, SHELF THREADING, 1/8, (4) (NON-ILLUSTRATED) | - |
| 15 | – | 5308010308 BUSHING-LOWER HINGE | - |
| 16 | – | 3001056 PANEL-INNER DOOR, FRZR | - |
| 16A |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 17 | | 5303206708replaces 5303206707 RACK-DOOR, (5) | - |
| 18 | | 5303206717replaces 5303206366 SUPPORT-DOOR RACK, RH, (5) | $18.95 ApplianceParts Pro |
| 19 |  | 5303206223replaces 5303206720 SUPPORT-DOOR RACK, LH, (5) | - |
| 20 | | BUMPER-LIGHT SWITCH (NON-ILLUSTRATED) | $1.83 RepairClinic |
| 21 | | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 22 | – | 3001013 HANDLE-FREEZER DOOR | - |
| 23 | | END - HANDLE TOP | - |
| 24 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 25 | | SCREW | - |
| *39551 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
