Model
Universal ATC130WK1
Refrigerator, Top Mount
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
ATC130WK1Refrigerator, Top Mount
3 diagrams114 parts
Parts Sections (3)
Diagram

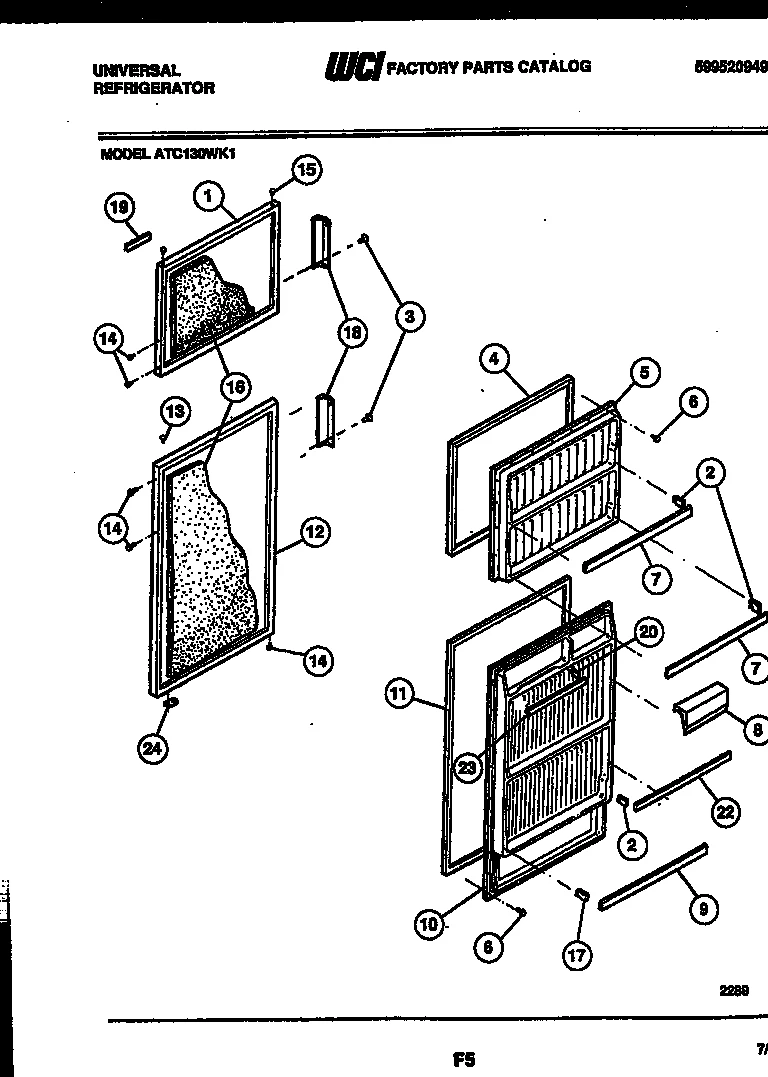

DOOR PARTS
Parts in DOOR PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303916964 PANEL, FREEZER DOOR, WHEAT | - |
| 1 | – | 5303916965 PANEL-FRZR DOOR, ALMOND | - |
| 1 | – | 5303916963 PANEL-FRZR DOOR, WHITE | - |
| 2 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 2 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 3 |  | SCREW, HANDLE MOUNTING, 8 CR TRUSS HEAD, 10(D) X 1/2 | - |
| 4 |  | GASKET, FRZR DOOR, BROWN, MAGNETIC | Discontinued |
| 5 | | PANEL-INNER DOOR, FRZR | - |
| 6 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 7 | – | 5303272149 DOOR RACK - FREEZER - (2) | - |
| 8 | – | 5303206149 DOOR RACK-FREEZER-LWR | - |
| 9 | | 5303272143NLA RACK-DOOR, WIDE, FULL WIDTH | Discontinued |
| 10 | – | 5303276182 PANEL-INNER DOOR, REFR | - |
| 11 | | GASKET-REFR DOOR, MAGNETIC | - |
| 12 | – | 5303916960 REFRIGERATOR DOOR - WHITE | - |
| 12 | – | 5303916961 REFRIGERATOR DOOR - WHEAT | - |
| 12 | – | 5303916962 REFRIGERATOR DOOR - ALMOND | - |
| 13 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 14 | – | 5308000180 BUTTON PLUG, HARVEST WHEAT, HANDLE HOLES | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 15 | – | 5308000176 BUTTON PLUG, HARVEST WHEAT, HINGE BRG HOLE | - |
| 15 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 16 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
| 17 | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 17 |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 18 | | 5308009875NLA HANDLE, DOOR, TEAKWOOD VINYL, REFRIGERATOR/FREEZER (2) | Discontinued |
| 19 | – | 5303276130 NAMEPLATE FRAME ASSY, W/ TAPE | - |
| 20 |  | 5304402658replaces 3206156 SUPPORT-DOOR RACK, EXTENDS .56``, RH | - |
| 20 |  | 5304402659replaces 3206157 SUPPORT-DOOR RACK, EXTENDS .56``, LH | - |
| 22 | | RACK-DOOR, NARROW, FULL WIDTH | - |
| 23 | – | 5303276154 RACK-DOOR, NARROW, DAIRY COMPT | - |
| 24 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| *48257 | | SCREW | - |
