Model
Universal CE206SP2W-00
Range/Oven, Electric, Freestanding
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
CE206SP2W-00Range/Oven, Electric, Freestanding
2 diagrams62 parts
Parts Sections (2)
Diagram

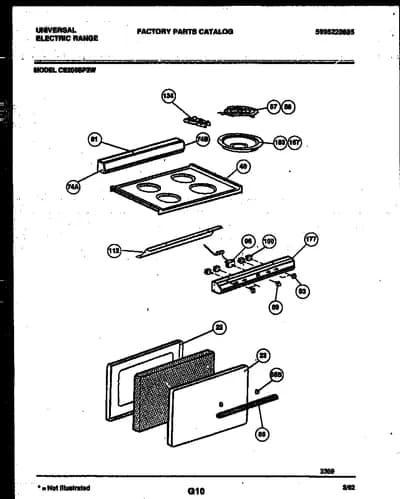

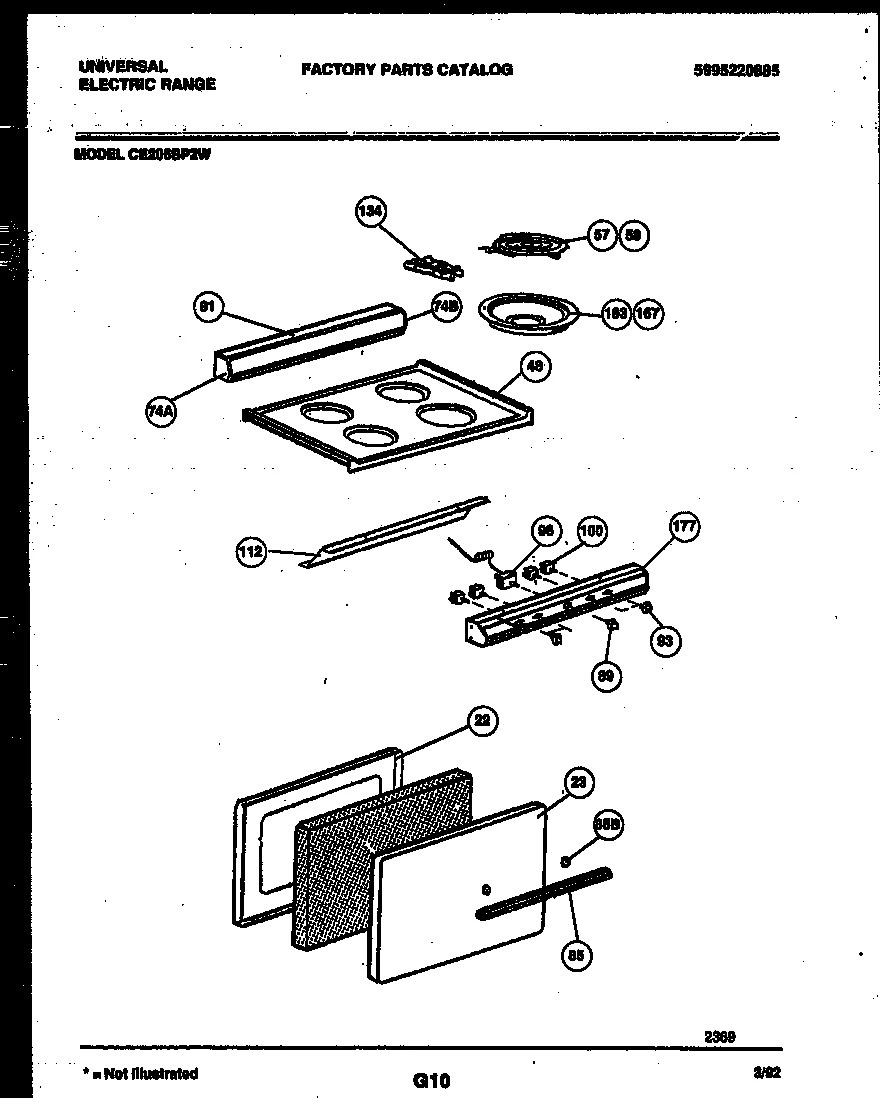

COOKTOP, BACKGUARD AND DOOR PARTS
Parts in COOKTOP, BACKGUARD AND DOOR PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 22 | – | 5303285913 LINER-OVEN DOOR | - |
| 23 |  | PANEL-OVEN DOOR, WHITE | - |
| 23 | – | 5303285916 PANEL-OVEN DOOR, ALMOND | - |
| 48 | – | 5303285938 TOP-MAIN, ALMOND | - |
| 48 | | TOP-MAIN, WHITE | - |
| 57 |  | 318372210replaces 5303015716 ELEMENT-SURFACE,SMALL/6 INCH | $13.04 Part Advantage |
| 58 |  | 316442300replaces 5303015715 ELEMENT-SURFACE,LARGE/8 INCH | $13.04 Part Advantage |
| 74 | | 5303285854replaces 5303285714 END CAP, BACKGUARD, LH | - |
| 74 |  | 5303285855replaces 5303285715 END CAP, BACKGUARD, RH | - |
| 81 | – | 5303285935 PANEL-BACKGUARD, ALMOND | - |
| 81 | – | 5303285934 PANEL-BACKGUARD, WHITE | - |
| 85 | | 5303285740NLA Spacer,handle ,white ,oven door ,(2) | Discontinued |
| 85 | | HANDLE-OVEN DOOR | - |
| 89 |  | KNOB-THERMOSTAT | - |
| 93 |  | KNOB-CONTROL | $55.97 Parts Dr |
| 96 | | THERMOSTAT-OVEN | Discontinued |
| 100 |  | 5303935086replaces 5303285954 SWITCH-SURFACE UNIT, SMALL | $25.83 Part Advantage |
| 100 | | 5303935086replaces 5303286367 SWITCH-SURFACE UNIT, LARGE | $25.83 Part Advantage |
| 112 | – | 5303285969 COVER-SWITCH | - |
| 134 |  | 5303935058replaces 5303285957 RECEPTACLE-TOP ELEMENTS, (4) | $4.24 Part Advantage |
| 163 |  | 316048414replaces 5303205285 PAN-SURFACE ELEMENT, SMALL/6 INCH | $3.85 Part Advantage |
| 167 |  | 316048413replaces 5303013588 PAN-SURFACE ELEMENT, LARGE/8 INCH, (2) | $4.19 Part Advantage |
| 177 | – | 5303285944 PANEL-CONTROL, WHITE | - |
| 177 | – | 5303285945 PANEL-CONTROL, ALMOND | - |
| *69112 | – | 3051113 BEZEL, NAMEPLATE | - |
| *69112 | – | 5303285988 SWITCH-OVEN LIGHT | - |
| *69112 | – | 5303285919 INSULATION-OVEN DOOR | - |
| *69112 | | INDICATOR LIGHT (5) | - |
| *69112 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
