Model
Universal CE302BP2W1
Range/Oven, Electric, Freestanding
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
CE302BP2W1Range/Oven, Electric, Freestanding
6 diagrams111 parts

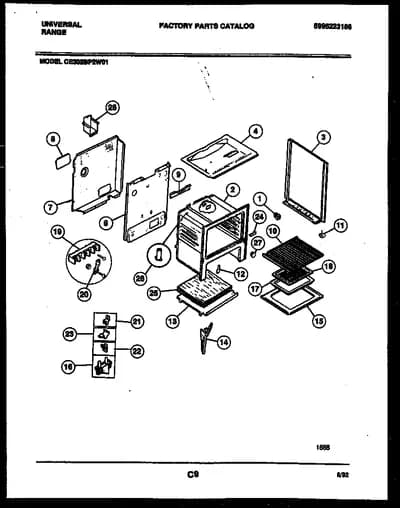

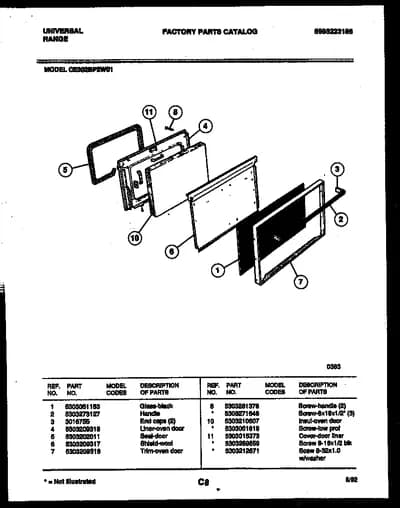

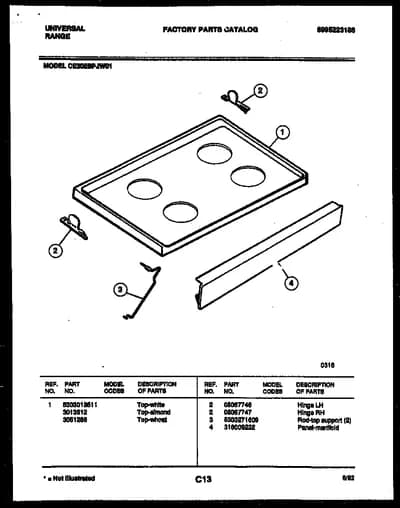

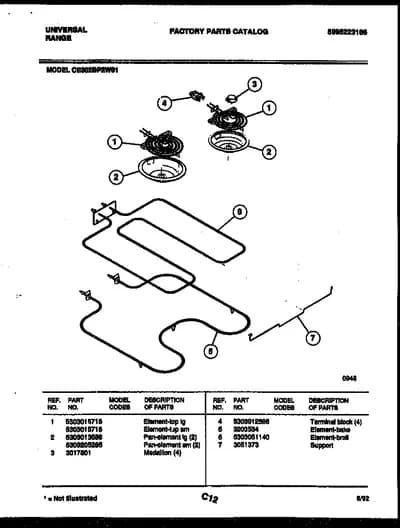

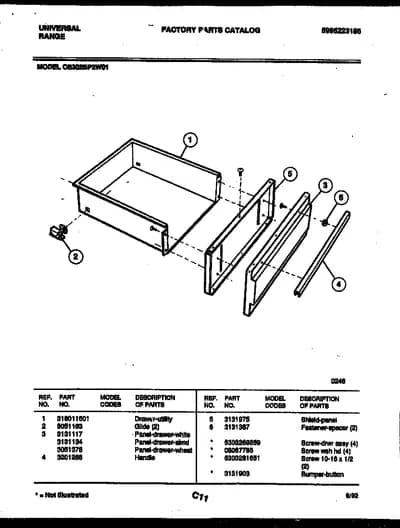

Parts Sections (6)
Diagram

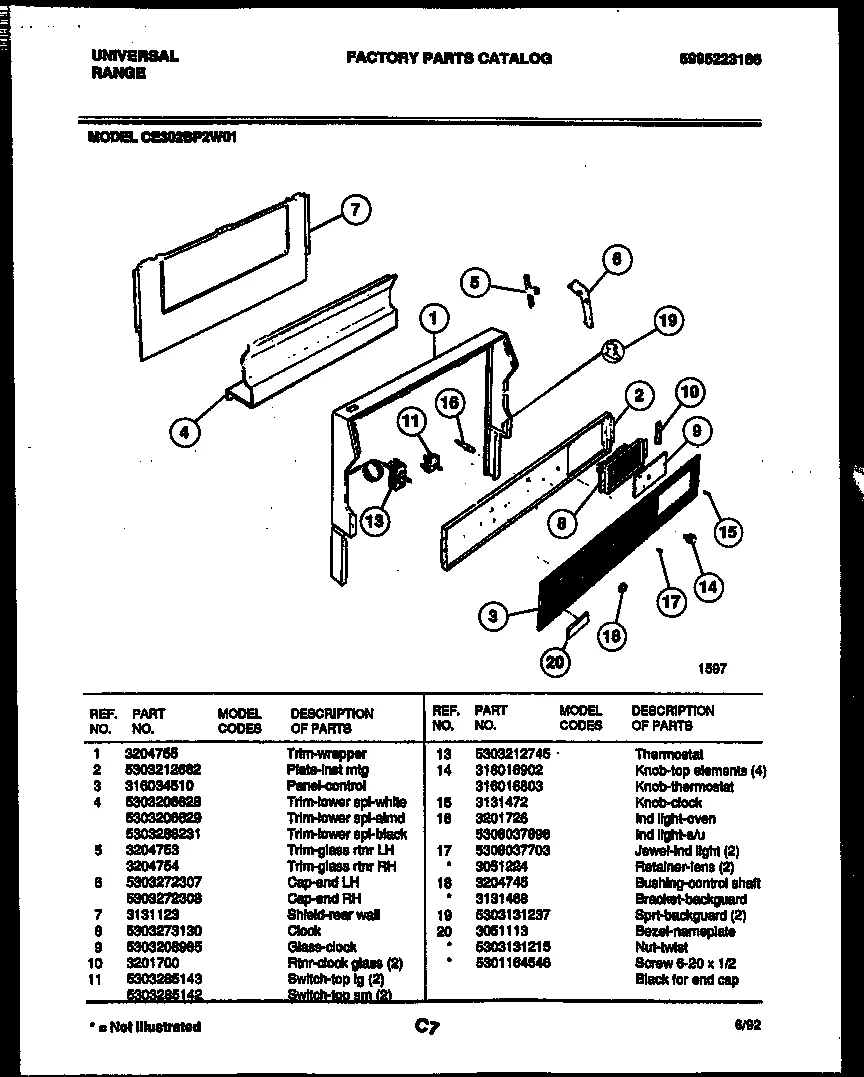

BACKGUARD
Parts in BACKGUARD
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3204755 TRIM, WRAPPER | - |
| 2 | – | 5303212662 PLATE, INSTRUMENT MTG | - |
| 3 | – | 316034510 PANEL-CONTROL, METAL | - |
| 4 | – | 5303206628 TRIM - LWR SPLASHER (WHITE) | - |
| 4 | – | 5303206629 TRIM-LOWER SPLASHER-ALMOND | - |
| 4 | – | 5303288231 TRIM-LOWER SPLASHER-BLACK | - |
| 5 | – | 3204753 TRIM-GLASS RETAINER,LH | - |
| 5A | – | 3204754 TRIM-GLASS RETAINER,RH | - |
| 6 |  | CAP-END, BLACK, LH | - |
| 6A | | CAP-END, BLACK, RH | - |
| 7 | | 5303289640replaces 3131123 SHIELD REAR WALL BIG (NON-ILLUSTRATED) | - |
| 8 | – | 5303273130 CLOCK-SINGLE STEM | - |
| 9 | – | 5303208985 LENS-CLOCK, GLASS | - |
| 10 | – | 3201700 RETAINER, CLOCK GLASS, (2) | - |
| 11 |  | 5303935086replaces 5303285143 SWITCH-TOP ELEMENT LG (2) | $25.83 Part Advantage |
| 11A | | 5303935086replaces 5303285142 SWITCH-TOP ELEMENT SM (2) | $25.83 Part Advantage |
| 13 | | THERMOSTAT-OVEN | - |
| 14 |  | KNOB-CONTROL, INFINITE SW | Discontinued |
| 14A | – | 316016803 KNOB-THERMOSTAT | - |
| 15 | | 3131472NLA KNOBS-CLOCK (3) | Discontinued |
| 16 | | 3201726NLA LIGHT/LAMP, INDICATOR, CLEAR, 250 V, CLEAN (NON-ILLUSTRATED) | Discontinued |
| 16A | | INDICATOR LIGHT | - |
| 17 | | JEWEL - LENS - AMBER (NON-ILLUSTRATED) | - |
| 17A | – | 3051224 RETAINER - LENS IND LT (NON-ILLUSTRATED) | - |
| 18 | – | 3204745 BUSHING-CONTROL SHAFT (NON-ILLUSTRATED) | - |
| 18A | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 19 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 20 | – | 3051113 BEZEL, NAMEPLATE | - |
| *48997 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
| *48997 | – | 5301164546 SCREW 6-20 X 1/2 BLACK FOR END CAP | - |
