Model
Electrolux CEW30IF6ISB
Range/Oven, Induction, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
CEW30IF6ISBRange/Oven, Induction, Freestanding, 30 Inch
4 diagrams120 parts
Parts Sections (4)
Diagram

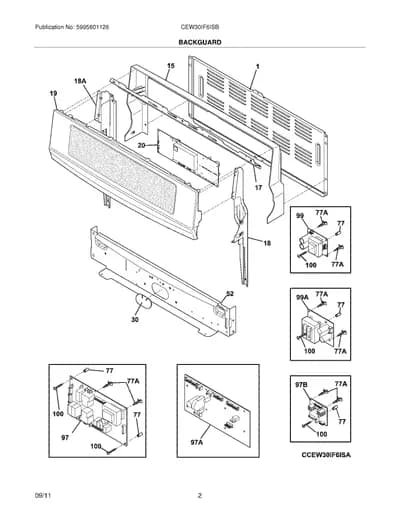

BACKGUARD
Parts in BACKGUARD
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, REAR WALL | - |
| 15 | | WRAPPER, BACKGUARD, BLACK | - |
| 17 | – | 316500301 SHIELD, UPPER, BACKGUARD | - |
| 18 | – | 316526000 CHANNEL, SUPPORT, RH, BACKGUARD | - |
| 18A | – | 316526001 CHANNEL, SUPPORT, LH, BACKGUARD | - |
| 19 | | CONTROL PANEL ASSEMBLY, USER INTERFACE, W/SS TRIM | - |
| 20 | | 316576644NLA CLOCK/TIMER, ELECTRONIC, ES630A | Discontinued |
| 30 | | Plug,oval ,harness | $7.39 RepairClinic |
| 52 | – | 316509805 SHIELD, BACKGUARD, BLACK, INNER | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 |  | BOARD, RELAY, OVEN CONTROL | $238.15 Parts Dr |
| 97A | | 316576414NLA BOARD, POWER, UIB | Discontinued |
| 97B |  | BOARD, VARIABLE SPEED, TRIAC | $152.44 Parts Dr |
| 99 |  | BOARD, POWER SUPPLY, 8V, (2) | $213.54 Parts Dr |
| 99A |  | BOARD, POWER SUPPLY | $134.76 Parts Dr |
| 100 |  | Screw,truss sqdr ,8A x 1" ,62*^Screw,truss sqdr ,8A x 1" ,62* | $2.24 RepairClinic |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI | | SCREW, TRUSS HD, 8-16 X 1.5, (10) | - |
| NI | – | 316304600 PLATE, MOUNTING, POWER BOARD | - |
| NI | | HARNESS, WIRING, UIB, TO FILTER BOARD | - |
| NI | | HARNESS, WIRING, BACKGUARD | - |
| NI | | Retainer,wire ,p-lock ,stick on | - |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
