Model
Frigidaire CFEF3056USE
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelFrigidaire
CFEF3056USEElectric Range
4 diagrams119 parts
Parts Sections (4)
Diagram
BACKGUARD
Parts in BACKGUARD
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 13A |  | Switch,infinite ,warmer | $45.53 Part Advantage |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 15 |  | Cap,end ,black ,RH | $41.91 Parts Dr |
| 15A |  | Cap,end ,black ,LH | $24.79 RepairClinic |
| 19 |  | Panel control | - |
| 20 | | Clock,ES330ISB | - |

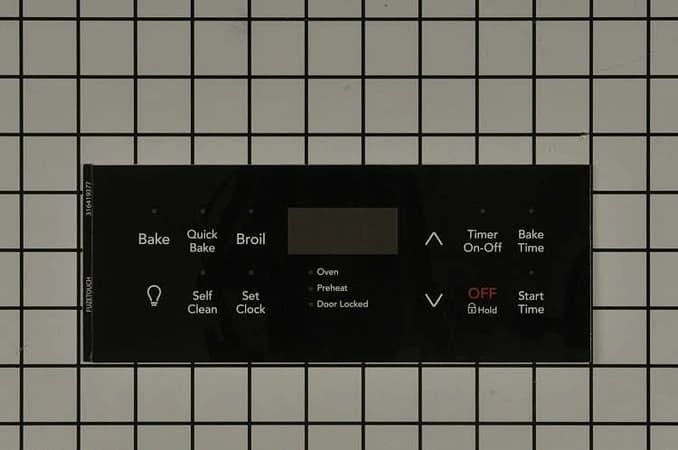

| 20A |  | Overlay,clock ,black ,ES330 | $23.31 Parts Dr |
| 28 |  | Insulation,manifold panel | - |
| 30 |  | Plug,button ,oval ,harness | - |
| 31 |  | Knob,stainless | $39.61 Parts Dr |
| 46 |  | Lens-light/lamp,indicator ,clear | $6.04 Part Advantage |
| 54 |  | Switch,infinite ,small element | $42.55 Part Advantage |
| 54B |  | Switch,infinite radian ,dual | $56.40 Part Advantage |
| 56 |  | Shield,backguard ,black ,inner | - |
| 57 | | Shield,steam | - |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | Screw,10-16 x .486 | $7.79 Part Advantage |
