Model
Universal CG240SP2W1
Range/Oven, Gas, Freestanding, 24 Inch
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
CG240SP2W1Range/Oven, Gas, Freestanding, 24 Inch
3 diagrams73 parts
Parts Sections (3)
Diagram

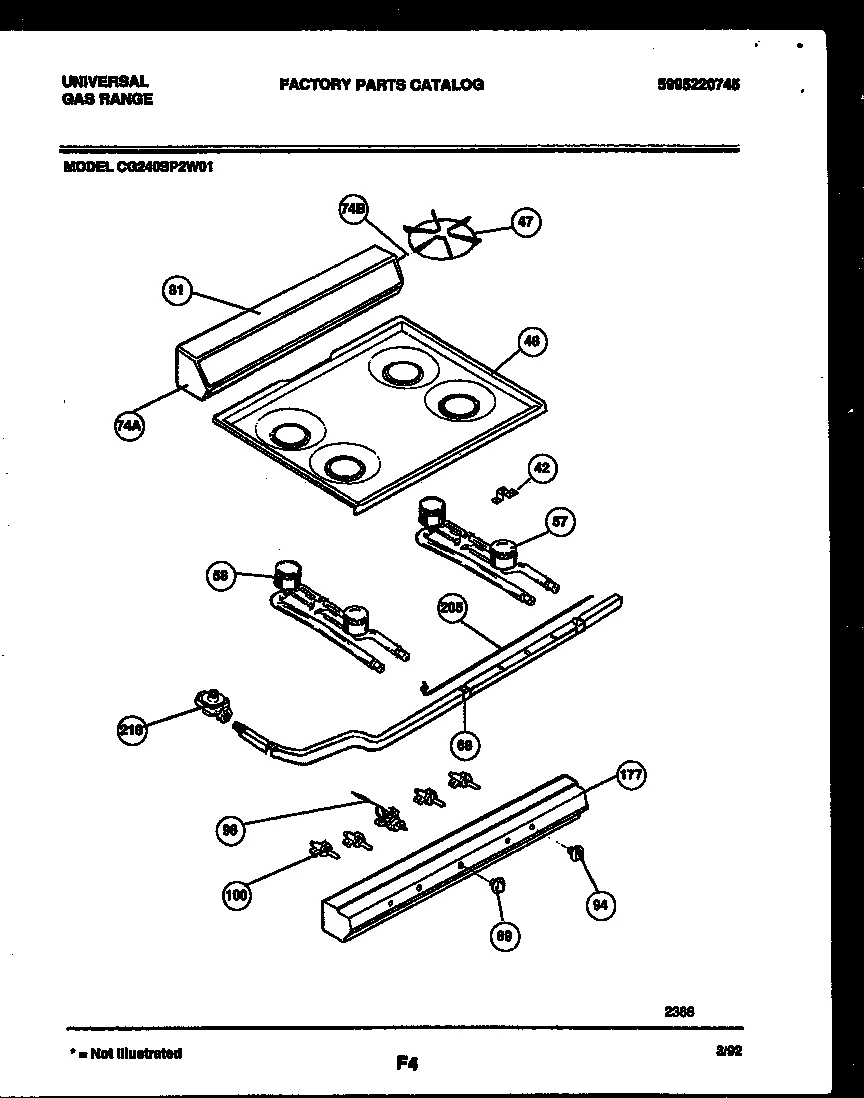

COOKTOP AND BURNER PARTS
Parts in COOKTOP AND BURNER PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 42 | – | 5303285718 Shield,top pilot ,(2) | - |
| 47 |  | 5303285720NLA Grate,top burner ,(4) | Discontinued |
| 48 | | 5303285702NLA TOP-MAIN (WHITE) | Discontinued |
| 48 | – | 4202185703 TOP-MAIN (ALMOND) | - |
| 57 | – | 5303285721 TOP BURNER (FRONT) | - |
| 58 | – | 5303285722 TOP BURNER (REAR) | - |
| 68 | – | 5303285723 MANIFOLD PIPE | - |
| 74A | | 5303285854replaces 5303285714 END CAP, BACKGUARD, LH | - |
| 74B |  | 5303285855replaces 5303285715 END CAP, BACKGUARD, RH | - |
| 81 | – | 5303285713 PANEL-BACKGUARD, SHELL, ALMOND | - |
| 81 | – | 5303285712 PANEL-BACKGUARD, SHELL, WHITE | - |
| 89 | | 5303285724NLA KNOB-THERMOSTAT | Discontinued |
| 94 | | KNOB-TOP BURNER | Discontinued |
| 96 | | THERMOSTAT-OVEN | - |
| 100 | | VALVE-TOP BURNER | - |
| 177 | – | 5303285704 CONTROL PANEL (WHITE) | - |
| 177A | – | 5303285705 CONTROL PANEL (ALMOND) (NON-ILLUSTRATED) | - |
| 205 | | Pilot Assembly,top burner | - |
| 218 |  | 5308007974replaces 5303285729 REGULATOR-PRESSURE | $266.52 RepairClinic |
| *52583 | – | 3051113 BEZEL, NAMEPLATE | - |
| *52583 | – | 5303285788 CLIP-BACKGUARD, TINNERMAN | - |
| *52583 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
