Model
Universal CG301SP2W1
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
CG301SP2W1Range/Oven, Gas, Freestanding, 30 Inch
6 diagrams105 parts
Parts Sections (6)
Diagram

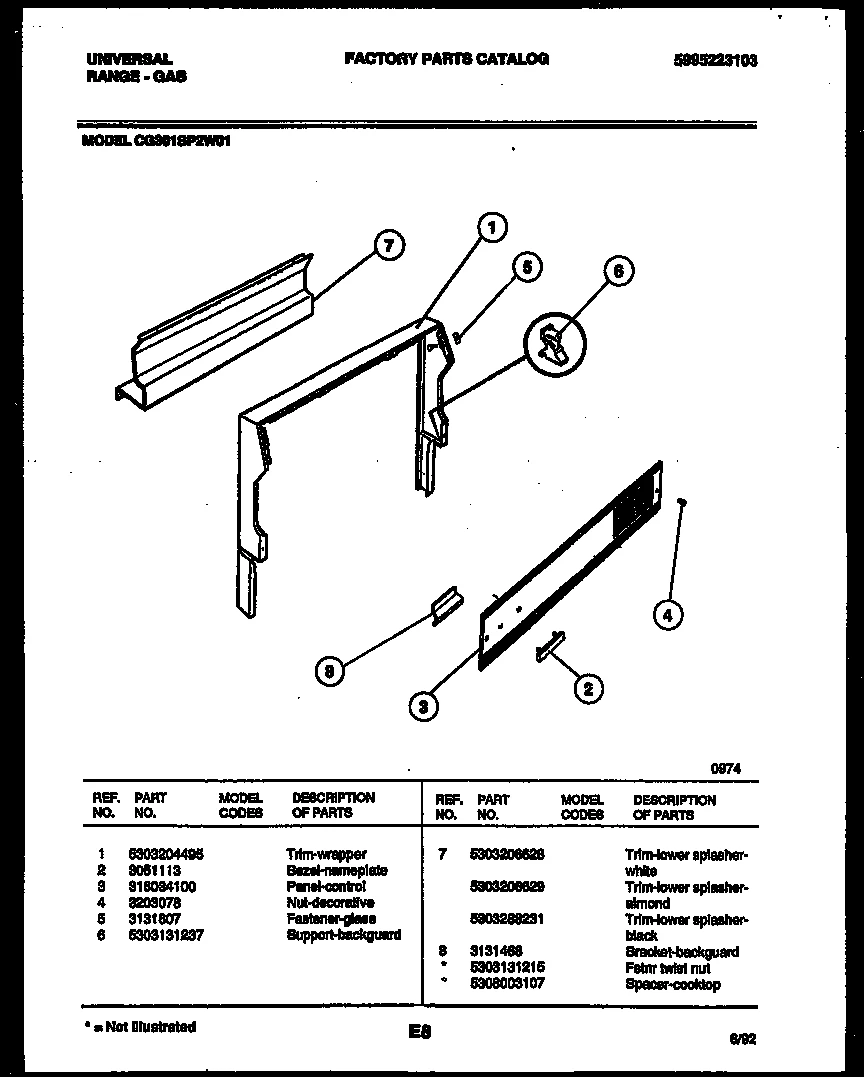

BACKGUARD
Parts in BACKGUARD
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303204495 TRIM-WRAPPER, BLACK | - |
| 2 | – | 3051113 BEZEL, NAMEPLATE | - |
| 3 | – | 316034100 PANEL-CONTROL, METAL | - |
| 4 |  | NUT-DECORATIVE (2) | - |
| 5 | | FASTENER, GLASS (2) | - |
| 6 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 7 | – | 5303288231 TRIM-LOWER SPLASHER-BLACK | - |
| 7 | – | 5303206629 TRIM-LOWER SPLASHER-ALMOND | - |
| 7 | – | 5303206628 TRIM - LWR SPLASHER (WHITE) | - |
| 8 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| *58416 | | 5308003107NLA SPACER, CONTROL PANEL (NON-ILLUSTRATED) | Discontinued |
| *58416 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
