ModelUniversal
CP200SP2W1Range/Oven, Gas, Freestanding
3 diagrams77 parts
Parts Sections (3)
Diagram

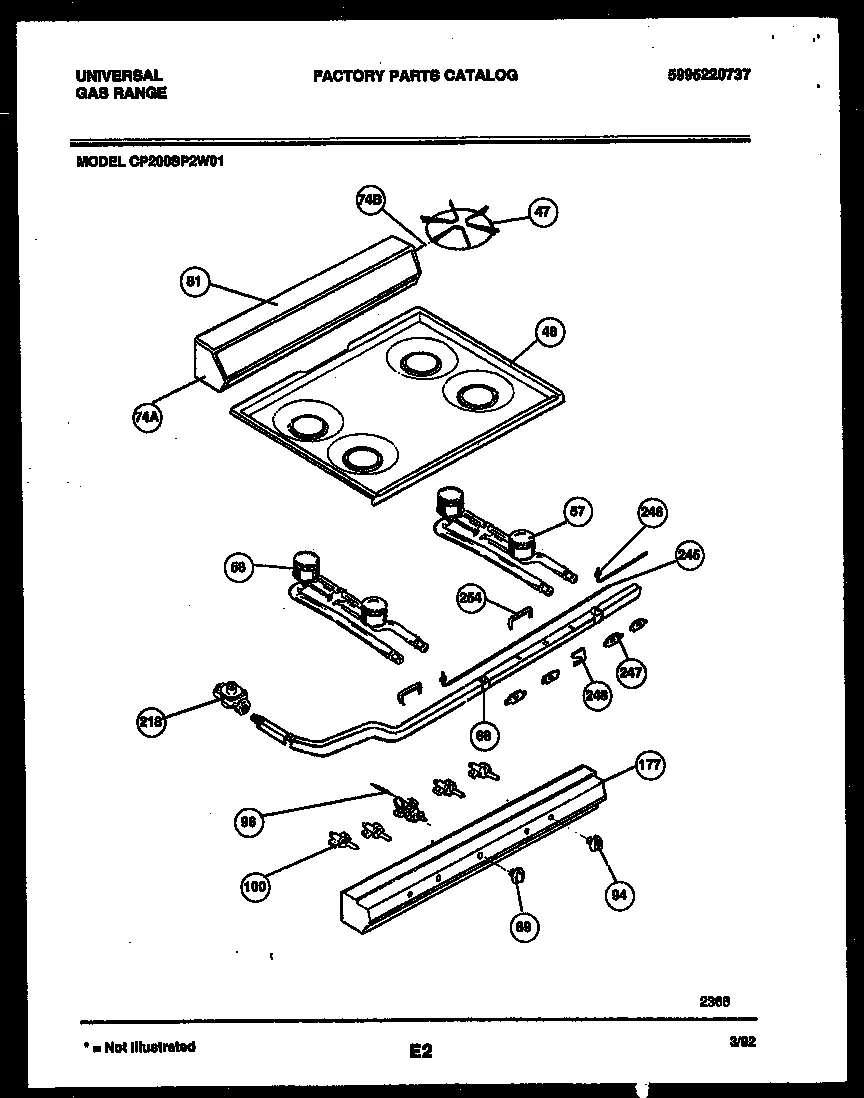

COOKTOP AND BURNER PARTS
Parts in COOKTOP AND BURNER PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 47 |  | 5303285720NLA Grate,top burner ,(4) | Discontinued |
| 48 | | TOP-MAIN (WHITE) | - |
| 48 | | 5303285853NLA PANEL-BROILER DRAWER, ALMOND | Discontinued |
| 57 | – | 5303285721 TOP BURNER (FRONT) | - |
| 58 | – | 5303285722 TOP BURNER (REAR) | - |
| 68 | – | 5303285723 MANIFOLD PIPE | - |
| 74A | | END CAP, BACKGUARD, LH | - |
| 74B |  | END CAP, BACKGUARD, RH | - |
| 81 | – | 5303825856 BACKGUARD SHELL (WHITE) | - |
| 81 | – | 5303285857 PANEL-BACKGUARD, SHELL, ALMOND | - |
| 89 | | 5303285724NLA KNOB-THERMOSTAT | Discontinued |
| 94 | | KNOB-TOP BURNER | Discontinued |
| 96 | – | 5303285787 THERMOSTAT-OVEN | - |
| 100 | | VALVE-TOP BURNER | - |
| 177 | – | 5303285858 CONTROL PANEL (WHITE) | - |
| 177 | – | 5303285859 CONTROL PANEL (ALMOND) | - |
| 218 |  | 5308007974replaces 5303285729 REGULATOR-PRESSURE | $266.52 RepairClinic |
| 245 | | Lead,spark ignitor ,LH | - |
| 246 | | 5303285780NLA Lead,spark ignitor ,RH | Discontinued |
| 247 | | SWITCH-IGNITOR, TOP BURNER | - |
| 248 | | 5303285786NLA SWITCH-IGNITOR, OVEN BURNER | Discontinued |
| 254 | – | 5303285777 Bracket,spark gap ,(2) | - |
| *52493 | – | 3051113 BEZEL, NAMEPLATE | - |
| *52493 | – | 5303285789 CLIP-SPARK IGNITOR | - |
| *52493 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
