ModelUniversal
CP302BP2W1Range/Oven, Gas, Freestanding
6 diagrams121 parts
Parts Sections (6)
Diagram

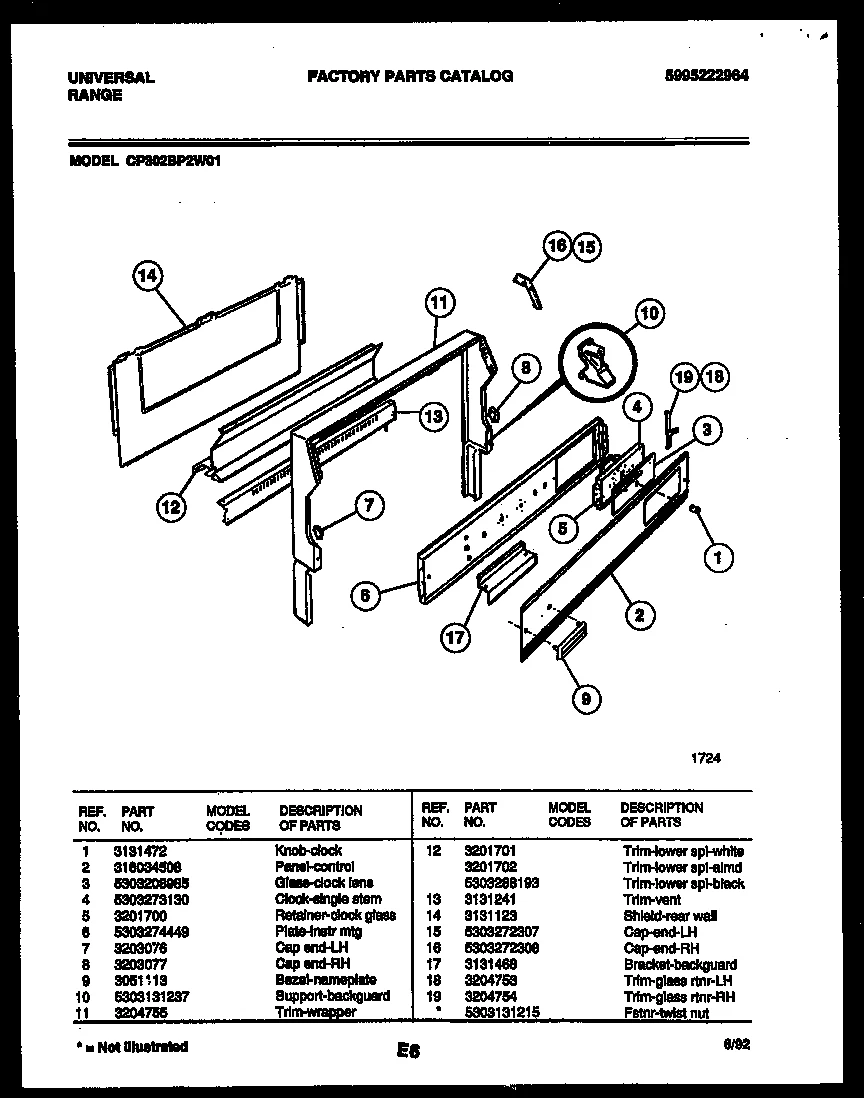

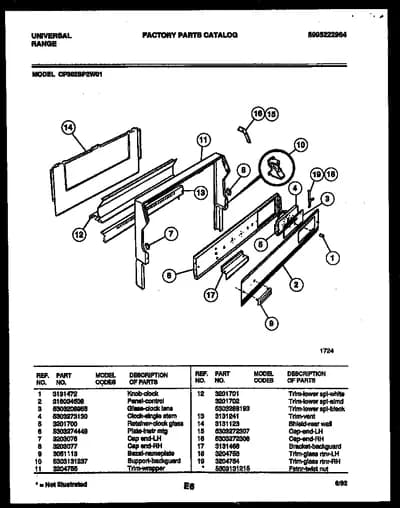

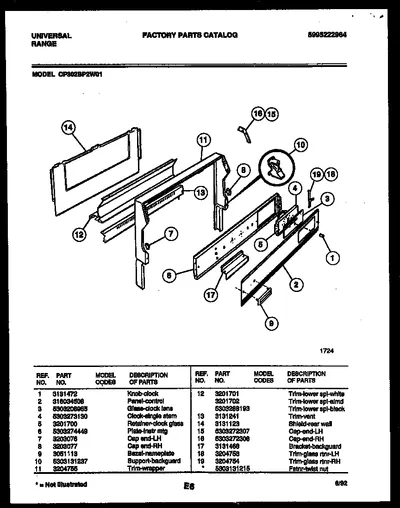

BACKGUARD
Parts in BACKGUARD
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 3131472NLA KNOBS-CLOCK (3) | Discontinued |
| 2 | – | 316034508 PANEL-CONTROL, METAL | - |
| 3 | – | 5303208985 LENS-CLOCK, GLASS | - |
| 4 | – | 5303273130 CLOCK-SINGLE STEM | - |
| 5 | – | 3201700 RETAINER, CLOCK GLASS, (2) | - |
| 6 | – | 5303274449 PLATE-INSTRUCTION MOUNTING | - |
| 7 | – | 3203076 CAP END-LH | - |
| 8 | – | 3203077 CAP END-RH | - |
| 9 | – | 3051113 BEZEL, NAMEPLATE | - |
| 10 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 11 | – | 3204755 TRIM, WRAPPER | - |
| 12 | – | 3201702 TRIM-LOWER SPLASHER (ALMOND) | - |
| 12 | – | 3201701 TRIM-LOWER SPLASHER (WHITE) | - |
| 12 | – | 5303288193 TRIM-LOWER SPL-BLACK | - |
| 13 | – | 3131241 BACKGUARD SUPPORT | - |
| 14 | | 5303289640replaces 3131123 SHIELD REAR WALL BIG (NON-ILLUSTRATED) | - |
| 15 | | CAP-END, BLACK, LH | - |
| 16 | | CAP-END, BLACK, RH | - |
| 17 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 18 | – | 3204753 TRIM-GLASS RETAINER,LH | - |
| 19 | – | 3204754 TRIM-GLASS RETAINER,RH | - |
| *54141 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
