Model
Universal CP303VP2W01
Range/Oven, Gas, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
CP303VP2W01Range/Oven, Gas, Freestanding
5 diagrams105 parts
Parts Sections (5)
Diagram

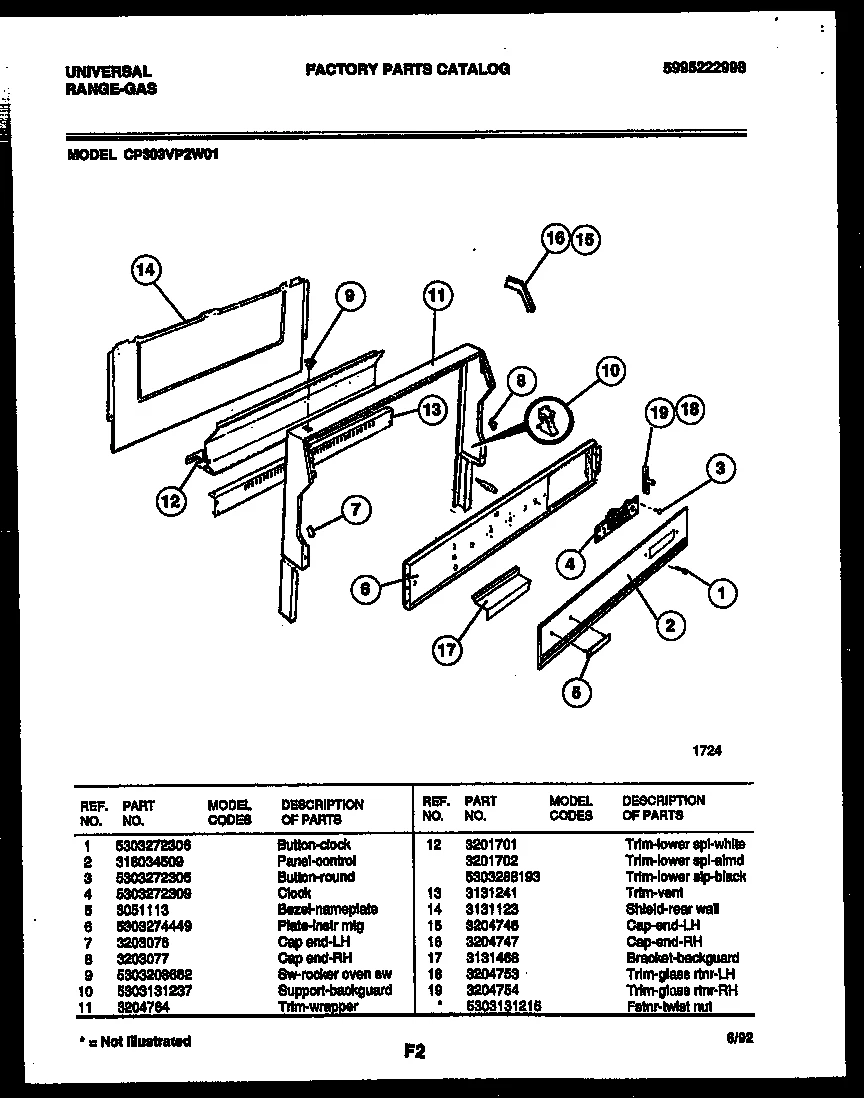

BACKGUARD
Parts in BACKGUARD
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Push Button,clock set ,black ,(2) | - |
| 2 | – | 316034509 PANEL, CONTROL, METAL | - |
| 3 | | BUTTON-SELECTOR, CLOCK/TIMER, BLACK | - |
| 4 | | CLOCK/TIMER, ELECTRONIC | - |
| 5 | – | 3051113 BEZEL, NAMEPLATE | - |
| 6 | – | 5303274449 PLATE-INSTRUCTION MOUNTING | - |
| 7 | – | 3203076 CAP END-LH | - |
| 8 | – | 3203077 CAP END-RH | - |
| 9 |  | 5308015487replaces 5303208662 SWITCH-FLUO LIGHT-OVEN LIGHT (2) | $42.52 ApplianceParts Pro |
| 10 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 11 | – | 3204764 TRIM-WRAPPER | - |
| 12 | – | 3201701 TRIM-LOWER SPLASHER (WHITE) | - |
| 12 | – | 3201702 TRIM-LOWER SPLASHER (ALMOND) | - |
| 12 | – | 5303288193 TRIM-LOWER SPL-BLACK | - |
| 13 | – | 3131241 BACKGUARD SUPPORT | - |
| 14 | | 5303289640replaces 3131123 SHIELD REAR WALL BIG (NON-ILLUSTRATED) | - |
| 15 | | END CAP, CHROME, LH | - |
| 16 | – | 3204747 END CAP, CHROME, RH | - |
| 17 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 18 | – | 3204753 TRIM-GLASS RETAINER,LH | - |
| 19 | – | 3204754 TRIM-GLASS RETAINER,RH | - |
| *54237 | | FASTENER, TWIST NUT, CHANNEL SUPPORT, LEFT AND RIGHT (4) | - |
