Model
Universal DB700P1-00
Dishwasher, Built-In, 24 Inch
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
DB700P1-00Dishwasher, Built-In, 24 Inch
7 diagrams156 parts
Parts Sections (7)
Diagram

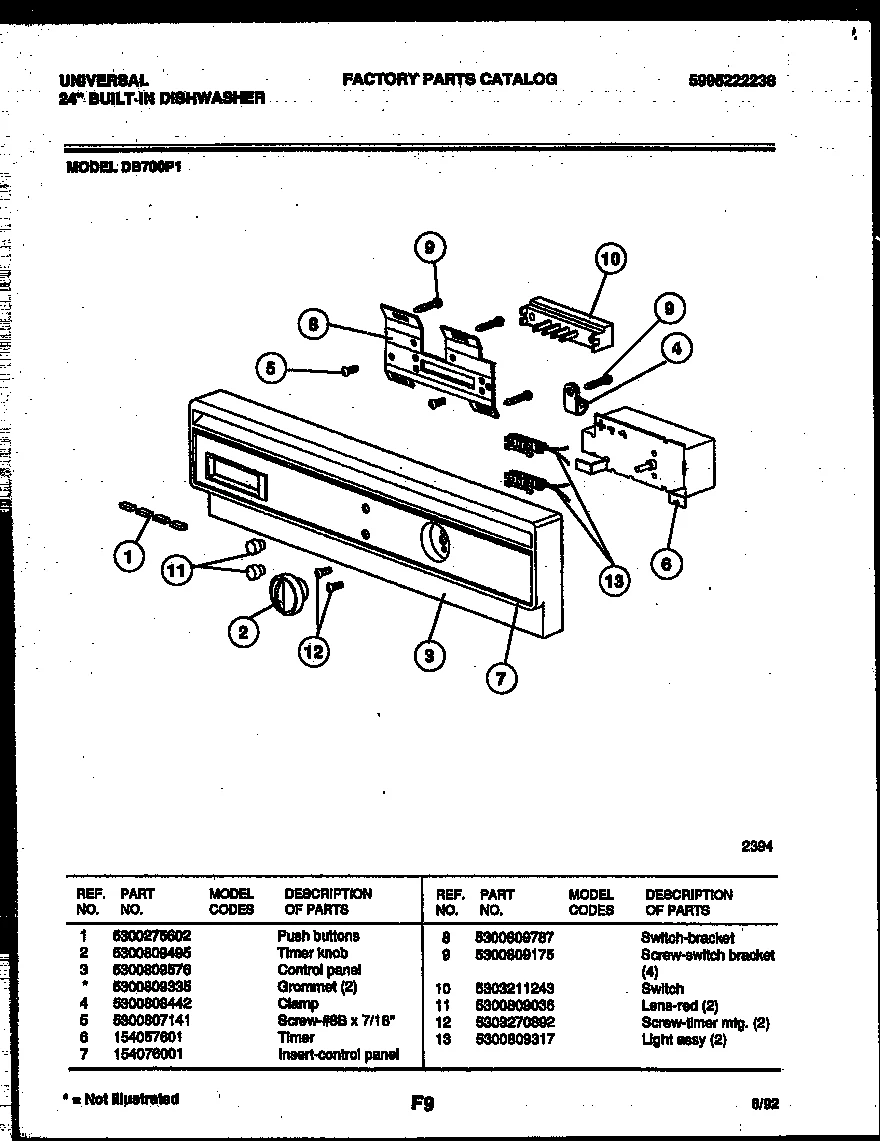

CONSOLE AND CONTROL PARTS
Parts in CONSOLE AND CONTROL PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PUSH BUTTONS (4) | - |
| 2 | | KNOB-CONTROL | - |
| 3 | | 5300809576NLA PANEL - CONTROL | Discontinued |
| 3A | – | 5300809335 GROMMET (2) (NON-ILLUSTRATED) | - |
| 4 |  | 240396801replaces 5300808442 CLAMP (2) (NON-ILLUSTRATED) | $14.76 ApplianceParts Pro |
| 5 | – | 5300807141 SCREW NO. 6-30 X 3/8`` LG. PAN HD, CAD. PL. | - |
| 6 | | 154057601NLA TIMER | Discontinued |
| 7 | – | 154076001 INSERT-CONTROL PANEL | - |
| 8 | – | 5300809787 SWITCH-BRACKET | - |
| 9 | | SCREW 8B X 7/16`` | - |
| 10 | – | 5303211243 SWITCH | - |
| 11 | | LENS-RED (2) | - |
| 12 | | SCREW-TIMER MTG. (2) | - |
| 13 | | LIGHT ASSEMBLY-PILOT | - |
