Model
Universal DP400PW1
Dishwasher, Portable, 24 Inch
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
DP400PW1Dishwasher, Portable, 24 Inch
6 diagrams109 parts
Parts Sections (6)
Diagram

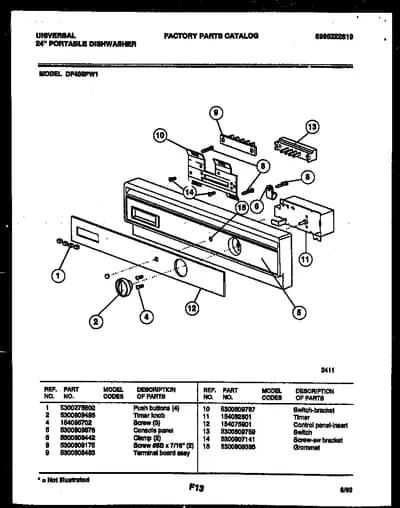

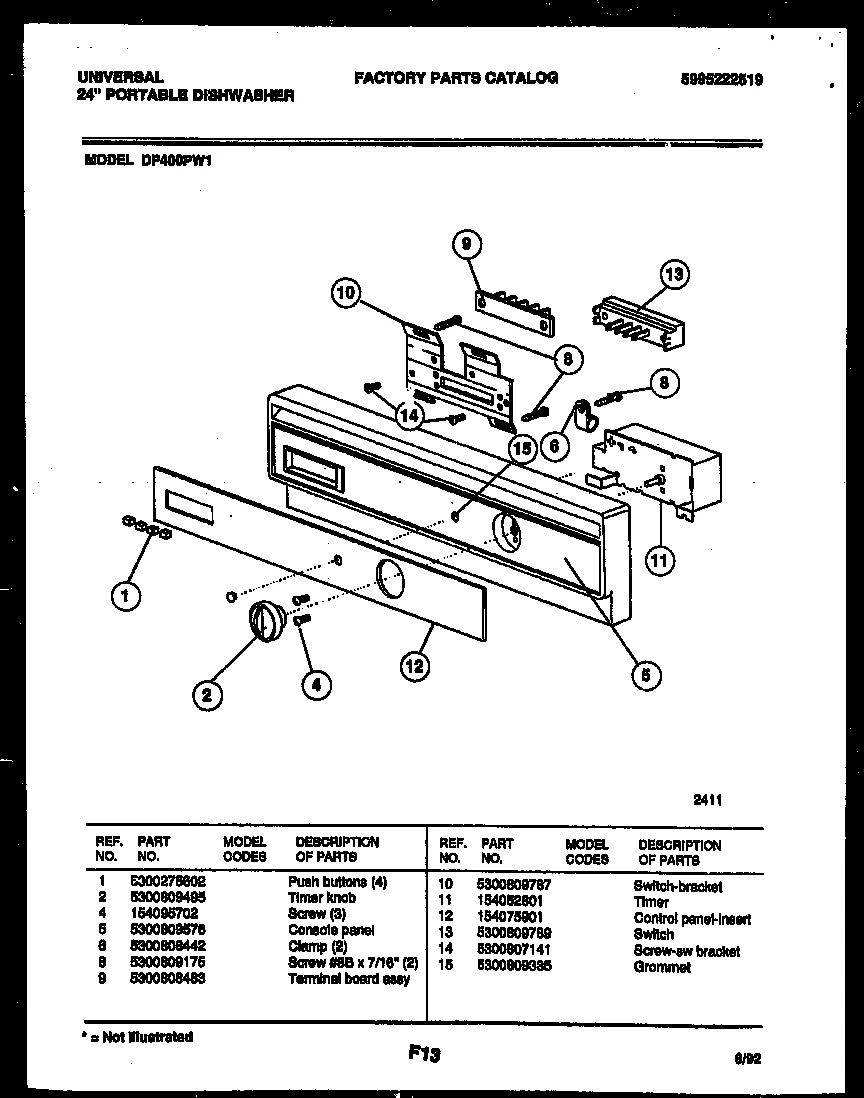

CONSOLE AND CONTROL PARTS
Parts in CONSOLE AND CONTROL PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PUSH BUTTONS (4) | - |
| 2 | | KNOB-CONTROL | - |
| 4 | – | 154095702 SCREW-TIMER MTG. (2) | - |
| 5 | | 5300809576NLA PANEL - CONTROL | Discontinued |
| 6 |  | 240396801replaces 5300808442 CLAMP (2) (NON-ILLUSTRATED) | $14.76 ApplianceParts Pro |
| 8 | | SCREW 8B X 7/16`` | - |
| 9 | – | 5300808483 TERMINAL BOARD ASSEMBLY | - |
| 10 | – | 5300809787 SWITCH-BRACKET | - |
| 11 |  | 154052803replaces 154052801 TIMER | - |
| 12 | – | 154075901 INSERT-CONTROL PANEL | - |
| 13 | | SWITCH - SELECTOR | - |
| 14 | – | 5300807141 SCREW NO. 6-30 X 3/8`` LG. PAN HD, CAD. PL. | - |
| 15 | – | 5300809335 GROMMET (2) (NON-ILLUSTRATED) | - |
