Model
Electrolux E15IM60EBS0
Ice Maker, Undercounter
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E15IM60EBS0Ice Maker, Undercounter
2 diagrams46 parts
Parts Sections (2)
Diagram

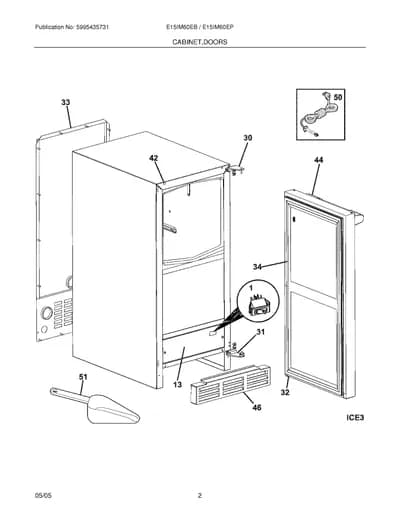

CABINET/DOORS
Parts in CABINET/DOORS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304446639NLA Switch,cycle selector ,rocker | Discontinued |
| 13 | – | 5304446649 Panel,front ,lower | - |
| 30 | | 5304446664NLA Hinge,top RH | Discontinued |
| 31 | – | 5304446665 Hinge,bottom RH | - |
| 32 | – | 5304446666 Plate,door pivot | - |
| 33 | – | 5304446667 Panel,back | - |
| 34 | – | 5304446668 Gasket,door | - |
| 42 | – | 5304446611 Plug,hinge holes ,top/bottom | - |
| 44 | | Door Assembly,Designer ,with handle | - |
| 46 | – | 5304446674 Grille,kick plate | - |
| 50 | – | 5304446676 Power Cord,electric svce | - |
| 51 | | Scoop,ice | - |
| NI | – | 5304446640 Wire,rocker switch | - |
| NI | | Door Closer | - |
