Model
Electrolux E24WC160ES1
Refrigerator, Wine Cooler
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E24WC160ES1Refrigerator, Wine Cooler
1 diagram51 parts
Parts Sections (1)
Diagram

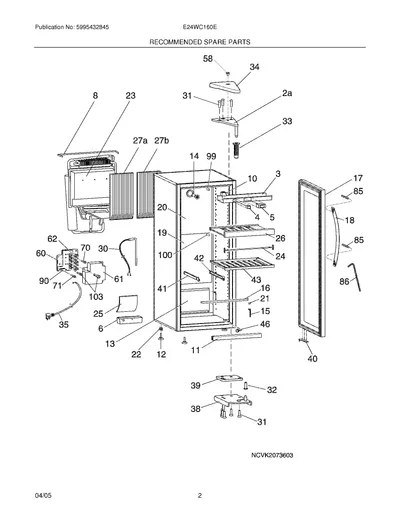

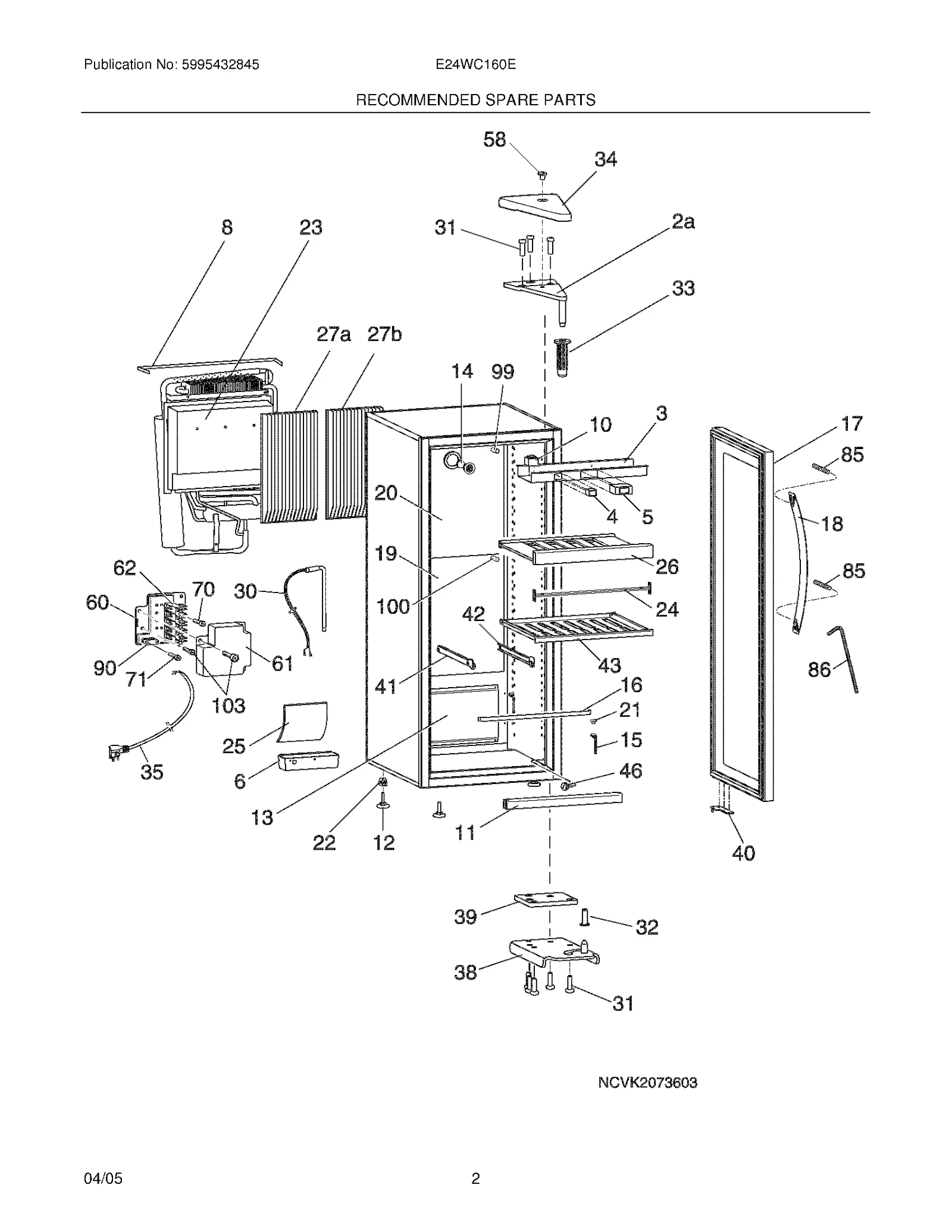

RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2A | – | 295522602 Hinge,door ,upper | - |
| 3 |  | Panel,control console ,115 V | - |
| 4 | – | 295524401 Switch,toggle | - |
| 5 | – | 295544701 Control,temperature | - |
| 6 | – | 295536401 Drip Tray | - |
| 8 | | Distance Bar,wall spacer ,cabinet rear | - |
| 10 | | Transformer,115V/12V | - |
| 11 | – | 295527602 Support,floor | - |
| 12 | – | 295522501 Leveling Leg,screw | - |
| 13 | – | 295523206 Panel,cover/temp cont ,40 W ,127 V ,with heater | - |
| 14 | | Filter,ventilation ,charcoal | - |
| 15 | | Support,shelf ,with bumper | - |
| 16 | | Bar,detent ,metal ,heater panel | - |
| 17 | – | 295545801 Door,complete assy ,glas ,stainless steel | - |
| 18 | | Handle,door | - |
| 19 | – | 295538429 Panel,inside back ,lower | - |
| 20 | – | 295538428 Panel,inside back ,upper | - |
| 21 | | Bumper,shelf support ,rubber | - |
| 22 | – | 385805801 Nut,leveling foot ,M10 | - |
| 23 | | 293470610NLA Cooling Unit,absorption ,w/thermal fuse | Discontinued |
| 24 | – | 295538701 Bar,reiforcement ,shelf support | - |
| 25 | – | 295536301 Sponge,drip tray | - |
| 26 | | Shelf,wood | - |
| 27A | – | 295535801 Evaporator,left side | - |
| 27B | – | 295535802 Evaporator,right side | - |
| 30 | | Heater,defrost ,220 W ,115 V | - |
| 31 | – | 385805201 Screw,MRT ,M5 x 20 ,black | - |
| 32 | – | 295525501 Bushing,door hinge ,lower | - |
| 33 | – | 295525401 Bushing,door hinge ,upper | - |
| 34 | – | 295540001 Cover,hinge ,top | - |
| 35 | – | 200269915 Power Cord,electric svce | - |
| 38 | – | 295531101 Hinge,door ,lower | - |
| 39 | – | 295532601 Plate,hinge spacer | - |
| 40 | – | 295531301 Door Stop | - |
| 41 | | Guide,shelf support ,left side | - |
| 41 | – | 295529102 Guide,shelf support ,right side | - |
| 43 | | Shelf,sliding | - |
| 46 | – | 295532401 Screw,slotted ,plastic head ,black | - |
| 58 | – | 385802301 Screw,LKCS ,M5 x 6 | - |
| 60 | – | 295539601 Terminal Box,bottom plate | - |
| 61 | – | 295539701 Terminal Box,cover | - |
| 62 | | Terminal Block | - |
| 70 | – | 385800603 Screw,PT ,35 x 28 | - |
| 71 | – | 385800602 Screw,PT ,35 x 20 | - |
| 85 | – | 385807001 Screw,set ,M4 x 13 S6SS ,handle | - |
| 86 | – | 295546801 Allen Wrench,handle mounting ,2 mm | - |
| 90 | – | 293234201 Clamp,cable | - |
| 99 | – | 295525902 Spacer,sleeve ,upr back panel | - |
| 100 | – | 295525901 Spacer,sleeve ,lwr back panel | - |
| 103 | – | 385802001 Screw,DK4.8 x 16P ,zinc plated | - |
| NI | – | 825125200 Use & Care Guide,Trilingual | - |
