Model
Electrolux E24WC48EPS0
Refrigerator, Wine Cooler
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E24WC48EPS0Refrigerator, Wine Cooler
2 diagrams42 parts
Parts Sections (2)
Diagram

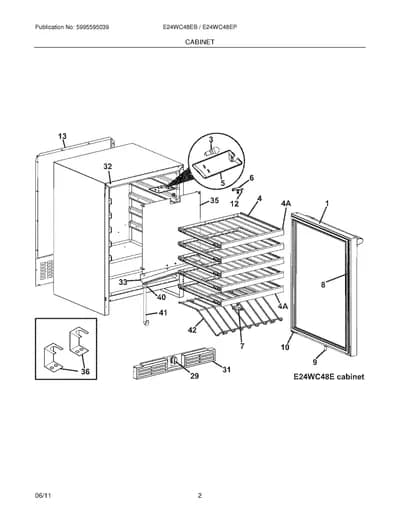

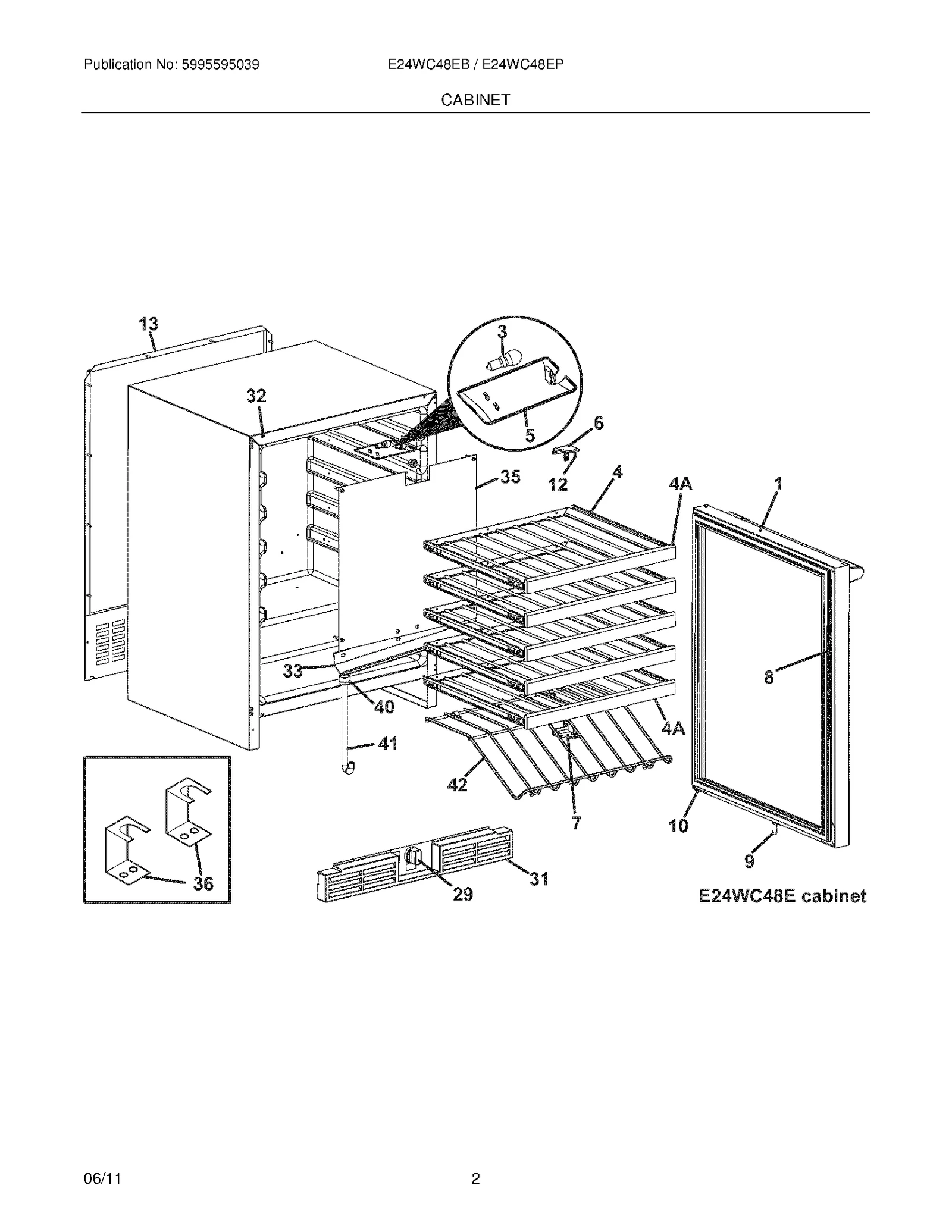

CABINET
Parts in CABINET
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304446583NLA Door Assembly,Professional ,with handle | Discontinued |
| 3 | | Lamp,light bulb | - |
| 4 | – | 5304446586 Rack,wine | - |
| 4A | – | 5304446622 Panel,rack front ,wood | - |
| 5 | – | 5304446587 Cover,lamp/light | - |
| 6 | | Hinge,top | - |
| 7 | | Hinge,bottom | - |
| 8 | | 5304446591NLA Gasket,door ,gray | Discontinued |
| 9 | – | 5304446592 Bracket,door switch | - |
| 10 | – | 5304446593 Plate,hinge pivot ,door bottom | - |
| 12 | | Pin,pivot post ,hinge | - |
| 13 | – | 5304446595 Panel,cabinet back | - |
| 29 | – | 5304446608 Knob,temp control | - |
| 31 | – | 5304446610 Grille,kick plate | - |
| 32 | – | 5304446611 Plug,hinge holes ,top/bottom | - |
| 33 | – | 5304446612 Trough,evap drain | - |
| 35 | – | 5304446613 EVAPORATOR | - |
| 36 | | Bracket,anti-tip | - |
| 40 | – | 5304446618 DRAIN CUP | - |
| 41 | – | 5304446619 Tube,drain | - |
| 42 | – | 5304446620 Rack,wine display | - |
| NI | – | 5304461819 Receptacle,lamp socket | - |
| NI | | Door Closer | - |
