Model
Electrolux E24WC75HPS0
Refrigerator, Wine Cooler
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E24WC75HPS0Refrigerator, Wine Cooler
4 diagrams99 parts
Parts Sections (4)
Diagram

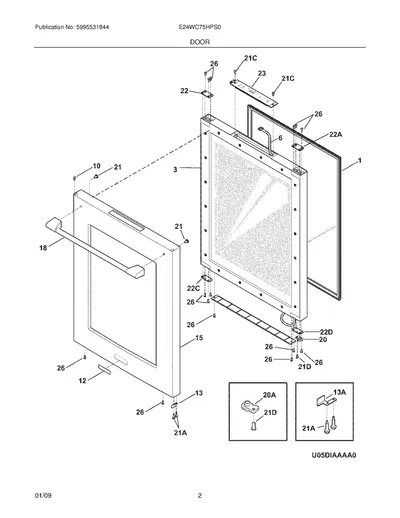

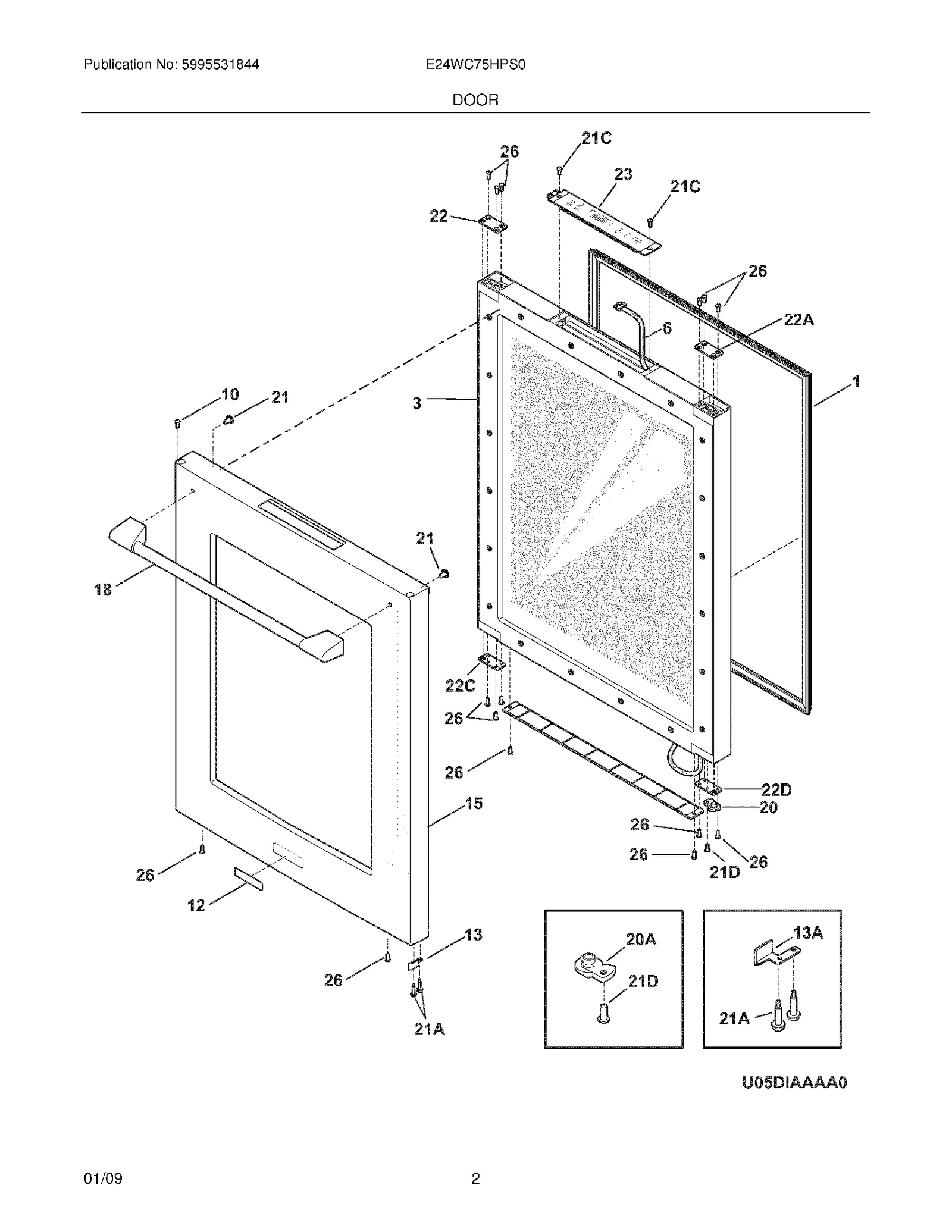

DOOR
Parts in DOOR
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Gasket-door,black | Discontinued |
| 3 | – | 7241879203 Door Assembly,glass ,w/framing | - |
| 6 |  | 241958501replaces 7241958501 Harness-wiring,door | - |
| 10 | – | 7241953401 Plug button,black | - |
| 12 |  | 241603101replaces 7241603101 Label,nameplate ,elux/icon | - |
| 13 | – | 7241866601 Door Stop,black ,RH | - |
| 13A |  | 241866602replaces 7241866602 Door Stop,black ,LH | - |
| 15 | – | 7241954602 Cover-door,stainless | - |
| 18 | – | 7241637915 Handle-door,stainless steel | - |
| 20 | | Door Closer,cam ,black RH ,upper | Discontinued |
| 20A | | 241866802replaces 7241866802 Door Closer,cam ,black LH ,upper | - |
| 21 |  | 240383407replaces 7240383408 Screw,truss hd quad ,10 x 16 ,black | $9.83 ApplianceParts Pro |
| 21A |  | 154518001replaces 7241906101 Screw-No.10 x 3/4 TEK | - |
| 21C | | 241918201replaces 7241918201 Screw,No.8-32 x 3/8 ,flat head | - |
| 21D |  | 134154100replaces 7241904601 Screw,No.10-32 x 1/4 | $10.31 Parts Dr |
| 21D | – | 7241947201 Washer-flat,.250 x 1.50 OD ,zinc | - |
| 22 | – | 7241866401 Plate-door,upper left | - |
| 22A | | 241866402replaces 7241866402 Plate-door,upper right | - |
| 22C | | 241866501replaces 7241866501 Plate-door,lower left | - |
| 22D | – | 7241866502 Plate-door,lower right | - |
| 23 | | Board-control,temp control | - |
| 26 |  | 215503203replaces 7215503203 Screw,cr pan hd ,10-16 x 0.500 | $4.09 Part Advantage |
| 40 | – | 7241866101 Cover-access | - |
