Model
Electrolux E30EW75DSS1
Wall Oven, Electric, Single, 30 Inch
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW75DSS1Wall Oven, Electric, Single, 30 Inch
3 diagrams129 parts
Parts Sections (3)
Diagram

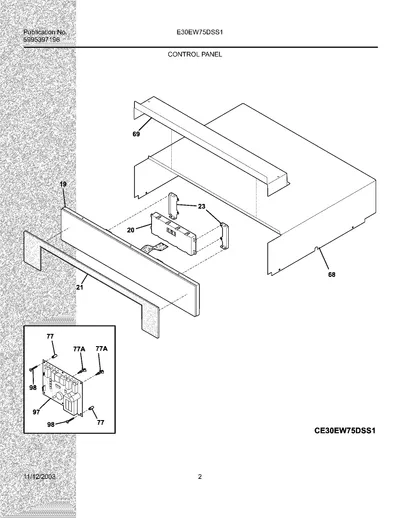

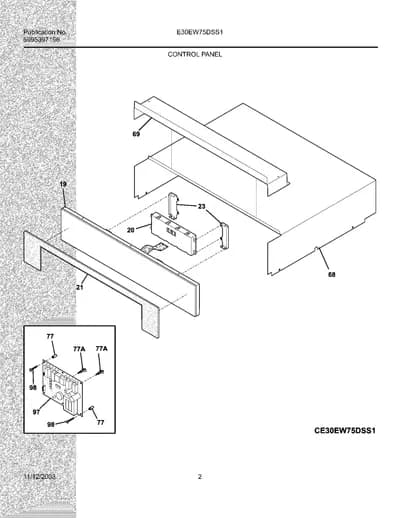

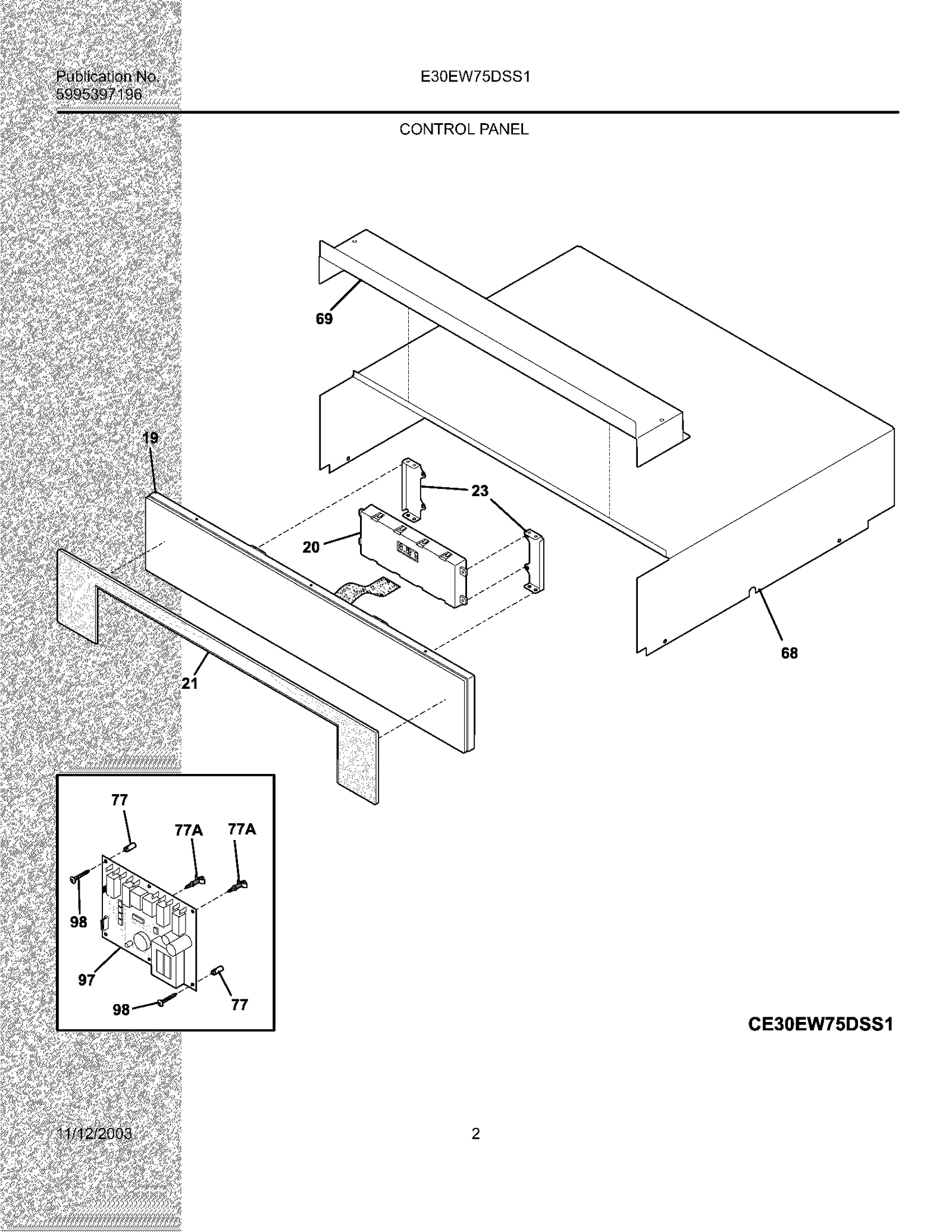

CONTROL PANEL
Parts in CONTROL PANEL
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 |  | 318244804replaces 318244900 Panel,control assy ,glass ,black ,w/membrane | - |
| 20 | | 316272220NLA Controller,electronic ,ES500 | Discontinued |
| 21 | | Panel,glass trim ,stainless | - |
| 23 | – | 318240800 Bracket,timer mtg ,(2) | - |
| 68 | – | 318237200 Housing,top/control | - |
| 69 | – | 318237300 Shield,control | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 | | Relay Board | Discontinued |
| 98 |  | SCREW, 6-20 X 1 1/4 | $5.62 RepairClinic |
| NI |  | Screw,8-18 x 5/16 ,black | $10.94 ApplianceParts Pro |
| NI |  | Screw,6 x 0.375 ,(4) | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
