Model
Electrolux E30EW75EPS3
Wall Oven, Electric, Single, 30 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW75EPS3Wall Oven, Electric, Single, 30 Inch
2 diagrams106 parts
Parts Sections (2)
Diagram

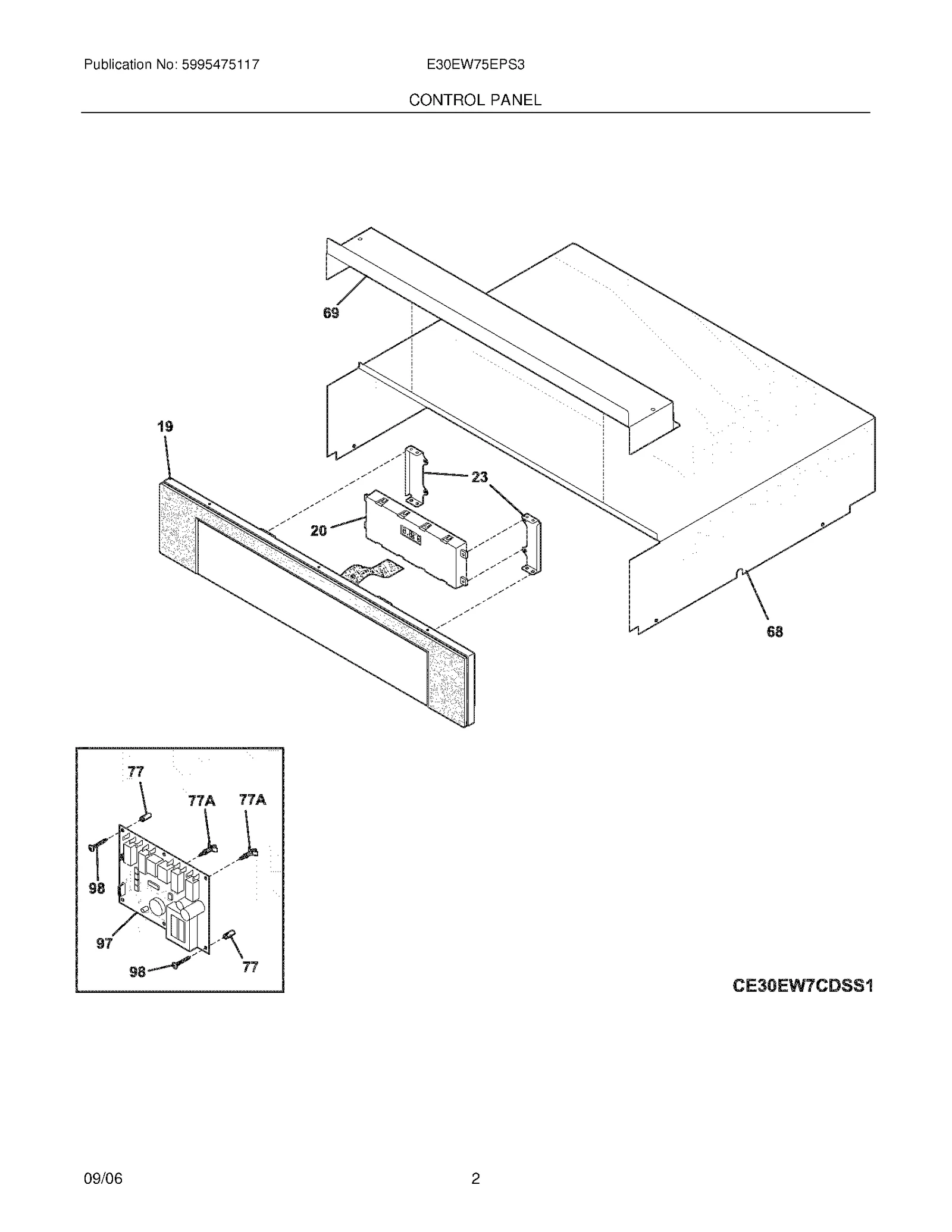

CONTROL PANEL
Parts in CONTROL PANEL
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 |  | Control Panel,assembly ,w/stainless trm | - |
| 20 | | Controller,electronic ,ES500 | - |
| 23 | – | 318240801 Bracket,timer mtg ,(2) | - |
| 68 | – | 318237200 Housing,top/control | - |
| 69 | – | 318237300 Shield,control | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 | | 316278600NLA RELAY BOARD | Discontinued |
| 98 |  | SCREW, 6-20 X 1 1/4 | $5.62 RepairClinic |
| NI |  | Screw,glass holder ,6-20 x 3/8 ,black ,(3) | $9.74 ApplianceParts Pro |
| NI |  | Screw,6 x 0.375 ,(4) | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
