Model
Electrolux E30EW75GPS4
Wall Oven, Electric, Single, 30 Inch
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW75GPS4Wall Oven, Electric, Single, 30 Inch
3 diagrams126 parts
Parts Sections (3)

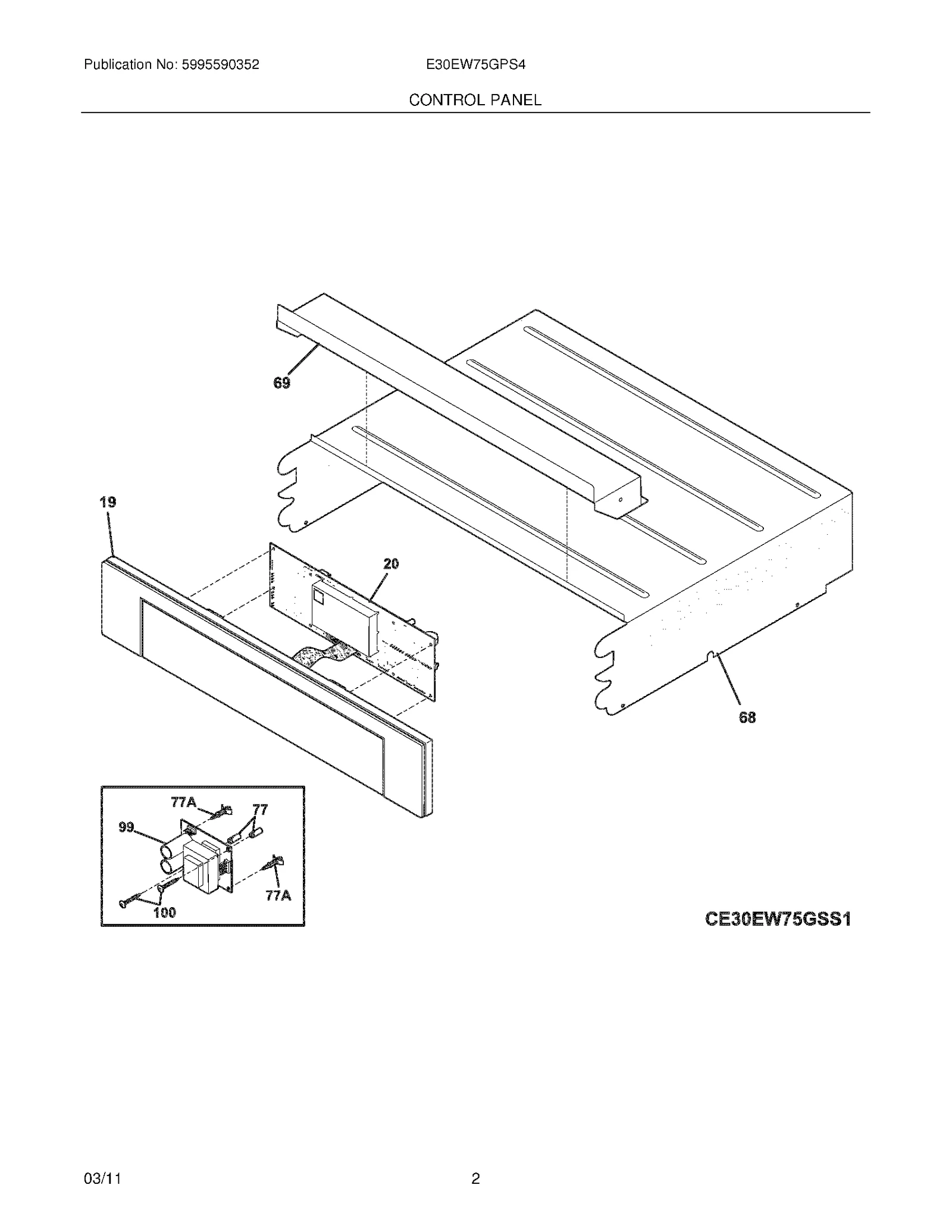

Diagram
CONTROL PANEL
Parts in CONTROL PANEL
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 |  | Control Panel,assembly ,w/stainless trm | - |
| 20 |  | Clock/Timer,electronic ,ES630 | $319.25 ApplianceParts Pro |
| 68 | – | 318237224 Housing,top/control | - |
| 69 | – | 318237320 Shield,control | - |
| 77 |  | Spacer,control ,(4) | - |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 99 |  | BOARD, POWER SUPPLY, 8V, (2) | $213.54 Parts Dr |
| 100 |  | SCREW, 6-20 X 1 1/4 | $5.62 RepairClinic |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI | | Harness,wiring ,communication ,10 connectors | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
