Model
Electrolux E30EW75GSS1
Wall Oven, Electric, Single, 30 Inch
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW75GSS1Wall Oven, Electric, Single, 30 Inch
3 diagrams122 parts
Parts Sections (3)
Diagram

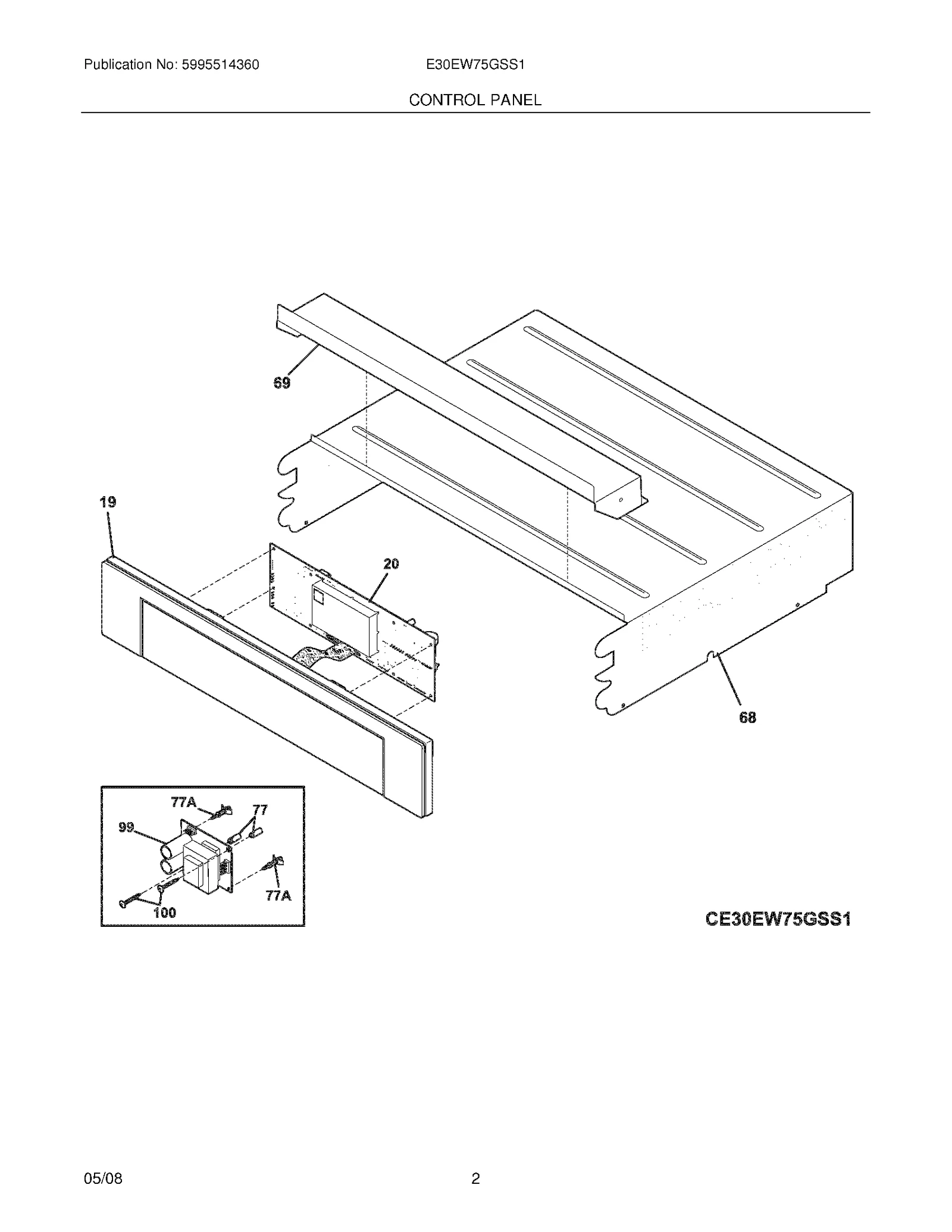

CONTROL PANEL
Parts in CONTROL PANEL
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 | – | 7318244834 Control Panel,assembly ,w/stainless trm | - |
| 20 |  | 316576630replaces 7316516550 Controller,electronic ,ES560W2 | $319.25 ApplianceParts Pro |
| 68 | – | 7318237220 Housing,top/control | - |
| 69 | – | 7318237320 Shield,control | - |
| 77 |  | 316247900replaces 7316247900 Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | 316114100replaces 7316114100 Spacer,(4) | $44.95 ApplianceParts Pro |
| 99 |  | 316535200replaces 7316535200 Board,power supply ,8V ,(2) | $213.54 Parts Dr |
| 100 |  | 5303297477replaces 75303297477 Screw,6-20 x 1 1/4 | $5.62 RepairClinic |
| NI |  | 131892100replaces 7316524400 Screw,control mtg ,6-32 x .25 ,(5) | $7.49 ApplianceParts Pro |
| NI |  | 318532112replaces 7318370342 Wiring Harness,8V power board | - |
| NI |  | 134178901replaces 75303211311 Screw,8 x 0.500 | $8.60 Part Advantage |
