Model
Electrolux E30EW7CEPS3
Wall Oven, Electric, Single, 30 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW7CEPS3Wall Oven, Electric, Single, 30 Inch
2 diagrams113 parts
Parts Sections (2)
Diagram

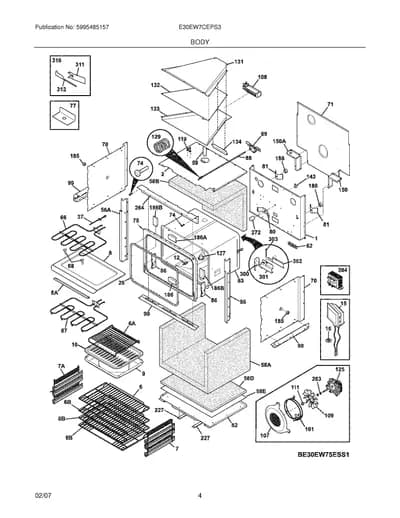

BODY
Parts in BODY
98 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL,MAIN BACK | - |
| 2 | – | 318236400 Shield,oven top | - |
| 6 | | 318240100NLA Shelf,oven ,fixed | Discontinued |
| 6A | | Rack,broiler panOPTIONAL ACCESS0RY | $33.09 Parts Dr |
| 6B | | Shelf,oven ,extendable ,(3) | - |
| 7 | | 318240006NLA Glide & Support assy,oven shelves ,RH | Discontinued |
| 7A | | 318240007NLA Glide & Support assy,oven shelves ,LH | Discontinued |
| 8 | | Cover,element | - |
| 8A | | 318318600NLA Bracket,element ,hidden bake | Discontinued |
| 9 |  | Pan,broilerOPTIONAL ACCESS0RY | - |

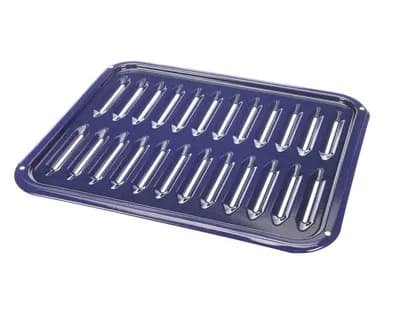

| 10 |  | 316082001replaces 318126401 Insert,broiler panOPTIONAL ACCESS0RY | $35.76 ApplianceParts Pro |
| 12 |  | Switch,oven light ,door frame | $51.53 Part Advantage |
| 15 |  | 318241000NLA Lamp,oven ,(2) ,halogen | Discontinued |
| 16 | | Bushing,halogen lamp ,(8) | - |
| 20 | | GASKET,OVEN DOOR | Discontinued |
| 37 |  | PROBE,OVEN TEMP | $39.67 Part Advantage |
| 56 | – | 318236500 Trim,side ,RH | - |
| 56A | – | 318236501 Trim,side ,LH | - |
| 58A | – | 318133788 Insulation,oven wrapper ,bottom/sides | - |
| 58B | – | 318285052 Insulation,oven wrapper ,top/rear | - |
| 58D | – | 318285054 Insulation,1/2`` thick ,26.75 x 19 | - |
| 58E | – | 318235701 Panel,insulation ,26.75 x 18 ,aluminum | - |
| 59 | | 318072517replaces 318072547 Tube,vent ,oven | - |
| 62 |  | 5304409888replaces 316056000 Terminal Block | $14.73 Part Advantage |
| 66 |  | 318255807replaces 318255800 Element,broil ,4000W | $190.82 Parts Dr |

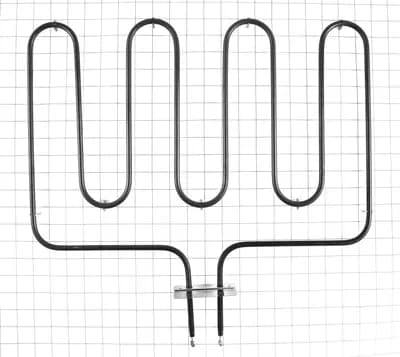

| 67 |  | 318254906replaces 318254901 Element,bake ,3400W ,8 pass | $113.56 Part Advantage |
| 68 |  | Support,hanger ,(2) ,broil element | $13.01 RepairClinic |
| 70 | – | 318236302 Shield,insulation ,(2) | - |
| 71 | – | 318236712 Panel,wire shield | - |
| 74 | | Bumper | - |
| 76 | – | 318056211 FRONT,OVEN | - |
| 77 | – | 318243601 Bracket,stopping | - |
| 80 | | PLATE, OVEN MTG | - |
| 81 |  | SPRING, OVEN | - |
| 82 | – | 318072311 Shield,oven bottom | - |
| 83 | | Liner,oven assy | - |
| 86 |  | 318241406replaces 318241405 Receptacle,hinge ,(2) | - |
| 88 | | 318250203replaces 318250202 Rod,latch ,w/bushing | - |
| 89 | | Motor,latch assy ,w/brkt & switch | - |
| 90 | – | 318236603 Gutter | - |
| 99 | – | 318055427 Support,adjustable ,(2) | - |
| 107 | – | 318219402 COVER,FAN | - |

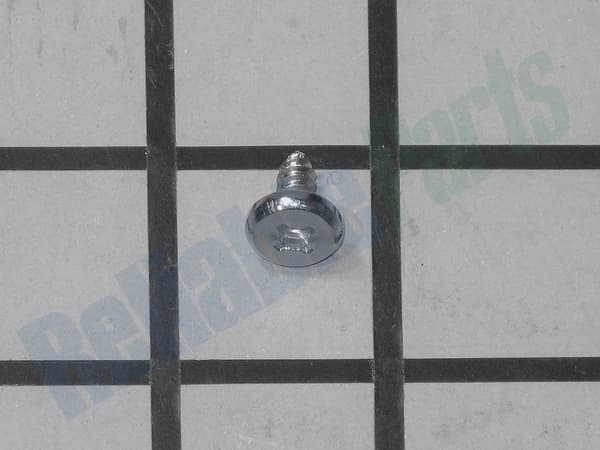

| 107 |  | Screw,8-18 x 13/32`` ,(7) | $5.35 RepairClinic |
| 108 | | Motor,blower | - |
| 109 |  | 318398302replaces 316136400 BLADE, FAN | $13.93 Part Advantage |
| 111 |  | Nut,fan retainer | $11.44 Parts Dr |
| 119 |  | SWITCH-THERMAL, UPPER | $34.86 Part Advantage |
| 125 | | 316136300NLA Motor,fan | Discontinued |
| 125 | | 318142100NLA Washer,motor ,RH ,convection | Discontinued |
| 125 | | INSULATION,OVEN WRAPPER | - |

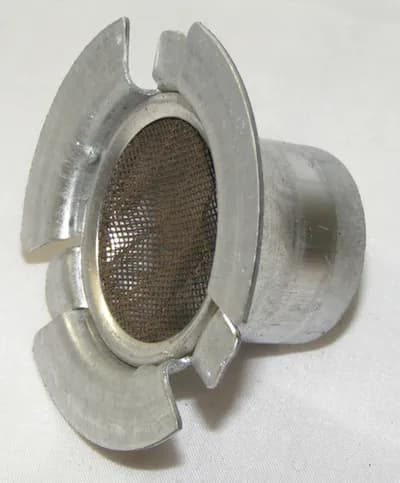

| 127 |  | Adapter Assembly,vent tube ,w/converter | $48.59 Parts Dr |
| 129 |  | Spring | $13.37 ApplianceParts Pro |
| 131 | – | 318237401 Channel,air ,upper | - |
| 132 | – | 318237602 Divider,air channel | - |
| 133 | – | 318237500 Channel,air ,lower | - |
| 134 | – | 318237701 Support,air channel | - |
| 143 |  | Bracket,wire support | - |
| 150 | – | 318072214 Bracket,support ,RH ,access cover | - |

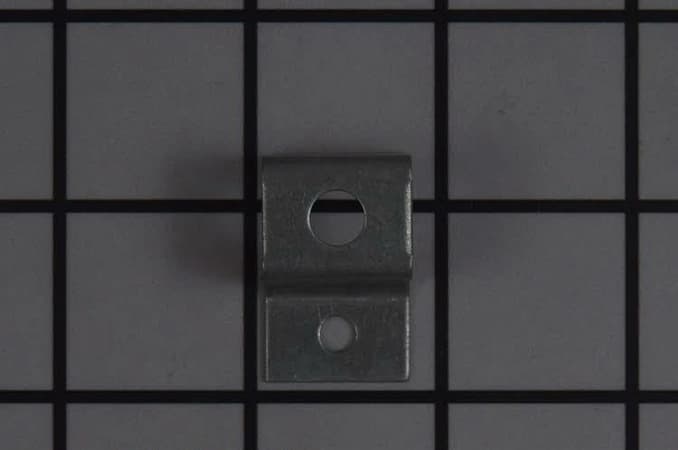

| 150 | – | 318072215 Bracket,support ,LH ,access cover | - |

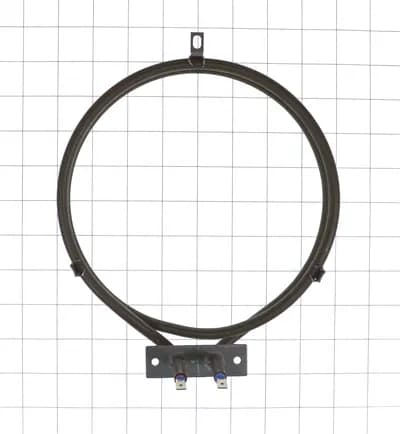

| 161 |  | 318255511replaces 318255502 Element,convection ,2500 W | $76.91 Parts Dr |
| 185 |  | 318531800replaces 318014700 SPACER-OVEN SHIELD (NOT ILLUSTRATED) | $10.30 ApplianceParts Pro |
| 186 | – | 318236900 Bracket,oven ,lower ,(2) | - |
| 186 | – | 318237000 Bracket,oven ,upper | - |
| 186 | | 318237101replaces 318237100 Bracket,oven ,side ,(2) | - |
| 188 |  | 318531702replaces 318014110 SPACER, (6) | - |

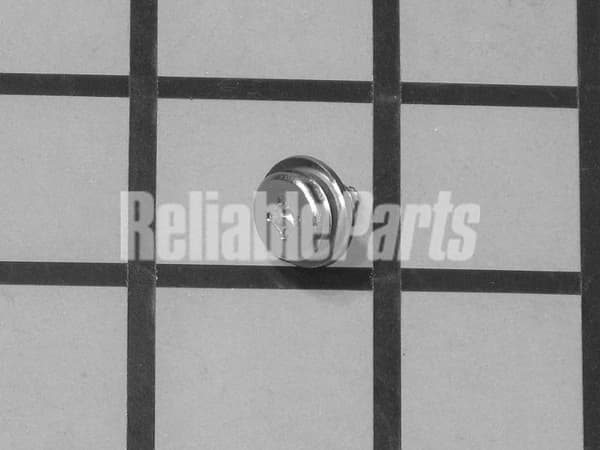

| 188 |  | UC5300807270replaces 3131048 Screw,8 x 5/8 | $1.38 Parts Dr |
| 227 | – | 318240702 Bracket,reinforcement ,(2) | - |
| 263 |  | 316008401replaces 316136500 Washer,fan motor | $9.46 ApplianceParts Pro |
| 264 | – | 318239103 Trim,vent | - |
| 272 | – | 318249400 Tube,protector | - |
| 284 | | Transformer | - |
| 284 | – | 318302000 Spacer,cork & rubber ,(2) | - |
| 300 |  | SWITCH,DOOR,OVEN LIGHT | - |
| 301 | | SUPPORT,TONGUE MTG | - |
| 302 | | Tongue,door switch ,w/plate | - |
| 303 | – | 318228400 Pin,cotter | - |
| 310 | | 5304435864NLA Kit,cabinet mtg ,w/instructions | Discontinued |
| 311 | | ? BRACKET, CABINET, ANTI-TIP | Discontinued |
| 311 |  | ? SCREW, 6 X 1, BLACK | - |
| 312 |  | ? TOOL, OVEN RELEASE, RH KEY | $6.54 Part Advantage |
| 312 |  | ? TOOL, OVEN RELEASE, LH KEY | - |
| NI | – | 318052197 Harness,wiring ,halogen lamp | - |
| NI | – | 5304435874 PLATE, COVERING, PROBE | - |
| NI |  | SHOULDER SCREW, 10-32 X 5/8 | - |
| NI |  | 316205500replaces 5303323144 NUT, 10-32 | $6.56 Part Advantage |
| NI |  | Clip,rod | - |
| NI |  | Screw,6 x 0.375 ,(4) | - |
| NI | | 318120711NLA Switch | Discontinued |
| NI | – | 318078539 Box & wires assy | - |
| NI | | Harness,wiring ,main | - |
| NI | – | 3015722 CLIP-WIRE RETAINER | - |
| NI |  | 5304464772replaces 5303308449 Fastener,wire tie | $8.95 ApplianceParts Pro |
| NI |  | 5304480396replaces 5303323136 SCREW-GROUND | $8.56 ApplianceParts Pro |

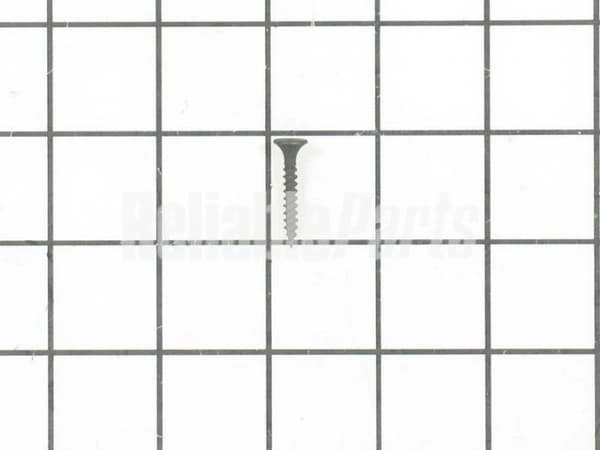

| NI |  | 131243700replaces 08016432 SCREW, TRUSS HEAD, 8-18 X 3/8, (4) (NOT ILLUSTRATED) | $1.96 Part Advantage |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| NI |  | SCREW, 8-18 X 13/32 | - |
| NI |  | SCREW, 8-18 X 1/2, BLACK, (3) | $7.79 Part Advantage |
| NI | | SCREW, 10-32 X 1/4, BLACK, (4) | - |
