Model
Electrolux E30EW85GSS5
Wall Oven, Electric, Double, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW85GSS5Wall Oven, Electric, Double, 30 Inch
4 diagrams132 parts
Parts Sections (4)
Diagram

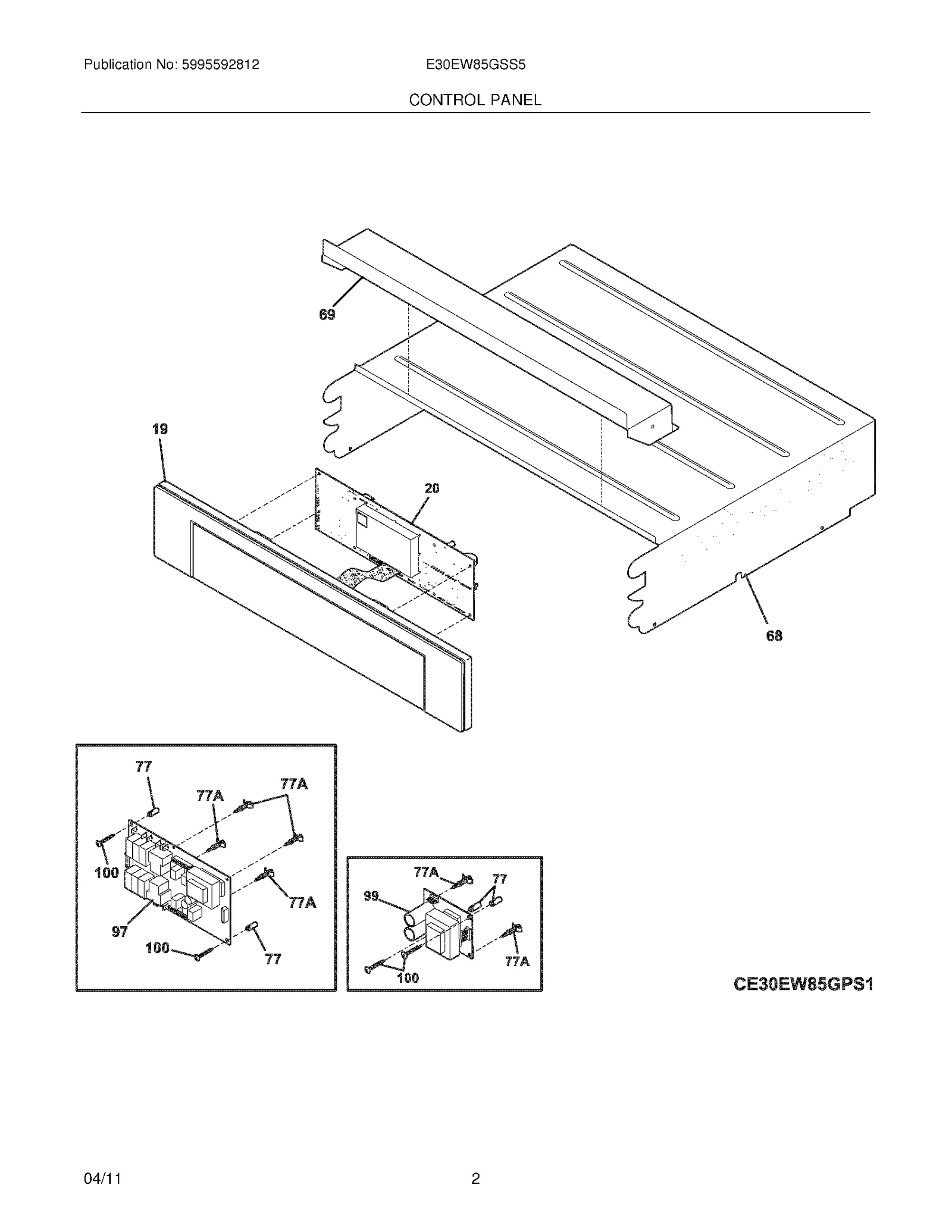

CONTROL PANEL
Parts in CONTROL PANEL
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 |  | Control Panel,assembly ,w/stainless trm | - |
| 20 |  | Controller,electronic ,ES630 | $375.35 ApplianceParts Pro |
| 68 | – | 318237220 Housing,top/control | - |
| 69 | – | 318237320 Shield,control | - |
| 77 |  | Spacer,control ,(4) | - |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 |  | Board,relay ,dual oven | $325.95 ApplianceParts Pro |
| 99 |  | BOARD, POWER SUPPLY, 8V, (2) | $213.54 Parts Dr |
| 100 |  | SCREW, 6-20 X 1 1/4 | $5.62 RepairClinic |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI |  | 318532178replaces 318532113 Harness,wiring ,communication ,13 connectors | $373.70 ApplianceParts Pro |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
