Model
Electrolux E30EW8CEPS1
Wall Oven, Electric, Double, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30EW8CEPS1Wall Oven, Electric, Double, 30 Inch
4 diagrams133 parts
Parts Sections (4)
Diagram

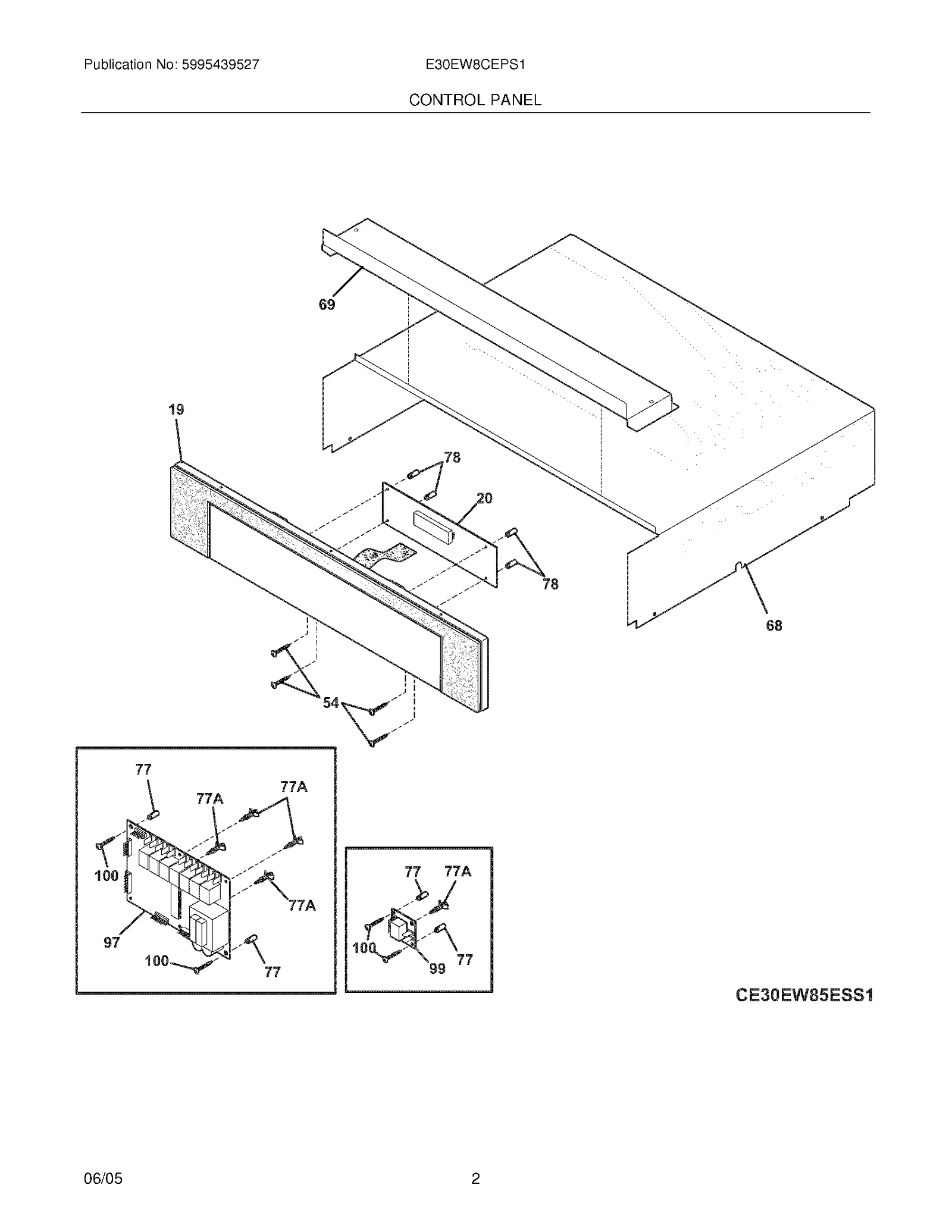

CONTROL PANEL
Parts in CONTROL PANEL
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 | – | 318244814 Control Panel,assembly ,w/stainless trm | - |
| 20 |  | Oven control,electronic ,ES600 | - |
| 54 |  | SCREW, 8-18 X 0.531, DOOR FRAME (NOT ILLUSTRATED) | $7.61 ApplianceParts Pro |
| 68 | – | 318237200 Housing,top/control | - |
| 69 | – | 318237310 Shield,control | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 78 | – | 318293700 Spacer,control panel ,(4) | - |
| 97 | | Relay Board | - |
| 99 | | 316435700NLA Board,power supply | Discontinued |
| 100 |  | SCREW, 6-20 X 1 1/4 | $5.62 RepairClinic |
| NI | | Harness,communication | - |
| NI | – | 318231729 Harness,switch input | - |
| NI | | Harness,probe | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
