Model
Electrolux E30GF74HPS1
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30GF74HPS1Range/Oven, Gas, Freestanding, 30 Inch
5 diagrams209 parts
Parts Sections (5)
Diagram

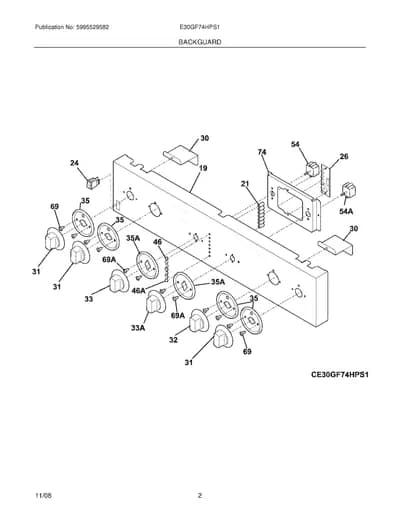

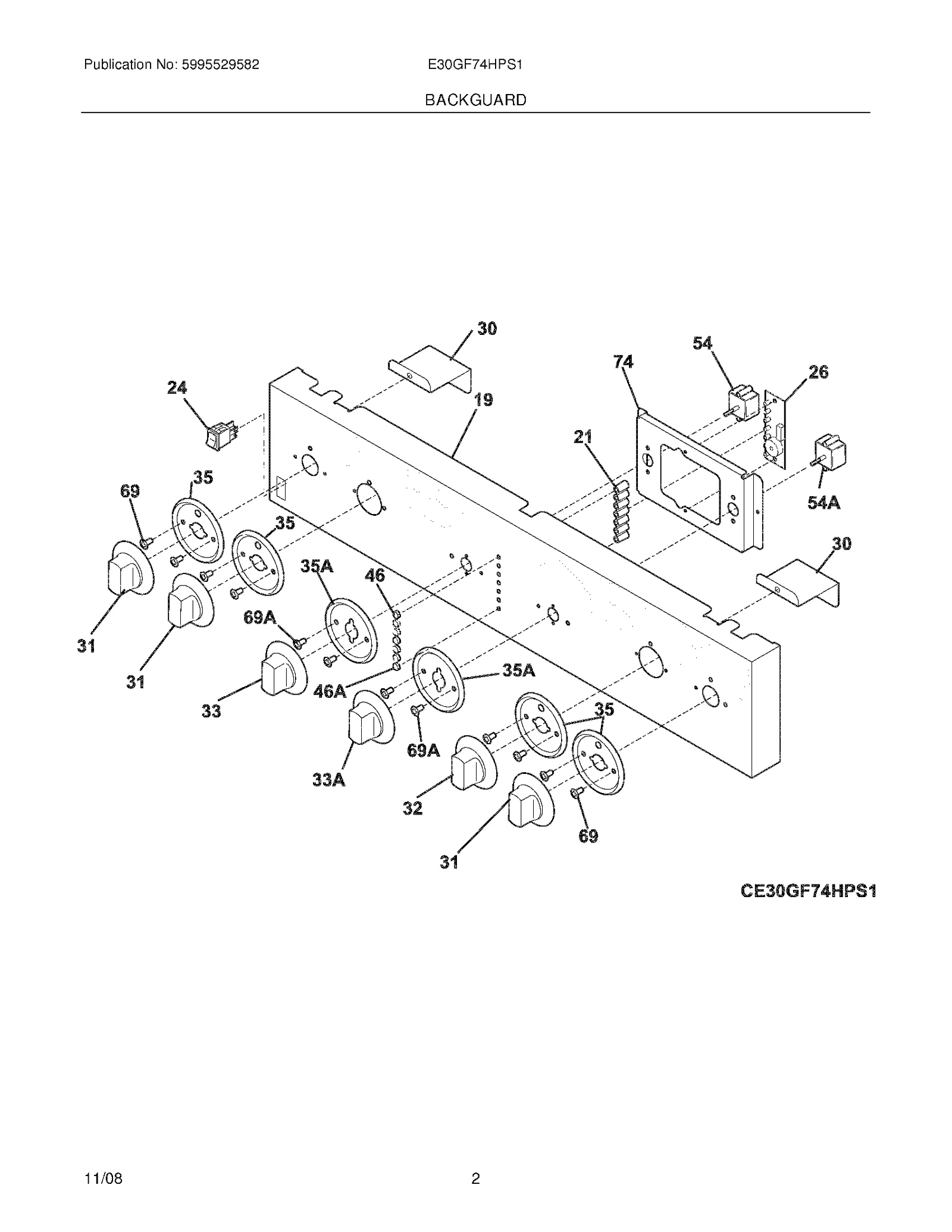

BACKGUARD
Parts in BACKGUARD
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 | – | 7318285722 Panel,control ,stainless | - |
| 21 |  | 318389500replaces 7318389500 Retainer,lens | $14.36 RepairClinic |
| 24 |  | 5308015487replaces 75308015487 Switch,oven light ,rocker | $42.52 ApplianceParts Pro |
| 26 |  | 5304452799replaces 75304452799 Board,indicator light ,(2) ,LED | - |
| 30 | – | 7318377000 Support,control panel ,(2) | - |
| 31 | | 7318242252NLA Knob,control ,stainless ,(5) | Discontinued |
| 32 | | Knob,control ,stainless ,dual | Discontinued |
| 33 |  | 318242230replaces 7318242230 Knob,selector | $89.76 RepairClinic |
| 33A | | 7318242231NLA Knob,control ,oven | Discontinued |
| 35 |  | 318251911replaces 7318251911 Skirt,(4) | $27.32 RepairClinic |
| 35A |  | 318251912replaces 7318251912 Skirt,(2) | - |
| 46 | | 318044501replaces 7318044501 Lens,indicator light ,blue ,(5) | - |
| 46A |  | 318228310replaces 7318228310 Lens,indicator light ,(2) | $6.54 Part Advantage |
| 54 |  | 5304452797replaces 75304452797 Control,oven selector | $225.29 ApplianceParts Pro |
| 54A |  | 5304452798replaces 75304452798 Control,oven temp. | $221.95 ApplianceParts Pro |
| 69 |  | 5303300265replaces 75303300265 Screw,8-18 X 1/2 ,silver ,(4) | $10.70 ApplianceParts Pro |
| 69A | – | 75303311306 Screw,8-18 x 0.375 ,(8) | - |
| 74 | | 318383901replaces 7318383901 Bracket,controls | - |
| NI | – | 7318532143 Harness,wiring ,display/control | - |
| NI | – | 7318532142 Harness,wiring ,relay baord | - |
| NI | | Cleaner,stainless steel | - |
| NI |  | 131243700replaces 708016432 Screw,truss head ,8-18 x 0.375 | $1.96 Part Advantage |
