Model
Electrolux E30IC75FSS3
Cooktop, Induction, 30 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30IC75FSS3Cooktop, Induction, 30 Inch
2 diagrams48 parts
Parts Sections (2)
Diagram

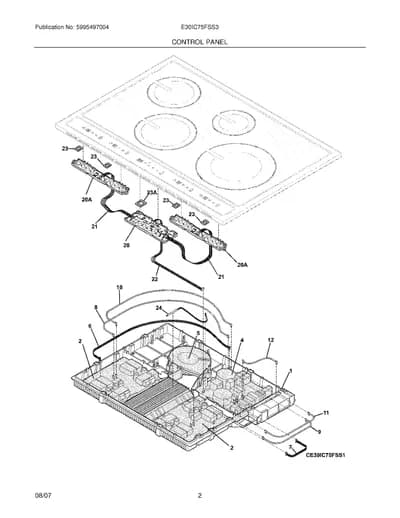

CONTROL PANEL
Parts in CONTROL PANEL
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

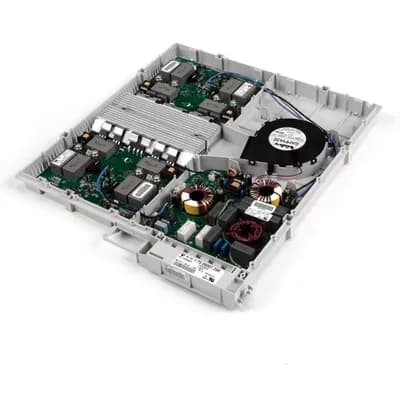

| 1 |  | 318329601replaces 318329600 HOUSING ASSEMBLY, INDUCTION, W/ELECTRONICS | - |
| 2 |  | GENERATOR, CIRCUIT BOARD, (2), 2 ZONE | $654.17 ApplianceParts Pro |
| 4 |  | 5304454971replaces 318347000 Filter,circuit board ,large | $556.95 ApplianceParts Pro |
| 5 |  | 5304454972replaces 318346900 Cooling Fan Assembly,large | - |
| 6 | | 5304458140replaces 318348001 Communication Cable,generator ,18`` ,to filter,X10/X12 | $550.24 ApplianceParts Pro |
| 7 | | 5304458140replaces 318348000 Communication Cable,generator ,6`` ,to filter,X10/X13 | $550.24 ApplianceParts Pro |
| 8 | | 5304458140replaces 318052581 POWER CABLE SET, FILTER, 18", BLACK, TO GENERATOR, X7/X1^POWER CABLE SET, FILTER, 18", BLACK, TO GENERATOR, X7/X1 | $550.24 ApplianceParts Pro |
| 9 | | 5304458140replaces 318052580 POWER CABLE SET, GENERATOR, 6", BLUE, TO FILTER, (2), X1/X8-X1/X55^POWER CABLE SET, GENERATOR, 6", BLUE, TO FILTER, (2), X1/X8-X1/X55 | $550.24 ApplianceParts Pro |
| 10 | | 5304458140replaces 318052582 Power Cable Set,generator ,18`` ,blue ,to filter,X1/X10 | $550.24 ApplianceParts Pro |
| 11 | | 5304458140replaces 318052579 POWER CABLE SET, GENERATOR, 6", BLACK, TO FILTER, X2/X7-X2/X56^POWER CABLE SET, GENERATOR, 6", BLACK, TO FILTER, X2/X7-X2/X56 | $550.24 ApplianceParts Pro |
| 12 | – | 318052578 GROUNG WIRE, X54/6 | - |

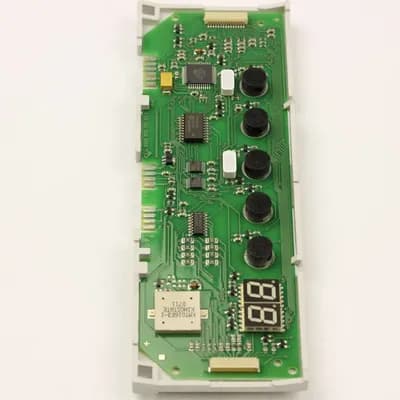

| 20 |  | 318330812replaces 318330813 Touch Control,electronic ,main | - |
| 20A | | 318330712replaces 318330713 Touch Control,cook zone ,(2) ,electronic | - |
| 21 | | 318402405replaces 318083044 Interface Cable,side control ,to center | - |
| 22 | | Communication Cable,center control ,to filter | Discontinued |
| 23 | – | 318368900 Frame,display ,single ,(5) | - |
| 23A | – | 318368910 Frame,display ,double | - |
| 24 | – | 318349900 Thermal Cut-Out,short | - |
| NI | – | 5304457268 WASHER, FLAT, NYLON, (4) | - |
| NI | – | 5304457269 Palnut,No.8-32 ,(6) | - |
| NI | – | 5304457271 Tape,foam ,1/4``x1``x1`` ,(6) | - |
