Model
Electrolux E30IC80ISS1
Cooktop, Induction, 30 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30IC80ISS1Cooktop, Induction, 30 Inch
2 diagrams57 parts

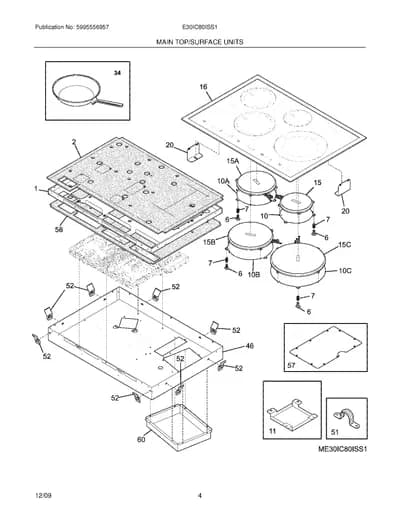

Parts Sections (2)
Diagram

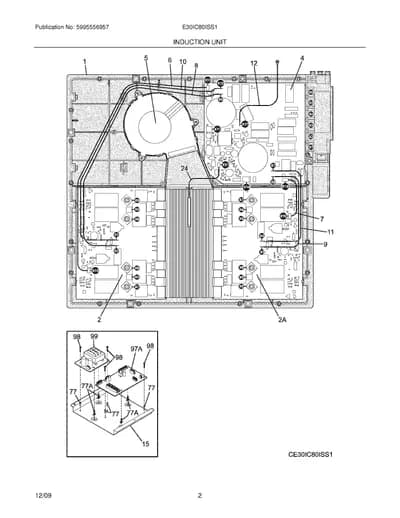

INDUCTION UNIT
Parts in INDUCTION UNIT
27 parts

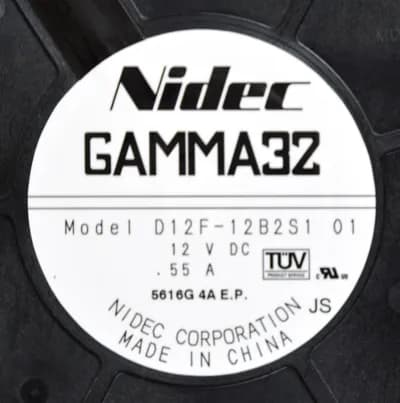

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Housing Assembly,induction ,w/electronics | $751.38 Part Advantage |

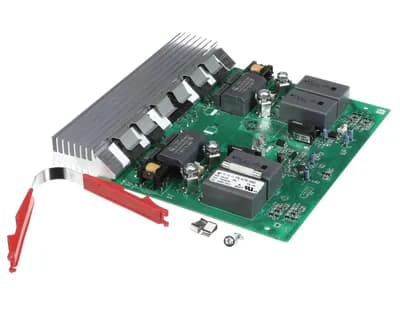

| 2 |  | Generator,circuit board ,left hand ,2 zone | $362.52 RepairClinic |

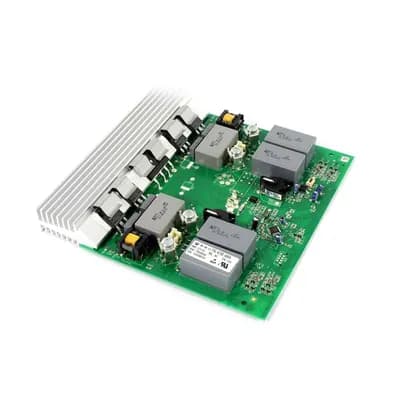

| 2A |  | Generator,circuit board ,right hand ,2 zone | $620.41 Part Advantage |
| 4 |  | 5304454971replaces 318347000 Filter,circuit board ,large | $556.95 ApplianceParts Pro |
| 5 |  | 5304454972replaces 318346900 Cooling Fan Assembly,large | - |
| 6 | | 5304458140replaces 318348001 Communication Cable,generator ,18`` ,to filter,X10/X12 | $550.24 ApplianceParts Pro |
| 7 | | 5304458140replaces 318348000 Communication Cable,generator ,6`` ,to filter,X10/X13 | $550.24 ApplianceParts Pro |
| 8 | | 5304458140replaces 318052581 POWER CABLE SET, FILTER, 18", BLACK, TO GENERATOR, X7/X1^POWER CABLE SET, FILTER, 18", BLACK, TO GENERATOR, X7/X1 | $550.24 ApplianceParts Pro |
| 9 | | 5304458140replaces 318052580 POWER CABLE SET, GENERATOR, 6", BLUE, TO FILTER, (2), X1/X8-X1/X55^POWER CABLE SET, GENERATOR, 6", BLUE, TO FILTER, (2), X1/X8-X1/X55 | $550.24 ApplianceParts Pro |
| 10 | | 5304458140replaces 318052582 Power Cable Set,generator ,18`` ,blue ,to filter,X1/X10 | $550.24 ApplianceParts Pro |
| 11 | | 5304458140replaces 318052579 POWER CABLE SET, GENERATOR, 6", BLACK, TO FILTER, X2/X7-X2/X56^POWER CABLE SET, GENERATOR, 6", BLACK, TO FILTER, X2/X7-X2/X56 | $550.24 ApplianceParts Pro |
| 12 | – | 318532141 Ground wire,5.5`` | - |
| 12 | – | 318052596 Groung Wire,10`` ,X54/6 | - |
| 15 | – | 318537301 Panel,mounting ,boards | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97A | | Board,user interface ,(UIB) | - |
| 98 |  | SCREW, 6-18 X 1, (2) | $4.78 RepairClinic |
| 99 |  | BOARD, POWER SUPPLY | $206.36 Parts Dr |
| NI | – | 318563800 Insulation,generator | - |
| NI |  | 131243700replaces 08016432 SCREW, TRUSS HEAD, 8-18 X 3/8, (4) (NOT ILLUSTRATED) | $1.96 Part Advantage |
| NI | – | 318402355 Harness,wiring ,communication | - |
| NI | | Jumper,electronic ,(2) | - |
| NI | | 708007481replaces 5303325170 NUT, KEPS, 8-32, (2) | - |
| NI |  | UC5300807270replaces 3131048 Screw,8 x 5/8 | $1.38 Parts Dr |
| NI |  | SCREW,GROUND,10-32 X 0.375,NI | - |
| NI |  | Screw,7-19 x 1/2`` ,(11) ,housing ring | - |
