Model
Electrolux E30WD75EPS1
Warmer Drawer
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30WD75EPS1Warmer Drawer
2 diagrams47 parts
Parts Sections (2)
Diagram

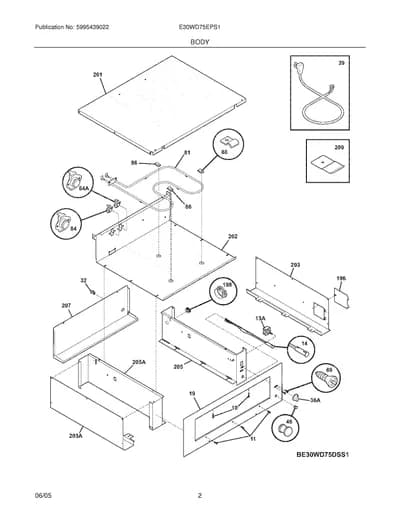

BODY/CONTROLS
Parts in BODY/CONTROLS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | 5304437021 Screw,mounting ,8-18 x 0.25 ,chrome ,(2) | - |
| 11 |  | SCREW, 8-18 X 1/2 (NOT ILLUSTRATED) | $10.70 ApplianceParts Pro |
| 13A |  | 5304508926replaces 316095500 SWITCH-WARMER, INFINITE, DRAWER/ZONE, (2) | $45.53 Part Advantage |
| 14 | – | 318250400 Light,indicator ,blue | - |
| 19 |  | Panel,control ,stainless | - |
| 32 | – | 318228100 STRAIN RELIEF | - |
| 36A |  | KNOB-WARMER,BLACK | - |
| 39 |  | 318144005replaces 318144001 CORD,SERVICE | - |
| 46 | – | 318250500 Lens,indicator light | - |
| 69 |  | 5303288565replaces 5303323134 SCREW, SWITCH MTG., 8-32 X 3/16, (6) (NOT ILLUSTRATED) | $2.70 RepairClinic |
| 81 | – | 318251000 Element,warmer drawer | - |
| 84 | | Thermostat,safety | - |
| 84A |  | Thermostat,safety | - |
| 86 |  | CLIP, HOLD DOWN, WARMER ELEMENT | $9.26 ApplianceParts Pro |
| 196 | – | 318100101 COVER-ACCESS | - |
| 198 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| 201 | – | 318145104 Wrapper,outer | - |
| 202 | – | 318121602 WRAPPER,LOWER | - |
| 203 | – | 318025711 Bracket,side panel ,RH | - |
| 203 | – | 318025701 Bracket,side panel ,LH | - |
| 205 | – | 318123711 Panel,side ,RH | - |
| 205 | – | 318123701 Panel,side ,LH | - |
| 207 | – | 318143601 Panel,wire cover | - |
| 209 | | 318247402replaces 318247401 BRACKET,WALL | $9.63 RepairClinic |
| 209 |  | SCREW,10-16X1-1/8 ,SQUARE DRIVE | - |
| NI | – | 318199730 Wiring Harness | - |
| NI | – | 08067961 FASTENER-POWER CORD | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| NI |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| NI |  | SCREW,GROUND,10-32 X 0.375,NI | - |
