Model
Electrolux E30WD75EPS3
Warmer Drawer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30WD75EPS3Warmer Drawer
1 diagram15 parts
Parts Sections (1)
Diagram

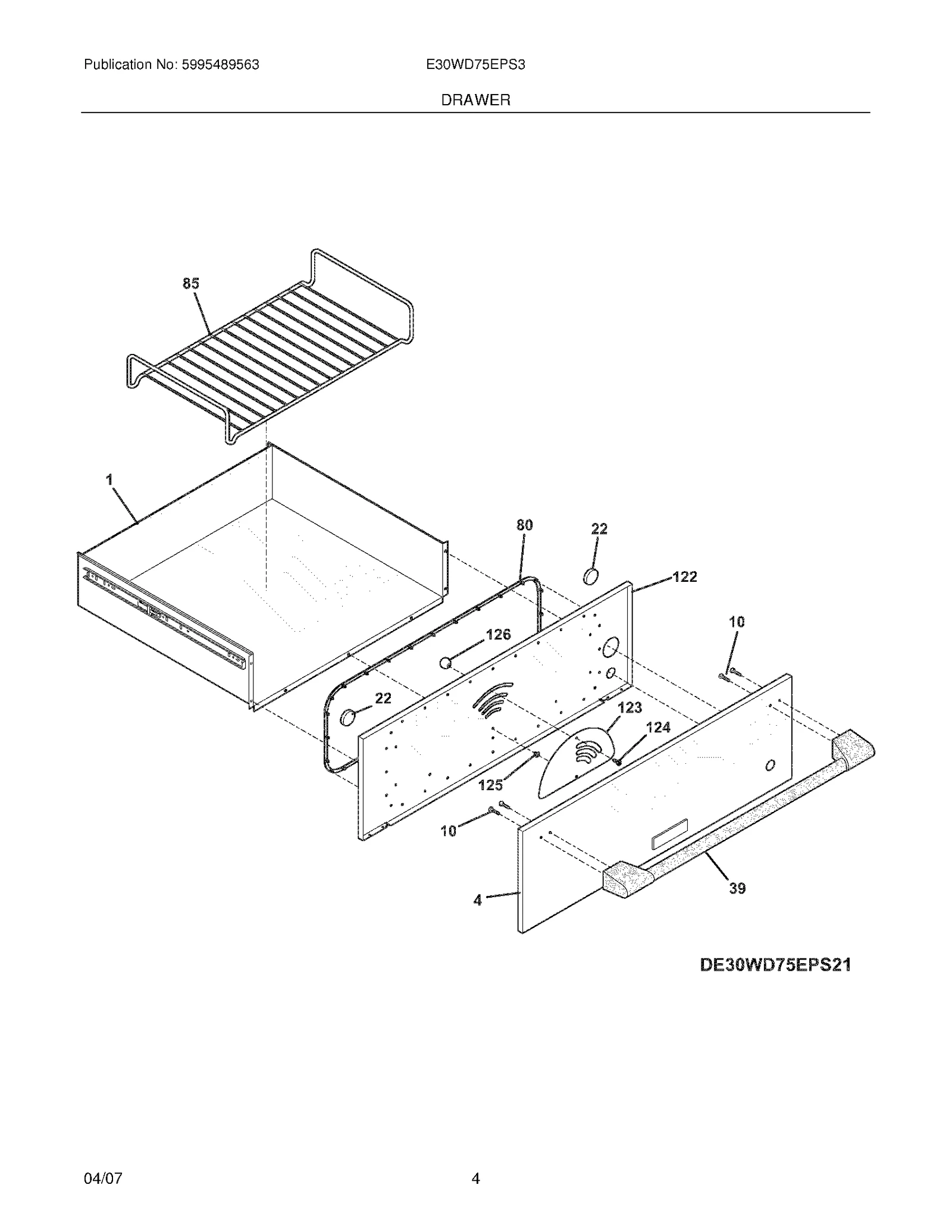

DRAWER
Parts in DRAWER
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Drawer,warmer ,w/track | - |
| 4 | – | 318284012 Panel,drawer front ,stainless ,w/nameplate | - |
| 10 | | Screw,No.6-32 x 3/4 ,(4) | $3.06 RepairClinic |
| 22 | – | 318339700 BUMPER, BASE, (2) | - |
| 39 | | 318392423replaces 241637918 Handle Assembly,stainless ,w/endcaps | - |
| 80 | | GASKET,WARMER DRAWER | - |
| 85 |  | 807328301replaces 318345600 Rack,warmer drawer | $47.00 Parts Dr |
| 122 | – | 318281620 Panel,drawer ,interior | - |
| 123 | – | 318247100 Panel,control ,humidity | - |
| 124 |  | Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box | $12.95 ApplianceParts Pro |
| 125 | | RIVET | - |

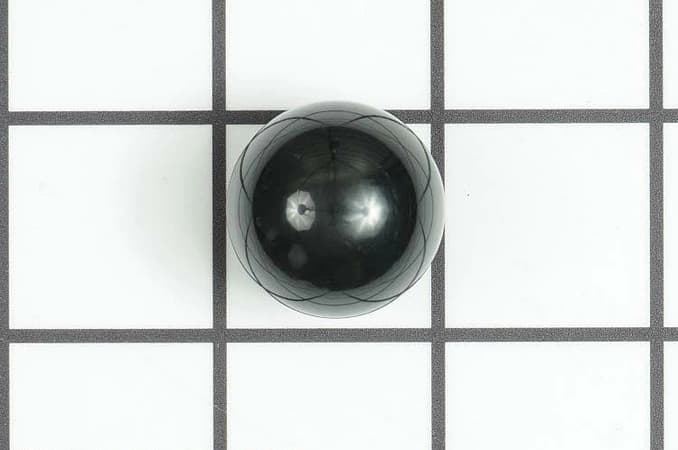

| 126 |  | HANDLE, CONTROL, HUMIDITY | - |
| NI | – | 5303323175 Adhesive tape,1`` lg. | - |
| NI |  | 5304447555replaces 5304447922 Washer,flat ,(4) | $5.91 RepairClinic |
| NI | | Cleaner,stainless steel | - |
