Model
Electrolux E30WD75GPS3
Warmer Drawer
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E30WD75GPS3Warmer Drawer
2 diagrams52 parts
Parts Sections (2)
Diagram

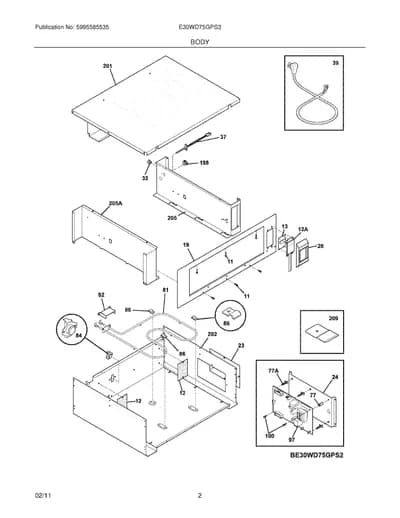

BODY
Parts in BODY
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | SCREW, 8-18 X 1/2 (NOT ILLUSTRATED) | $10.70 ApplianceParts Pro |
| 12 |  | BUMPER, ABSORBER, FELT, (2) | - |
| 13 |  | BOARD, DISPLAY | - |
| 13A |  | BRACKET ASSEMBLY, DISPLAY BOARD, W/OVERLAY | - |
| 19 | – | 318246913 Panel,control ,stainless | - |
| 20 | – | 318390200 BOX, DISPLAY | - |
| 23 | – | 318310109 Panel,service | - |
| 24 |  | BRACKET, MOUNTING | - |
| 32 | – | 318228100 STRAIN RELIEF | - |
| 37 |  | 5304504897replaces 318562500 SENSOR, OVEN TEMP PROBE | $24.59 Part Advantage |
| 39 |  | CORD, SERVICE | - |
| 77 |  | Spacer,control ,(4) | - |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 81 |  | ELEMENT, WARMER DRAWER | - |
| 82 | – | 318388600 Guard,element | - |
| 84 | | 318005114NLA THERMOSTAT, SAFETY | Discontinued |
| 86 |  | CLIP, HOLD DOWN, WARMER ELEMENT | $9.26 ApplianceParts Pro |
| 97 |  | BOARD, CONTROL, DISPLAY REALY | $183.23 ApplianceParts Pro |
| 100 |  | 5303297477replaces 5304400427 SCREW, 6-20 X 1/2, (8) | $5.62 RepairClinic |
| 198 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| 201 | | WRAPPER, UPPER | - |
| 202 | – | 318281021 Wrapper,lower | - |
| 205 | – | 318281215 Panel,side ,black ,RH | - |
| 205 | – | 318281315 Panel,side ,black ,LH | - |
| 209 | | Bracket,wall | $9.63 RepairClinic |
| 209 | | Screw,No.10-16 x 1 1/4 ,(5) | - |
| NI | – | 318388001 Plate,anti friction ,felt | - |
| NI | – | 5304464950 Screw,No.6 - 32 x 5/16 ,(4) | - |
| NI | – | 318531900 CLIP, (3) | - |
| NI | – | 5304467464 Screw,8-18 x 5/16 ,(6) ,box mtg. | - |
| NI | | 5304522502replaces 318199788 Wiring Harness,main | - |
| NI | | WIRING HARNESS, COMMUNICATION | - |
| NI | | SHIELD, WIRE | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| NI |  | 5304480396replaces 5303311306 Screw,8-18 x 0.375 | $8.56 ApplianceParts Pro |
