Model
Electrolux E32AF75FPS3
Freezer, Upright, W/Ice Maker
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E32AF75FPS3Freezer, Upright, W/Ice Maker
4 diagrams170 parts
Parts Sections (4)

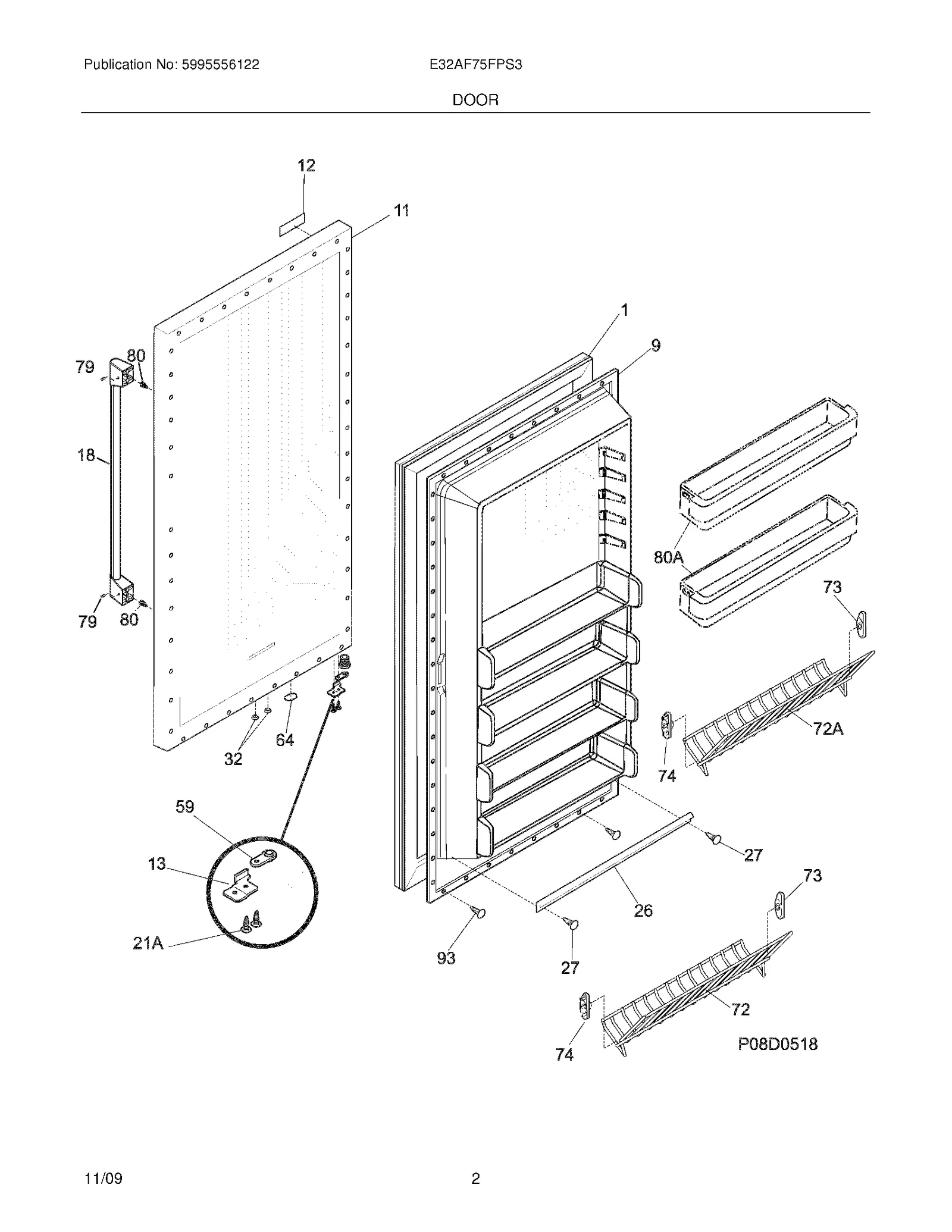

Diagram
DOOR
Parts in DOOR
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304507200replaces 216522309 GASKET-DOOR,WHITE | $100.84 Part Advantage |
| 9 |  | Panel-inner door,frzr | - |
| 11 | | 297316549replaces 216526572 Panel-outer door,stainless steel ,LH | - |
| 12 |  | Label,nameplate ,elux/icon | - |
| 13 | | 216974400NLA Door Stop | Discontinued |
| 18 | – | 241637912 Handle Assembly,stainless ,w/endcaps | - |
| 21A | | 5304460608NLA Screw,flat head ,No.1/4-20 ,door stop/hng | Discontinued |
| 26 |  | 216524201replaces 216524200 GASKET,SECONDARY | $33.73 Parts Dr |
| 27 |  | 5303922007replaces 5303212828 Clip,panel mtg | $45.89 Parts Dr |
| 32 | | 5309950074NLA Valve,breather ,door base | Discontinued |
| 59 |  | 216974500NLA Bearing,door closer | Discontinued |
| 64 | | PLUG-BUTTON, HOLE FILLER, DOOR BASE | $44.65 ApplianceParts Pro |
| 72 | | 297118100NLA Shelf,tilt out ,wire ,(2) | Discontinued |
| 72A | | Shelf,tiltout ,short ,wire ,(2) | - |
| 73 |  | End Cap,shelf ,LH ,(2) ,tilt-out | $50.56 PartSelect |
| 74 |  | End Cap,shelf ,RH ,(2) ,tilt-out | - |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| 80A | | Bin-door,adjustable ,(2) | - |
| 93 |  | 216858001replaces 5304460605 Screw,ph truss head ,8-18AB x 0.500 | $9.94 ApplianceParts Pro |
| NI |  | Wrench,allen | Discontinued |
| NI |  | Clip,panel mtg kit ,(40) | $71.47 Part Advantage |
