Model
Electrolux E32AF75GTT0
Freezer, Upright, W/Ice Maker
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E32AF75GTT0Freezer, Upright, W/Ice Maker
4 diagrams164 parts
Parts Sections (4)

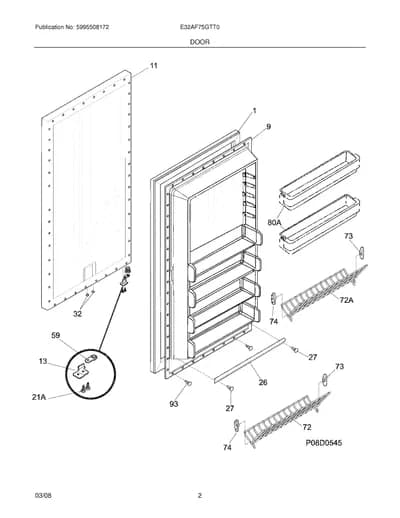

Diagram
DOOR
Parts in DOOR
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304507200replaces 7216522309 Gasket-door,white | $100.84 Part Advantage |
| 9 | – | 7216527902 Panel-inner door,frzr | - |
| 11 | – | 7216526588 Panel-outer door,LH ,white | - |
| 13 | – | 7297194300 Door Stop,LH | - |
| 21A |  | Screw,flat head ,No.1/4-20 ,door stop/hng | - |
| 26 |  | 216524201replaces 7216524200 Gasket,secondary | $33.73 Parts Dr |
| 27 |  | 5303922007replaces 75303212828 Clip,panel mtg | $45.89 Parts Dr |
| 32 | – | 75309950074 Valve,breather | - |
| 59 |  | Bearing,door closer | Discontinued |
| 72 | – | 7297118100 Shelf,tilt out ,wire ,(2) | - |
| 72A | – | 7297118200 Shelf,tiltout ,short ,wire ,(2) | - |
| 73 |  | 216513900replaces 7216513900 End Cap,shelf ,LH ,(2) ,tilt-out | $50.56 PartSelect |
| 74 |  | 216514000replaces 7216514000 End Cap,shelf ,RH ,(2) ,tilt-out | - |
| 80A | – | 7216514300 Bin-door,adjustable ,(2) | - |
| 93 |  | 216858001replaces 75304460605 Screw,ph truss head ,8-18AB x 0.500 | $9.94 ApplianceParts Pro |
| NI | – | 7297176200 Bracket,retainer ,btm | - |
| NI |  | 5304406520replaces 75304406520 Clip,panel mtg kit ,(40) | $71.47 Part Advantage |
