Model
Electrolux E36DF76EPS
Range/Oven, Dual Fuel, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E36DF76EPSRange/Oven, Dual Fuel, Freestanding, 36 Inch
5 diagrams128 parts
Parts Sections (5)
Diagram

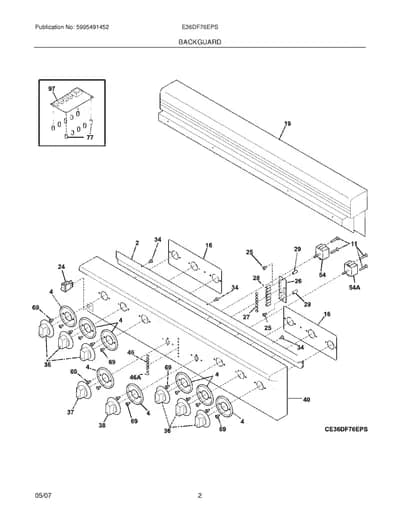

BACKGUARD
Parts in BACKGUARD
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 5304452785 Support,spill tray ,front | - |
| 4 |  | 5304446031NLA Bezel,burner knob ,(4) | Discontinued |
| 11 | – | 5304452790 Screw,pan ,6/32 x 1/2 | - |
| 16 | – | 5304452788 Panel,mounting ,(2) | - |
| 19 | – | 5304452787 Panel,backguard | - |
| 24 | | Switch,rocker | - |
| 25 | – | 5304446272 Screw,phil hd ,No.8-32 x 1/4 ,(8) | - |
| 26 |  | BOARD, INDICATOR LIGHT, (2), LED | - |
| 27 | – | 5304452786 Reatiner,lens | - |
| 28 | – | 5304452796 Tubing,indicator light | - |
| 29 | – | 5304452793 Spacer,light board | - |
| 34 | | Screw,No.8 x .375`` | - |
| 36 | | 5304452800NLA Knob,top burner | Discontinued |
| 37 | | 5304452801NLA Knob,oven selector | Discontinued |
| 38 | | 5304452802NLA Knob,oven temp. | Discontinued |
| 40 | | Panel,control ,stainless | - |
| 46 | – | 5304452795 Lens,indicator light ,blue | - |
| 46A | – | 5304452805 Lens,indicator light ,red | - |
| 54 |  | CONTROL, OVEN SELECTOR | $225.29 ApplianceParts Pro |
| 54A |  | CONTROL, OVEN TEMP. | $221.95 ApplianceParts Pro |
| 69 | – | 5304452792 Screw,mounting | - |
| 77 | – | 5304452791 Support,control board | - |
| 97 |  | Board,control | - |
| NI | | Harness,wiring ,oven controls | - |
| NI | | Harness,wiring ,indicator light | - |
