Model
Electrolux E36EC65ESS2
Cooktop, Electric, 36 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E36EC65ESS2Cooktop, Electric, 36 Inch
2 diagrams53 parts
Parts Sections (2)
Diagram

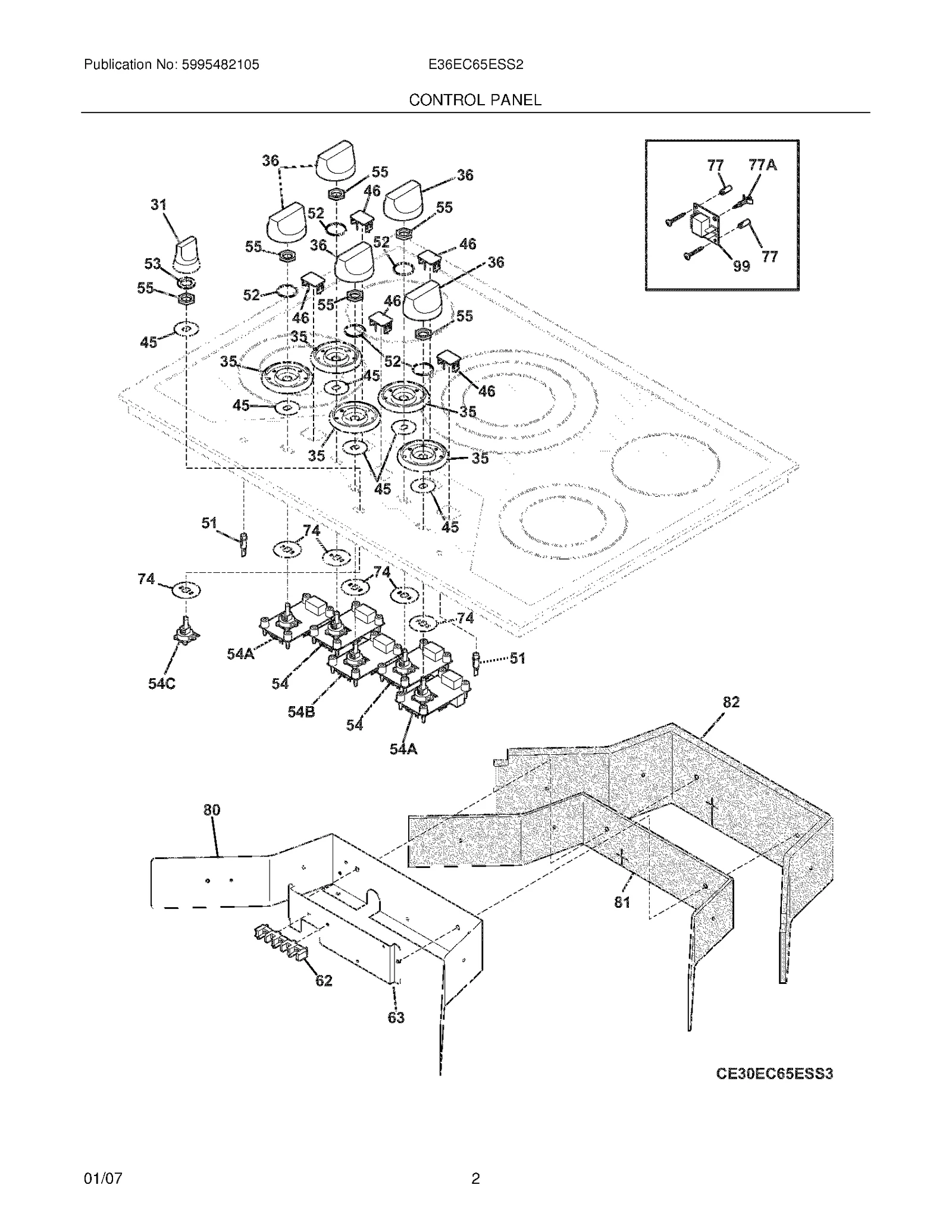

CONTROL PANEL
Parts in CONTROL PANEL
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 31 |  | 318314705replaces 318314700 Knob,selector ,black | - |

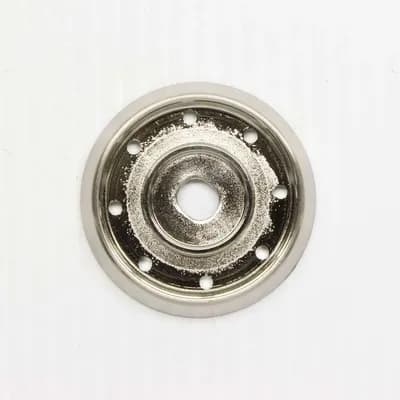

| 35 |  | 318251904replaces 318251903 Skirt,(5) | - |
| 36 | | 318319101NLA Knob,control ,black ,(5) | Discontinued |
| 45 |  | BUSHING, CONTROL, (4) | $11.77 ApplianceParts Pro |
| 46 |  | Lens,indicator light ,green ,(5) | - |
| 51 |  | Light,indicator ,blue ,(2) | - |
| 52 |  | Gasket,o`ring ,(5) | - |
| 53 | – | 318339200 Washer,flat ,nylon | - |

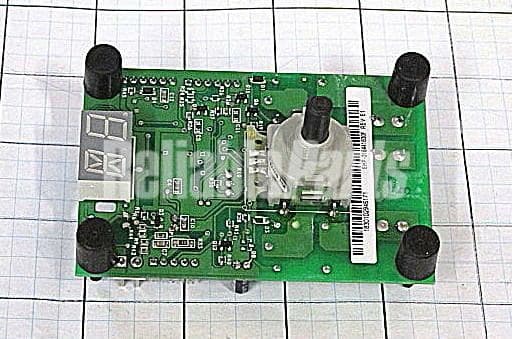

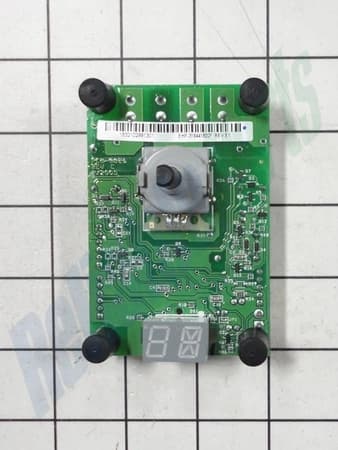

| 54 |  | Control,electronic ,single element ,(2) | - |
| 54A | | 316441831NLA Control,electronic ,dual element ,(2) ,w/potentiometer | Discontinued |
| 54B |  | Control,electronic ,triple element ,w/potentiometer | - |
| 54C | | 318310000NLA Switch,selector | Discontinued |
| 55 |  | Nut,mounting | $12.95 ApplianceParts Pro |
| 62 |  | 5304409888replaces 316056000 Terminal Block | $14.73 Part Advantage |
| 63 | – | 318310600 Bracket,terminal block | - |
| 74 | | Bushing,switch | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 80 | – | 318303401 Deflector,switch | - |
| 81 | – | 318106052 Insulation,w/aluminum foil | - |
| 82 | – | 318366900 Insulation | - |
| 99 |  | BOARD, POWER SUPPLY | $206.36 Parts Dr |
| NI | | Cleaner,stainless steel | - |
| NI |  | 5304464772replaces 5303308449 Fastener,wire tie | $8.95 ApplianceParts Pro |
| NI |  | 5304480396replaces 5303311306 Screw,8-18 x 0.375 | $8.56 ApplianceParts Pro |
| NI | – | 318083038 Harness,wiring ,to controls | - |
