Model
Electrolux E36EC70FSS1
Cooktop, Electric, 36 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E36EC70FSS1Cooktop, Electric, 36 Inch
2 diagrams44 parts
Parts Sections (2)
Diagram

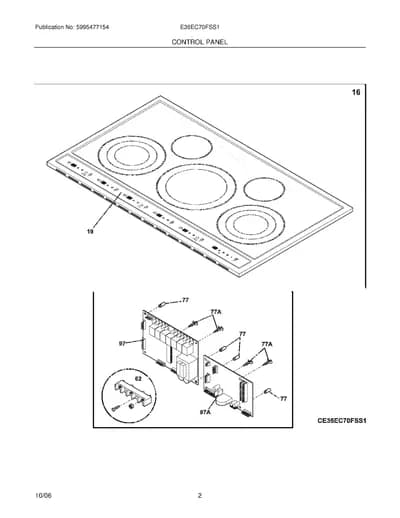

CONTROLS
Parts in CONTROLS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 16 |  | Main Top Assy,glass/steel ,black/stainless,w/touch control | - |
| 19 | | Panel Assembly,glass ,w/controls | - |
| 62 |  | 5304409888replaces 316056000 Terminal Block | $14.73 Part Advantage |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 | | 316442113NLA BOARD, POWER, RELAY | Discontinued |
| 97A | | 316575411replaces 316442042 Board,power ,UIB | - |
| NI |  | 316205500replaces 5303323144 NUT, 10-32 | $6.56 Part Advantage |
| NI |  | SHOULDER SCREW, 10-32 X 5/8 | - |
| NI | – | 318078557 Box & wires assy | - |
| NI | | Harness,wiring ,interface | - |
| NI |  | RETAINER, WIRING | - |
