Model
Electrolux E36EC75DSS2
Cooktop, Electric, 36 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E36EC75DSS2Cooktop, Electric, 36 Inch
2 diagrams35 parts
Parts Sections (2)
Diagram

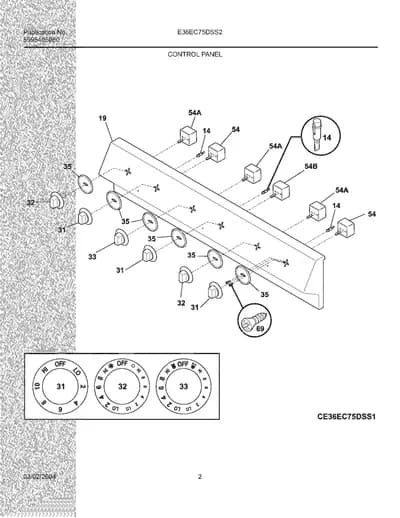

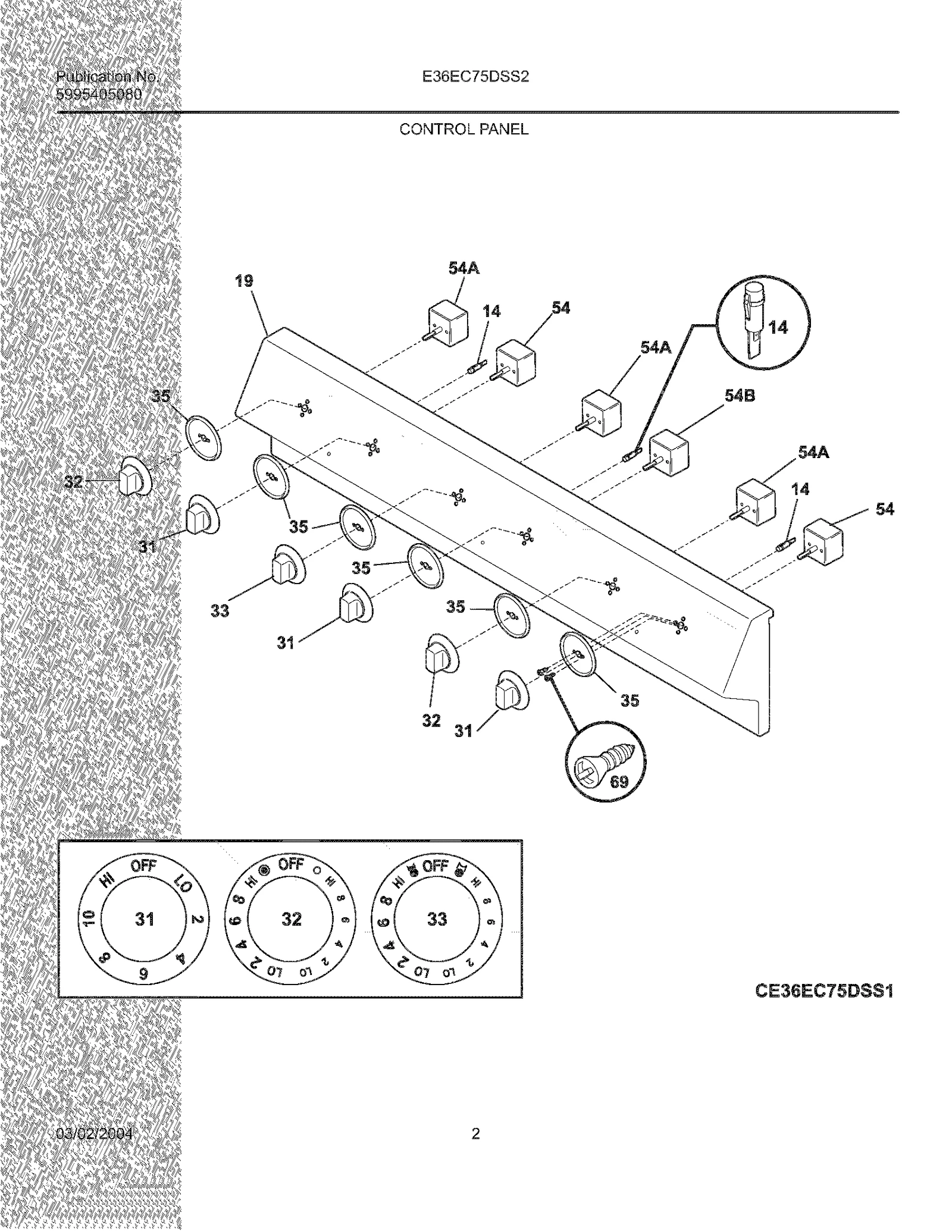

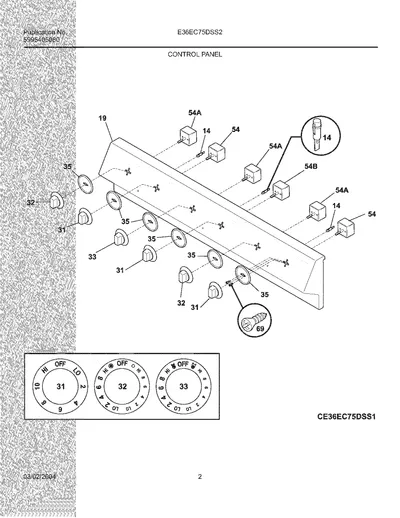

CONTROL PANEL
Parts in CONTROL PANEL
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 14 | – | 318250400 Light,indicator ,blue | - |
| 19 |  | 318234909replaces 318234901 Panel,control ,stainless | - |
| 31 | | Knob,control | - |
| 32 | | 318242202NLA Knob,control ,dual | Discontinued |
| 33 | | 318242201NLA Knob,control ,dual | Discontinued |
| 35 | – | 318251900 Skirt,(6) | - |
| 54 |  | 318293818replaces 318220074 Switch,surface unit ,small | $47.83 Part Advantage |
| 54A |  | Switch,infinite ,dual | $59.51 Parts Dr |
| 54B |  | 318293819replaces 318220076 Switch,surface unit | $79.80 PartSelect |
| 69 |  | 5303323137replaces 5303305528 SCREW, SWITCH MTG, (2) (NOT ILLUSTRATED) | $8.39 ApplianceParts Pro |
