Model
Electrolux E36GC76EPS
Cooktop, Gas, 36 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E36GC76EPSCooktop, Gas, 36 Inch
2 diagrams43 parts
Parts Sections (2)
Diagram

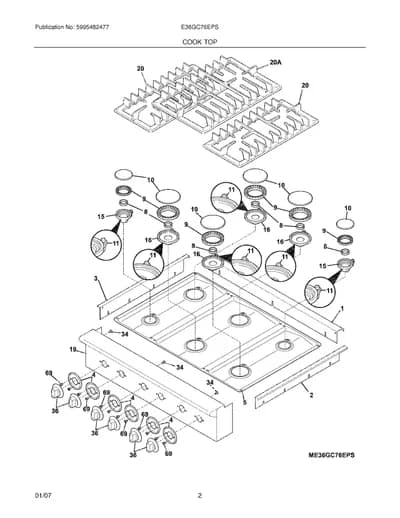

MAINTOP/CONTROLS
Parts in MAINTOP/CONTROLS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Trim,rear | - |
| 2 | | Trim,side ,RH | - |
| 3 | | Trim,side ,LH | - |
| 4 | | 5304446031NLA Bezel,burner knob ,(4) | Discontinued |
| 5 | | Maintop,spill tray | - |
| 8 | | Nut,burner head ,brass ,(4) | - |
| 9 | | Rings,burner ,set of 6 | - |
| 10 | | Caps,burner ,set of 6 | - |
| 11 | | 5304453979NLA Ignitor Assembly,burner ,w/jacket | Discontinued |
| 15 | | 5304452825NLA Burner Head Assy,``B`` ,8500 BTU ,w/ignitor | Discontinued |
| 16 | | 5304452826NLA Burner Head Assy,``D`` ,14000 BTU ,w/ignitor | Discontinued |
| 19 | | Panel,control ,stainless | - |
| 20 | | 5304452879NLA Grate,burner ,10`` ,(2) | Discontinued |
| 20A | | Grate,burner ,14`` | - |
| 34 | | Screw,No.8 x .375`` | - |
| 36 | | 5304452800NLA Knob,top burner | Discontinued |
| 69 | – | 5304452792 Screw,mounting | - |
| NI | | Jacket,ignitor wire ,(4) | - |
| NI | – | 5304454005 Mounting Kit,to cabinet | - |
