Model
Electrolux E36GF76JPS1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E36GF76JPS1Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams227 parts
Parts Sections (5)
Diagram

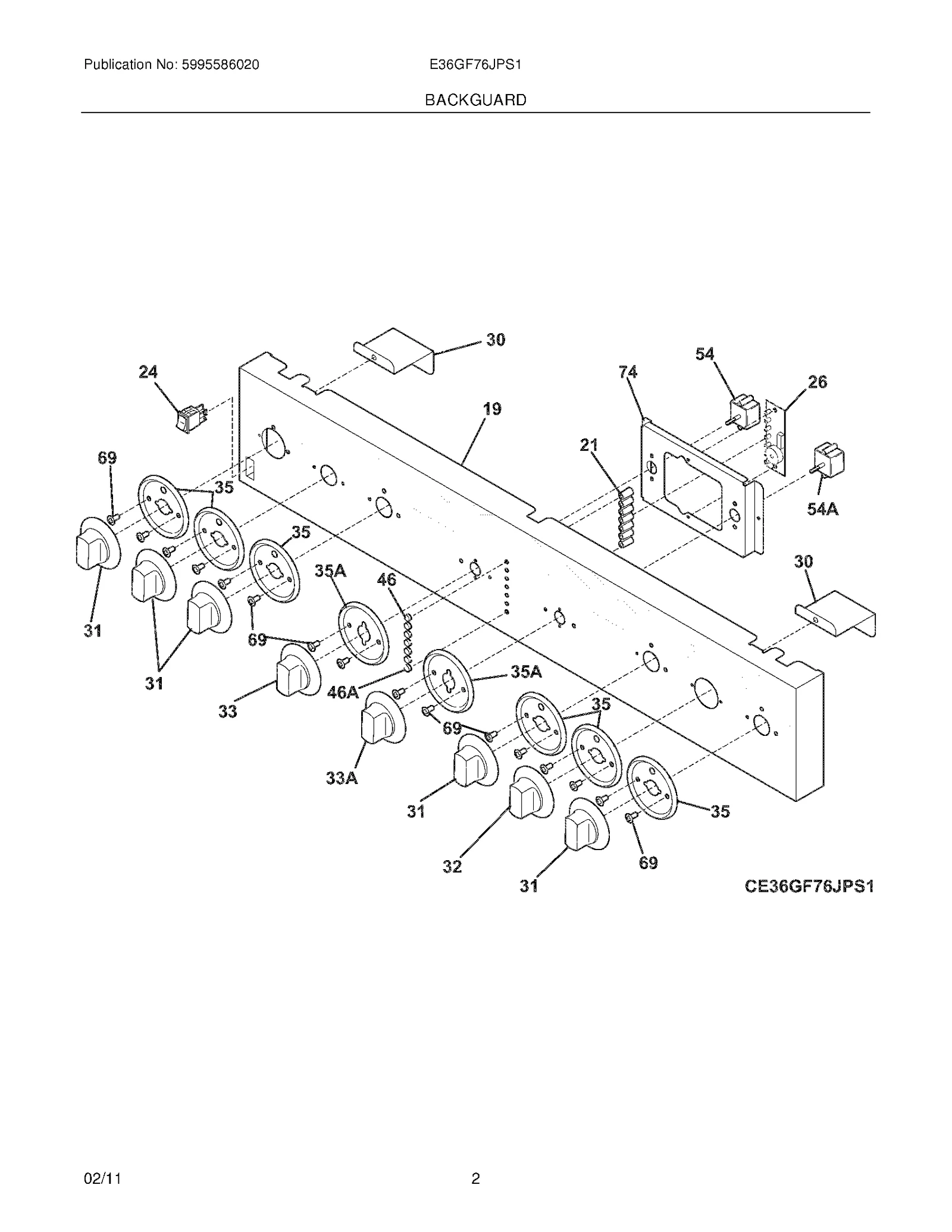

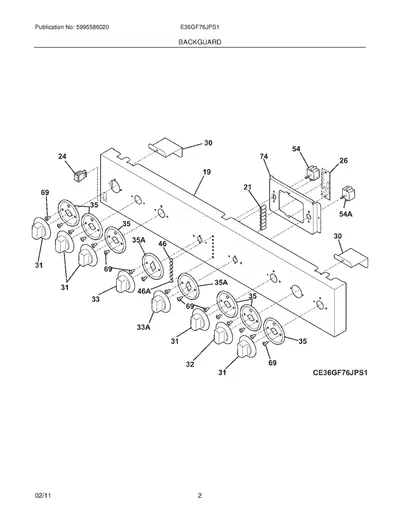

BACKGUARD
Parts in BACKGUARD
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 |  | Panel,control ,stainless | - |
| 21 | | RETAINER, LENS | $14.36 RepairClinic |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 26 |  | BOARD, INDICATOR LIGHT, (2), LED | - |
| 30 | – | 318377000 SUPPORT, CONTROL PANEL, (2) | - |
| 31 | | 318242252NLA Knob,control ,stainless ,(4) | Discontinued |
| 32 | | 318242253NLA Knob,control ,stainless ,dual ,(2) | Discontinued |
| 33 |  | KNOB, OVEN SELECTOR, STAINLESS | $89.76 RepairClinic |
| 33A | | Knob,control ,oven | - |
| 35 |  | SKIRT, (4) | $27.32 RepairClinic |
| 35A |  | SKIRT, OVEN KNOB | - |
| 46 | | LENS, INDICATOR LIGHT, BLUE, (5) | - |
| 46A |  | LENS, INDICATOR LIGHT, (2) | $6.54 Part Advantage |
| 54 |  | CONTROL, OVEN SELECTOR | $225.29 ApplianceParts Pro |
| 54A |  | CONTROL, OVEN TEMP. | $221.95 ApplianceParts Pro |
| 69 |  | SCREW, 8-18 X 1/2 (NOT ILLUSTRATED) | $10.70 ApplianceParts Pro |
| 74 | | BRACKET, CONTROLS | - |
| NI | – | 318532143 Harness,wiring ,display/control | - |
| NI | – | 318532142 Harness,wiring ,relay baord | - |
| NI | | Cleaner,stainless steel | - |
